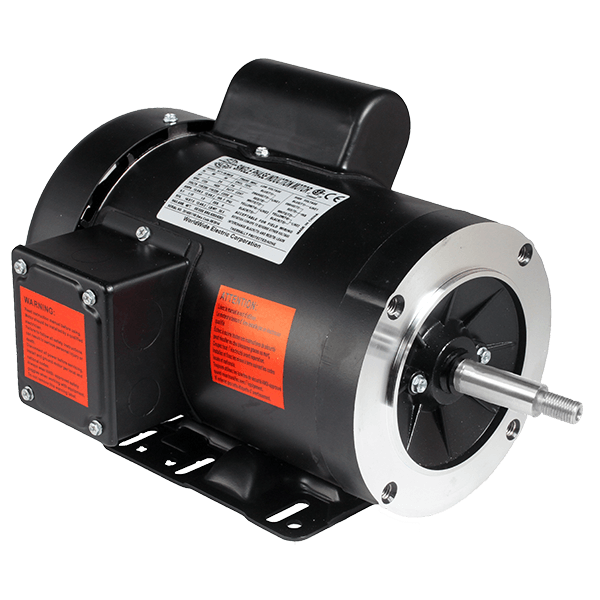

Jet Pump Motor, 1 HP, 3600 RPM, 115/230V, 56J Frame, C-Face With Removable Base 230V 60HZ Single Phase 1 HP 56°C

WorldWide ElectricSKU: NTJ1-36-56JB

Price:
Sale price$267.24
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Jet Pump Motor - 1 HP

Upgrade your pumping system with the WorldWide Electric Jet Pump Motor, featuring a powerful 1 HP output and a robust 3600 RPM speed. Designed for efficiency and durability, this motor operates on a voltage range of 115/230V and is perfect for various applications requiring reliable performance.

This TEFC (Totally Enclosed Fan Cooled) motor is built with a rolled steel construction, ensuring longevity and resistance to environmental factors. The 56C frame and C-face removable base mounting make installation straightforward, while the threaded shaft allows for easy coupling to your existing pump system.

With a standard efficiency rating and a service factor of 1.15, this motor is engineered to meet the demands of your pumping needs. Whether you're replacing an old motor or upgrading your system, the NTJ 1 HP Jet Pump Motor is a reliable choice.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and don’t hesitate to reach out if you need help locating the right item.

SKU: NTJ1-36-56JB

Category Electric Motors
Subcategory Jet Pump Motors
Approximate Weight (lbs) 29
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 69.0
Frame Size 56J
Frequency 60/50 HZ*
Full Load Amps 5.7
Horsepower 1
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Single-Phase
RPM 3600
Service Factor 1.15
Shaft Type Threaded Shaft
Voltage 115/230

Motor Curves
