Jet Pump Motor, 1.5 HP, 3600 RPM, 230/460V, 56C Frame, C-Face With Removable Base 460V 60HZ Three Phase 1.5 HP 56°C

WorldWide ElectricSKU: NATJE1.5-36-56CB

Price:
Sale price$303.39
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

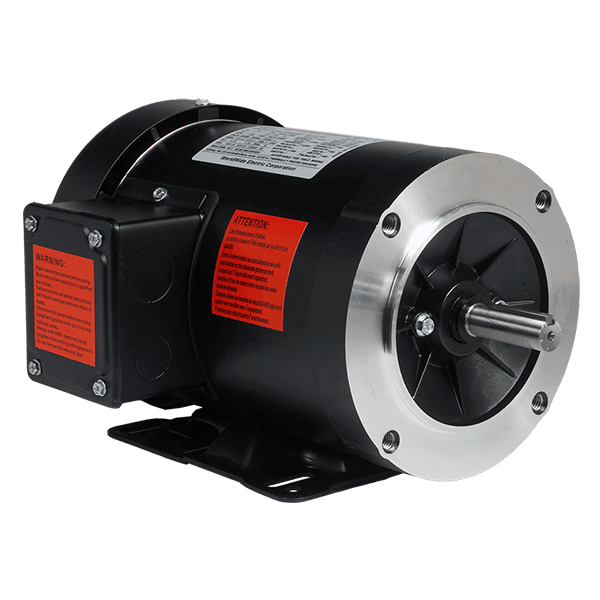

WorldWide Electric Jet Pump Motor - 1.5 HP

Introducing the NATJE 1.5 HP Jet Pump Motor from WorldWide Electric, designed for high performance and reliability. This robust motor operates at 3600 RPM and is suitable for 3-phase applications with a voltage range of 208-230/460V. With a 1.15 service factor, this motor ensures optimal efficiency and durability.

Key features include:

  • 56C Frame for versatile mounting options
  • Totally Enclosed Fan Cooled (TEFC) design for enhanced protection
  • Constructed from rolled steel for added strength
  • Premium efficiency for reduced energy consumption
  • C-Face with removable base for easy installation
  • Keyed shaft for secure coupling

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and don’t hesitate to reach out if you need help locating the right item.

Upgrade your pumping system with the reliable and efficient NATJE 1.5 HP Jet Pump Motor today!

Supplier Part Number 8501.52.4000
Category Electric Motors
Subcategory Jet Pump Motors
Approximate Weight (lbs) 31
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 84.0
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 1.98
Horsepower 1.5
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Shaft Type Keyed Shaft
Voltage 230/460
