Jet Pump Motor, 0.75 HP, 3600 RPM, 230/460V, 56C Frame, C-Face With Removable Base 460V 60HZ Three Phase 75 HP 56°C

WorldWide ElectricSKU: NATJ34-36-56CB

Price:
Sale price$219.73
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

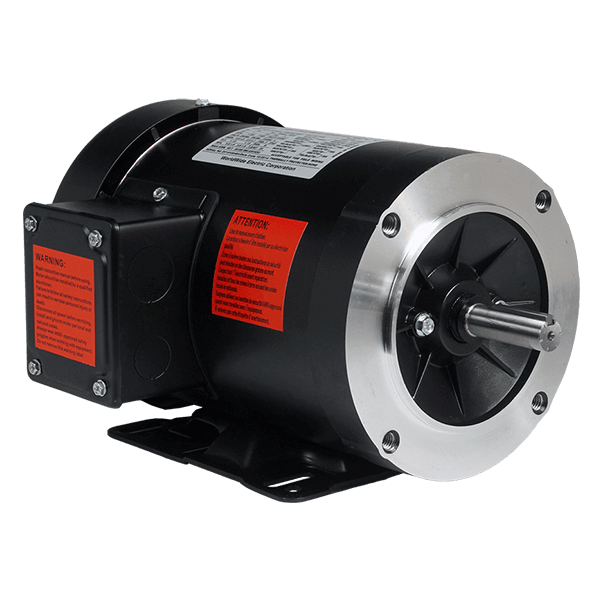

WorldWide Electric Jet Pump Motor - 0.75 HP

Introducing the WorldWide Electric Jet Pump Motor, a reliable and efficient solution for your pumping needs. With a power rating of 0.75 HP and a speed of 3600 RPM, this motor is designed for optimal performance in various applications. It operates on a 230/460V three-phase power supply at 60 Hz, making it versatile for different setups.

This motor features a 56C frame and a totally enclosed fan-cooled (TEFC) design, ensuring durability and protection against environmental factors. The removable base allows for easy installation and maintenance, while the keyed shaft provides secure coupling to your pump.

Constructed from rolled steel, this jet pump motor offers standard efficiency, making it a cost-effective choice for your pumping applications. Whether you are replacing an old motor or upgrading your system, the WorldWide Electric Jet Pump Motor is a trusted option.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility. If you’re having trouble finding the right item, our team is here to help!

SKU: NATJ34-36-56CB

Supplier Part Number 8501.51.4040
Category Electric Motors
Subcategory Jet Pump Motors
Approximate Weight (lbs) 22
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 67.0
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 1.2
Horsepower 0.75
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Shaft Type Keyed Shaft
Voltage 230/460

Motor Curves
