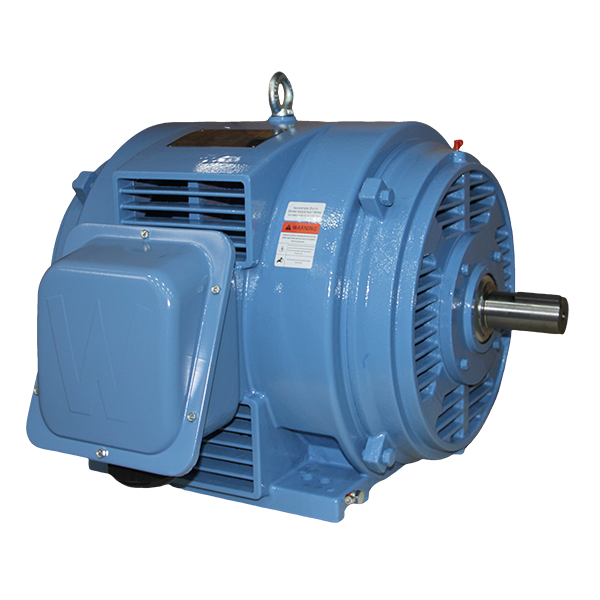

General Purpose Motor, ODP, 40 HP, 1200 RPM, 230/460V, 364T Frame, Rigid Base 460V 60HZ Three Phase 40 HP Cast Iron

Worldwide ElectricSKU: ODP40-12-364T

Price:
Sale price$3,356.76
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Cast Iron

The WorldWide Electric ODP40-12-364T (Cast Iron) for WorldWide Electric pump systems.

Part Specifications
Part Number ODP40-12-364T
Material Cast Iron
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Supplier Part Number 8501.52.8040
Category Electric Motors
Subcategory Open Drip Proof Motors
Approximate Weight (lbs) 706
Degree of Protection IP23
Enclosure Type ODP
Frame Size 364T
Frequency 60/50 HZ*
Horsepower 40
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 1200
Service Factor 1.15
Voltage 230/460
