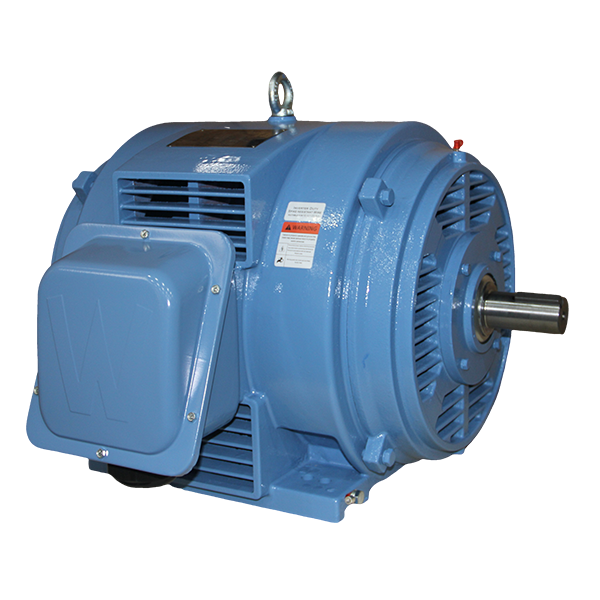

Image shown may not be actual product
General Purpose Motor, ODP, 150 HP, 3600 RPM, 230/460V, 405TS Frame, Rigid Base
Roll over image to zoom in Click on image to zoom
General Purpose Motor, ODP, 150 HP, 3600 RPM, 230/460V, 405TS Frame, Rigid Base
WorldWide Electric Motors

General Purpose Motor, ODP, 150 HP, 3600 RPM, 230/460V, 405TS Frame, Rigid Base 460V 60HZ Three Phase 150 HP Cast Iron

Worldwide ElectricSKU: ODP150-36-405TS
Price:
$6,956.73

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Cast Iron

The WorldWide Electric ODP150-36-405TS (Cast Iron) for WorldWide Electric pump systems.

Part Specifications
Part Number ODP150-36-405TS
Material Cast Iron
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Category
Electric Motors
Subcategory
Open Drip Proof Motors
Approximate Weight (lbs)
1165
Degree of Protection
IP23
Duty Cycle
S1 / Continuous
Enclosure Type
ODP
FL Efficiency (%)
94.1
Frame Size
405TS
Frequency
60/50 HZ*
Horsepower
150
Insulation Class
Class F
Mounting Type
Rigid Base
NEMA Code Letter
F
Phase
Three-Phase
Poles
2
RPM
3600
Service Factor
1.15
Voltage
230/460
