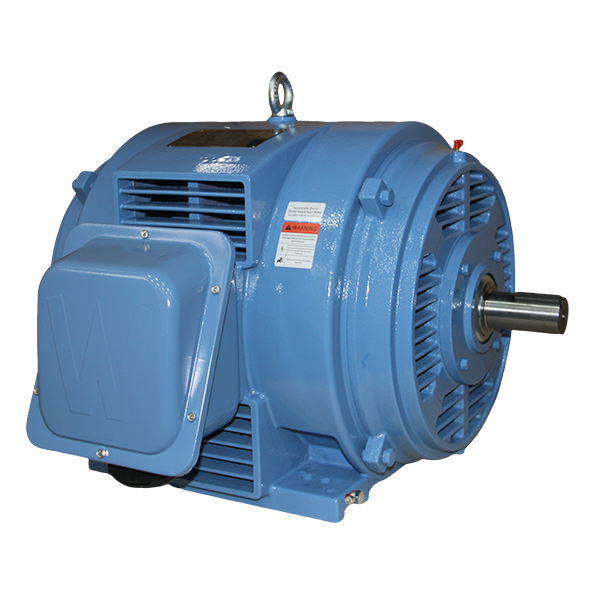

General Purpose Motor, ODP, 100 HP, 3600 RPM, 230/460V, 365TS Frame, Rigid Base 460V 60HZ Three Phase 100 HP Cast Iron

WorldWide ElectricSKU: ODP100-36-365TS

Price:
Sale price$4,294.56
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric General Purpose Motors:

ODP 100 HP 3600 RPM 3 PH 60 Hz 208-230/460V 1.15 SF 365TS FRAME, ODP, GENERAL PURPOSE MOTOR, CAST IRON, PREMIUM EFFICIENCY, RIGID MOUNTING

Supplier Part Number 8501.52.8040
Category Electric Motors
Subcategory Open Drip Proof Motors
Approximate Weight (lbs) 817
Degree of Protection IP23
Enclosure Type ODP
FL Efficiency (%) 93.6
Frame Size 365TS
Frequency 60/50 HZ*
Full Load Amps 111.5
Horsepower 100
Insulation Class Class F
Mounting Type Rigid Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Voltage 230/460

Motor Curves
