Image shown may not be actual product

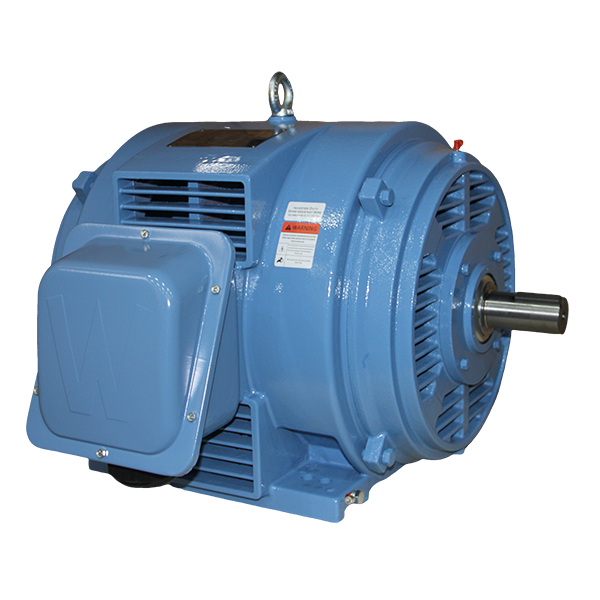

General Purpose Motor, ODP, 100 HP, 1800 RPM, 230/460V, 404TS Frame, Rigid Base
Roll over image to zoom in Click on image to zoom
General Purpose Motor, ODP, 100 HP, 1800 RPM, 230/460V, 404TS Frame, Rigid Base
WorldWide Electric Motors

General Purpose Motor, ODP, 100 HP, 1800 RPM, 230/460V, 404TS Frame, Rigid Base 460V 60HZ Three Phase 100 HP Cast Iron

Worldwide ElectricSKU: ODP100-18-404TS
Price:
$5,053.55

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component
Cast Iron

The WorldWide Electric ODP100-18-404TS (Cast Iron) for WorldWide Electric pump systems.

Part Specifications
Part Number ODP100-18-404TS
Material Cast Iron
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Supplier Part Number
8501.52.8040
Category
Electric Motors
Subcategory
Open Drip Proof Motors
Approximate Weight (lbs)
1043
Degree of Protection
IP23
Enclosure Type
ODP
FL Efficiency (%)
95.4
Frame Size
404TS
Frequency
60/50 HZ*
Full Load Amps
115.3
Horsepower
100
Insulation Class
Class F
Mounting Type
Rigid Base
Phase
Three-Phase
RPM
1800
Service Factor
1.15
Voltage
230/460
