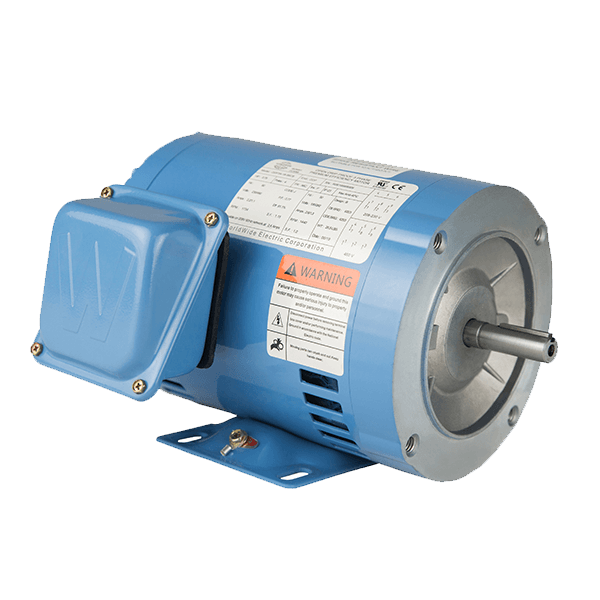

General Purpose Motor, ODP, 0.75 HP, 1800 RPM, 230/460V, 56C Frame, C-Face with Removable Base
Roll over image to zoom in Click on image to zoom
General Purpose Motor, ODP, 0.75 HP, 1800 RPM, 230/460V, 56C Frame, C-Face with Removable Base
WorldWide Electric Motors

General Purpose Motor, ODP, 0.75 HP, 1800 RPM, 230/460V, 56C Frame, C-Face With Removable Base 460V 60HZ Three Phase 75 HP

Worldwide ElectricSKU: ODP34-18-56CB
Price:
$244.39

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component

The WorldWide Electric ODP34-18-56CB for WorldWide Electric pump systems.

Part Specifications
Part Number ODP34-18-56CB
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Supplier Part Number
8501.51.4040
Category
Electric Motors
Subcategory
Open Drip Proof Motors
Approximate Weight (lbs)
27
Degree of Protection
IP23
Enclosure Type
ODP
FL Efficiency (%)
81.1
Frame Size
56C
Frequency
60/50 HZ*
Full Load Amps
1.1
Horsepower
0.75
Insulation Class
Class F
Mounting Type
C-Face with Removable Base
Phase
Three-Phase
RPM
1800
Service Factor
1.15
Voltage
230/460
