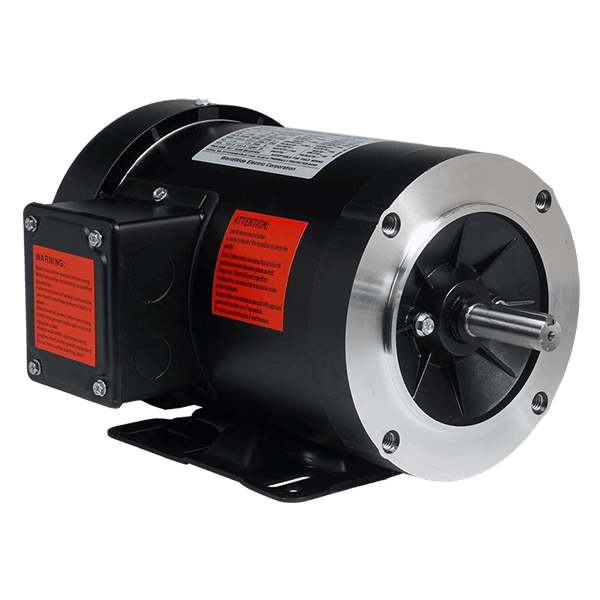

General Purpose Motor, 3 HP, 3600 RPM, 230/460V, 56C Frame, C-Face with Removable Base
Roll over image to zoom in Click on image to zoom
General Purpose Motor, 3 HP, 3600 RPM, 230/460V, 56C Frame, C-Face with Removable Base
WorldWide Electric Motors

General Purpose Motor, 3 HP, 3600 RPM, 230/460V, 56C Frame, C-Face With Removable Base 460V 60HZ Three Phase 3 HP 56°C

Worldwide ElectricSKU: NATE3-36-56CB
Price:
$432.76

Delivery date to be confirmed on Sales Order

or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Replacement Part — Component

The WorldWide Electric NATE3-36-56CB for WorldWide Electric pump systems.

Part Specifications
Part Number NATE3-36-56CB
Brand WorldWide Electric
⚠ Confirm Compatibility Before OrderingAlways verify this part is correct for your specific pump model. Contact PumpStop with your pump model number and we'll confirm.
Need help confirming compatibility or finding the right part? Contact PumpStop — chat or call (781) 281-8905.
Category
Electric Motors
Subcategory
General Purpose Motors
Approximate Weight (lbs)
39
Degree of Protection
IP43
Enclosure Type
TEFC
FL Efficiency (%)
86.5
Frame Size
56C
Frequency
60/50 HZ*
Full Load Amps
3.69
Horsepower
3
Insulation Class
Class F
Mounting Type
C-Face with Removable Base
Phase
Three-Phase
RPM
3600
Service Factor
1.15
Voltage
230/460
