General Purpose Motor, 2 HP, 3600 RPM, 230/460V, 56C Frame, C-Face Round Body 460V 60HZ Three Phase 2 HP 56°C

WorldWide ElectricSKU: NATE2-36-56CRD

Price:
Sale price$374.12
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

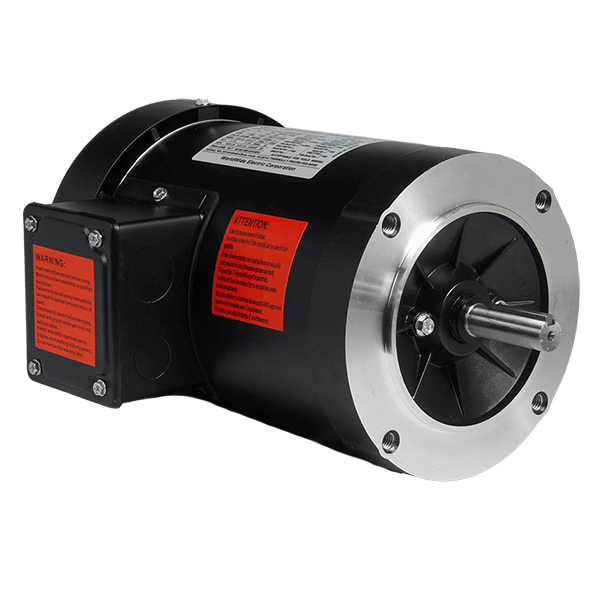

WorldWide Electric General Purpose Motor - 2 HP, 3600 RPM

Introducing the WorldWide Electric General Purpose Motor, a reliable and efficient solution for your industrial and commercial applications. This 2 HP motor operates at 3600 RPM and is designed for three-phase power with a voltage rating of 230/460V. With a 56C frame and a C-Face round body (footless) mounting design, this motor is perfect for various mounting configurations.

Constructed from rolled steel, this TEFC (Totally Enclosed Fan Cooled) motor ensures durability and longevity, making it an ideal choice for general purpose use. It features a premium efficiency rating, providing optimal performance while minimizing energy consumption.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is NATE2-36-56CRD. If you encounter any difficulties, our team is here to help you find the perfect fit for your needs.

Upgrade your equipment with the WorldWide Electric General Purpose Motor today!

Supplier Part Number 8501.52.4000
Category Electric Motors
Subcategory General Purpose Motors
Approximate Weight (lbs) 34
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 85.5
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 2.61
Horsepower 2
Insulation Class Class F
Mounting Type C-Face Round Body (Footless)
Phase Three-Phase
RPM 3600
Service Factor 1.15
Voltage 230/460
