General Purpose Motor, 0.75 HP, 3600 RPM, 230/460V, 56C Frame, C-Face With Removable Base 460V 60HZ Three Phase 75 HP 56°C

WorldWide ElectricSKU: NAT34-36-56CB

Price:
Sale price$213.97
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

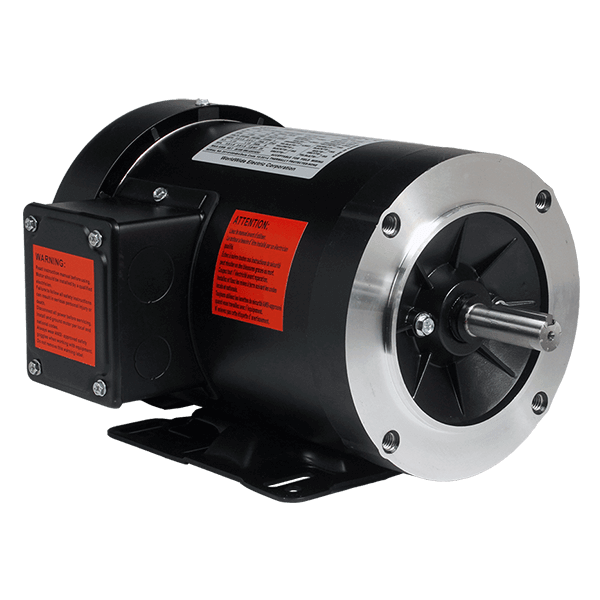

WorldWide Electric General Purpose Motor - 0.75 HP

Introducing the WorldWide Electric General Purpose Motor, a reliable and efficient solution for your industrial and commercial applications. This 0.75 HP motor operates at 3600 RPM and is designed for three-phase power with a voltage rating of 230/460V. With a 56C frame and a C-face removable base, this motor is built for versatility and ease of installation.

Constructed from rolled steel, this TEFC (Totally Enclosed Fan Cooled) motor ensures durability and protection against harsh environments. It features a standard efficiency rating and a service factor of 1.15, making it an excellent choice for a variety of applications.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is NAT34-36-56CB. If you encounter any difficulties, our team is here to help you find the perfect fit.

Upgrade your equipment with the WorldWide Electric General Purpose Motor today!

Category Electric Motors
Subcategory General Purpose Motors
Approximate Weight (lbs) 21
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 71.5
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 1.2
Horsepower 0.75
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Three-Phase
RPM 3600
Service Factor 1.15
Voltage 230/460

Motor Curves
