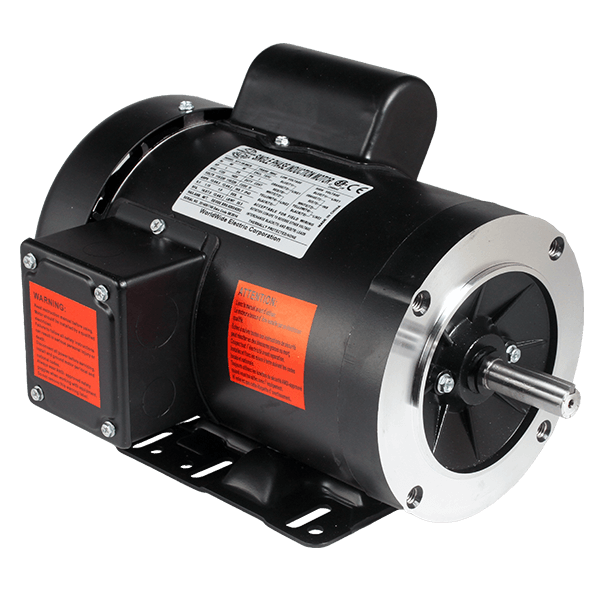

General Purpose Motor, 0.33 HP, 3600 RPM, 115/230V, 56C Frame, C-Face With Removable Base 230V 60HZ Single Phase 33 HP 56°C

WorldWide ElectricSKU: NT13-36-56CB

Price:
Sale price$228.56
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric General Purpose Motor - 0.33 HP

Introducing the WorldWide Electric General Purpose Motor, a reliable and efficient solution for your motor needs. This 0.33 HP motor operates at 3600 RPM and is designed for single-phase applications with a voltage range of 115/230V. Featuring a 56C frame and a TEFC (Totally Enclosed Fan Cooled) design, this motor ensures durability and performance in various environments.

Key features include:

  • Power: 0.33 HP
  • Speed: 3600 RPM
  • Voltage: 115/230V
  • Frame Size: 56C
  • Mounting: C-Face with Removable Base
  • Efficiency: Standard Efficiency
  • Construction: Rolled Steel

This motor is ideal for a wide range of applications, making it a versatile choice for both residential and commercial use. At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches this motor. If you encounter any difficulties in finding the right item, don’t hesitate to reach out to our knowledgeable team for support.

Category Electric Motors
Subcategory General Purpose Motors
Approximate Weight (lbs) 21
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 59.5
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 2.7
Horsepower 0.33
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Single-Phase
RPM 3600
Service Factor 1.15
Voltage 115/230

Motor Curves
