General Purpose Motor, 0.33 HP, 1800 RPM, 115/230V, 56C Frame, C-Face With Removable Base 230V 60HZ Single Phase 33 HP 56°C

WorldWide ElectricSKU: NT13-18-56CB

Price:
Sale price$234.88
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

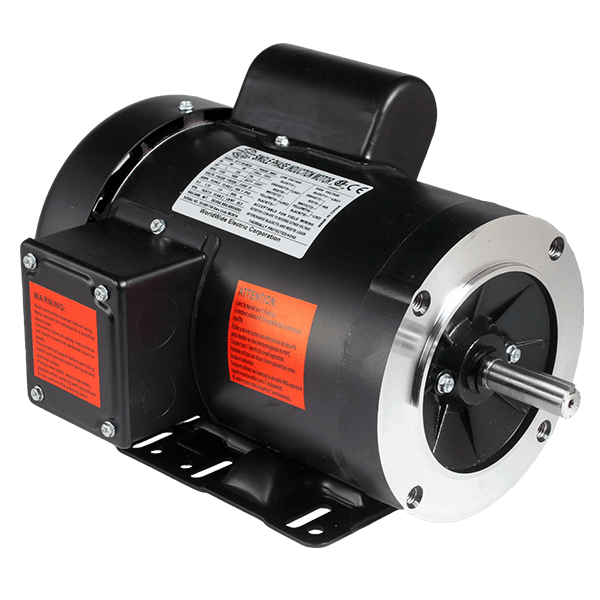

WorldWide Electric General Purpose Motor - 0.33 HP

Introducing the WorldWide Electric General Purpose Motor, a reliable and efficient solution for your motor needs. This 0.33 HP motor operates at 1800 RPM and is designed for single-phase applications with a voltage range of 115/230V. Featuring a 56C frame and a C-face with removable base, this motor is perfect for various general-purpose applications.

Constructed from durable rolled steel, this TEFC (Totally Enclosed Fan Cooled) motor ensures longevity and standard efficiency, making it an ideal choice for both residential and commercial use. With a service factor of 1.15, it provides reliable performance under varying load conditions.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance finding the right pump for your application, please call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches this motor, which is NT13-18-56CB. If you’re having trouble locating the right item, our team is here to help!

Category Electric Motors
Subcategory General Purpose Motors
Approximate Weight (lbs) 22
Degree of Protection IP43
Enclosure Type TEFC
FL Efficiency (%) 63.0
Frame Size 56C
Frequency 60/50 HZ*
Full Load Amps 2.6
Horsepower 0.33
Insulation Class Class F
Mounting Type C-Face with Removable Base
Phase Single-Phase
RPM 1800
Service Factor 1.15
Voltage 115/230
