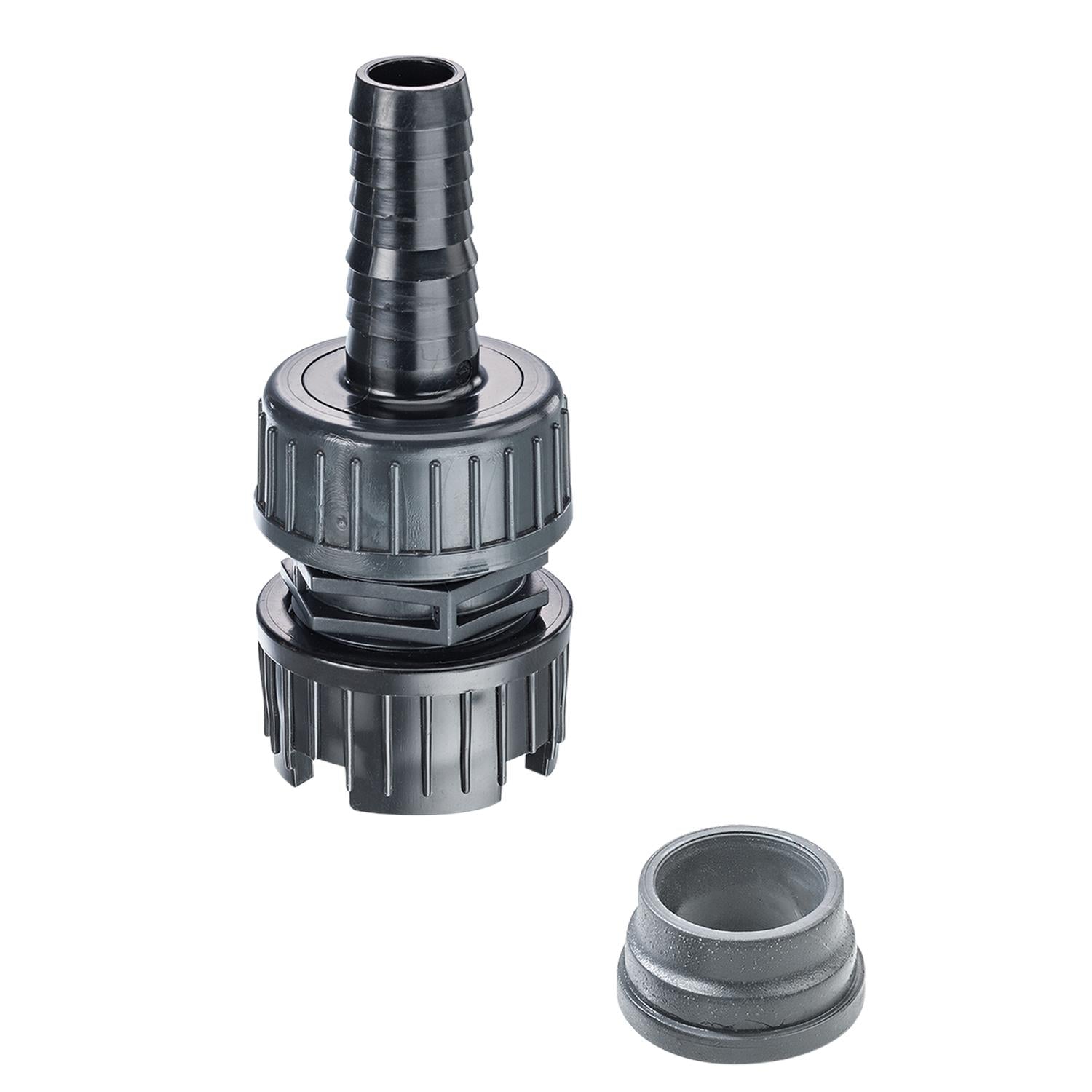

Grundfos 99168633 - Foot Valve NL-G5/4 PE/V,E/C U3

GRUNDFOSSKU: 99168633

Price:
Sale price$593.06
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99168633 Foot Valve NL-G5/4 PE/V, E/C U3 is a suction-line foot valve assembly for dosing and fluid-handling systems, used by technicians and service professionals to prevent backflow and protect pumps.

Key features

  • Includes weight, strainer (mesh size 0, 8mm) and non-return valve for reliable suction performance
  • Designed as an accessory for dosing pumps and control systems
  • Helps maintain pump prime and reduce maintenance with simple inline installation

Applications

Ideal for dosing pump installations, chemical feed systems, and general fluid transfer where a suction-line non-return and debris protection are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99168633

EAN 5712608002939
Applications Accessories
Connection 19/20
Gasket Rubber
Gross weight 0.64 lb
Level indication without
Material Plastic
Material Pricing Group 67
Maximum flow 460 l/h
Net weight 0.52 lb
Product family Foot valves
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Size of connection 19/20
Type of connection Connection pack
Valve ball Ceramic

Motor Curves

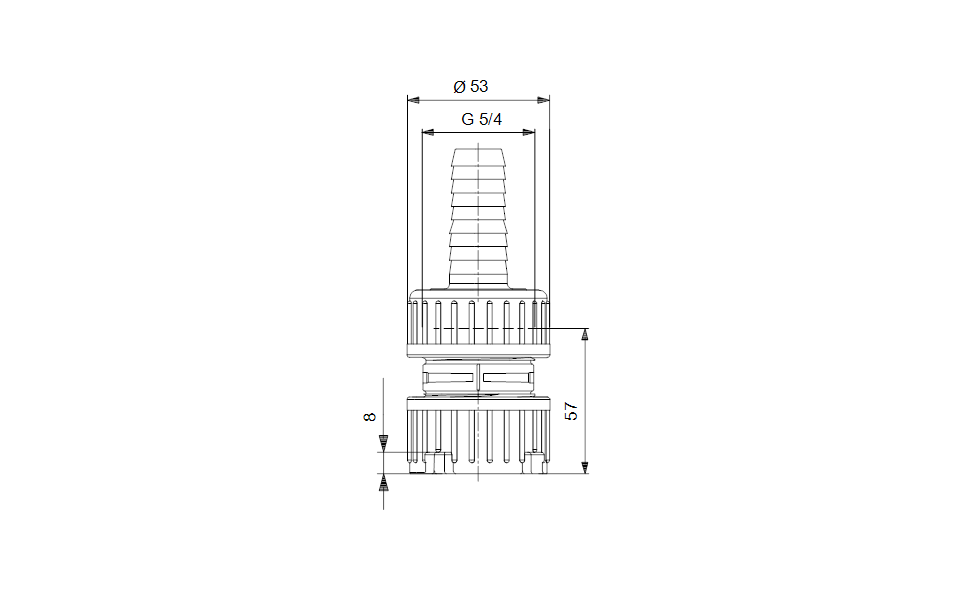

Dimensional Drawing
