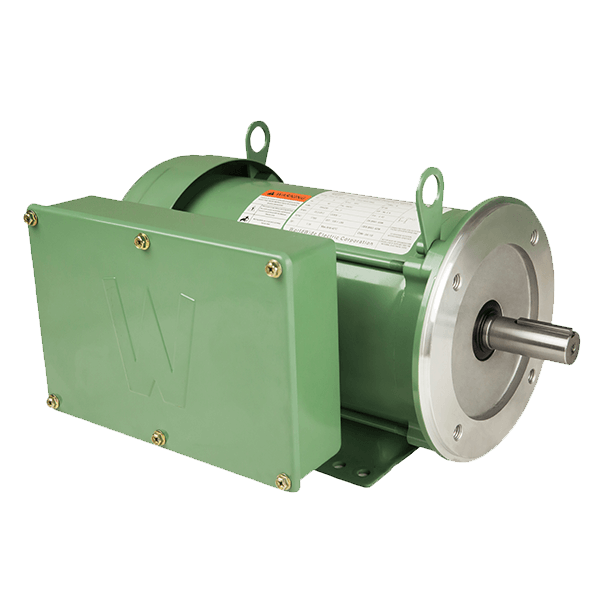

Farm Duty Motor, 5 HP, 1800 RPM, 230V, 184TC Frame, C-Face With Feet 230V 60HZ Single Phase 5 HP

WorldWide ElectricSKU: FD5-18-184TC

Price:
Sale price$678.87
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

WorldWide Electric Farm Duty Motors:

FD 5 HP 1800 RPM 1 PH 60 Hz 208-230V 1.15 SF 184TC FRAME, TEFC, FARM DUTY MOTOR, ROLLED STEEL, STANDARD EFFICIENCY, C-FACE RIGID MOUNTING

Supplier Part Number 8501.40.6040
Category Electric Motors
Subcategory Farm Duty Motors
Approximate Weight (lbs) 101
Degree of Protection IP55
Enclosure Type TEFC
FL Efficiency (%) 86.4
Frame Size 184TC
Frequency 60 HZ
Full Load Amps 20.2
Horsepower 5
Insulation Class Class F
Mounting Type C-Face with Feet
Phase Single-Phase
RPM 1800
Service Factor 1.15
Voltage 230

Motor Curves
