Description

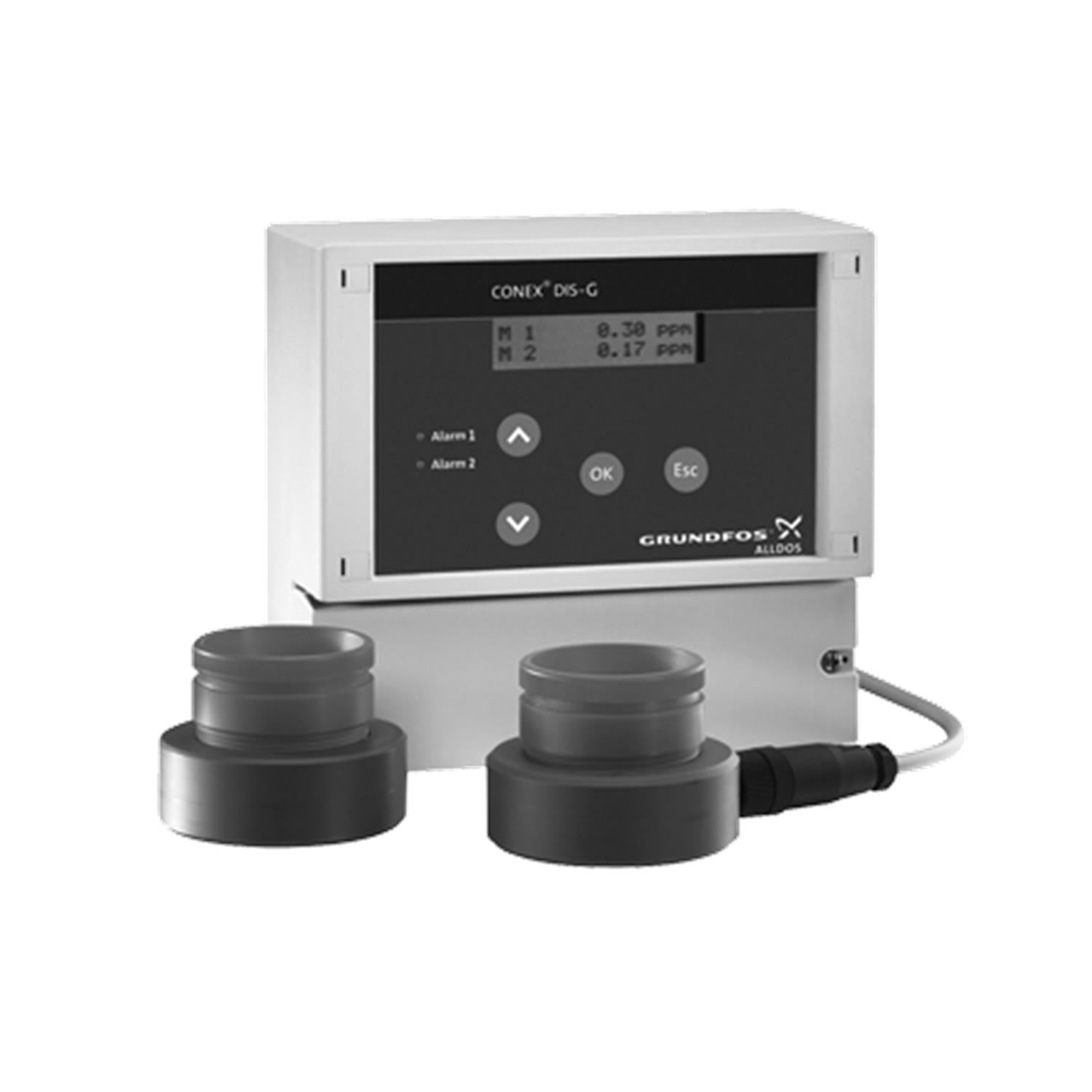

Gas Warning Unit DIS-G | DIS-G-P, CCA-CCA-X, W-HPN: 95706182 Type Gas warning systemGas warning system for safe monitoring of up to two independent measuring points in gas dosing installations, storage and/or service rooms. Simultaneous display of both measured values. Optimum safety due to permanent sensor monitoring and alarm relay. Very short response time in case of sudden change of gas concentration. Long service life of sensor elements. One alarm relay per measured value. Sensor recognition and auto-calibration. 3 Operating languages.
EAN
5700310545394
Battery back-up
NO
Deviation
Accuracy +/- 10%
Enclosure class (IEC 34-5)
IP65
Mains frequency
50 / 60 Hz
Material Pricing Group
65
Measuring ran.1
0-5 ppm
Measuring ran.2
0-5 ppm
Mounted on
Wall
Power 1
5 VA
Product number Alldos
307-2001-10002
Rated voltage
x 115/120 V
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
