Description

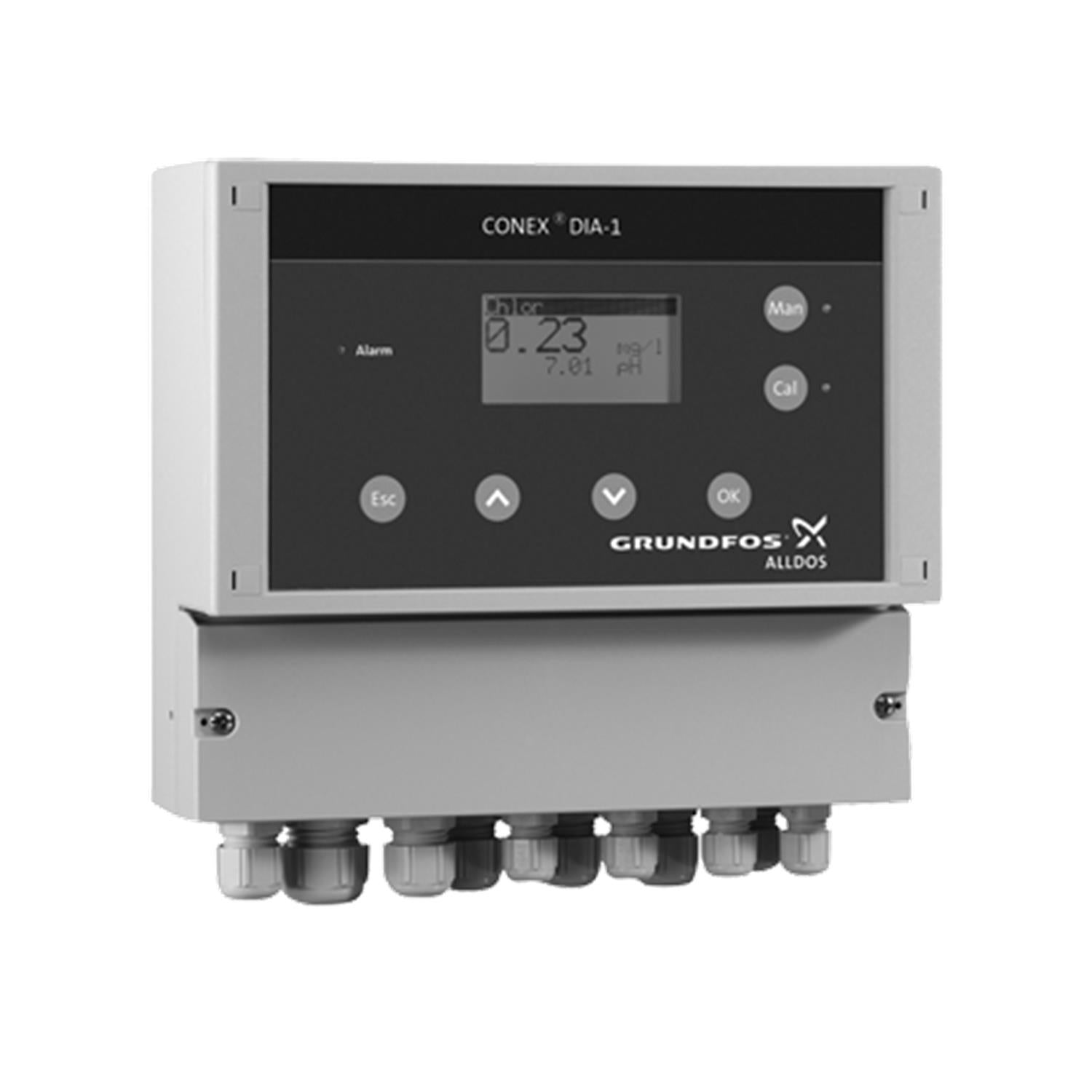

The Grundfos 96622775 (DIA-1-A, P/R-X-X-RCB-X-T, W-H) is a Grundfos Accessory / Spare Part / Control. Genuine Grundfos accessory, control component, spare part, or sensor. Applications include Plumbing: Water Disinfection, Drinking water treatment, Municipal wastewater treatment.
Genuine Grundfos Part
OEM component engineered and manufactured to Grundfos specifications. Maintains pump performance and warranty coverage.
Full Traceability
Genuine Grundfos parts carry manufacturer traceability from production through delivery. No counterfeit risk.
Authorized Source
PumpStop is an authorized Grundfos distributor. All parts are genuine — not aftermarket, not surplus.
Confirm Compatibility
Always verify part number against your pump model number and serial number before ordering. Contact PumpStop for parts identification assistance.
Technical Support Available
PumpStop technical team can identify correct parts from pump nameplate data, serial number, or model code. Call (781) 281-8905 or chat.
Contact for Availability
Parts availability varies. Contact PumpStop to confirm stock, lead time, and pricing before placing an order.
| Model Number | 96622775 |
| Product Series | ACC |
| Series Description | Grundfos Accessory / Spare Part / Control |
| Voltage | 115/120V |
| Frequency | 50, 60 Hz |
| Protection Class (IP) | IP65 |
| Max Operating Pressure | 87.02psi |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation. |
| Temperature limits | Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. ACC pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700835035912
- Applications
- Dosing & Disinfection
- Cable diaphragm
- without diaphragm cable
- Electrode 1
- no disinfection measurement
- Electrode 2
- no pH electrode
- Electrode 3
- redox (ORP)
- Electrode 4
- no H2O2 or PAA electrode
- Enclosure class (IEC 34-5)
- IP65
- Flow sensor
- without flow sensor
- Language
- N/A
- Mains frequency
- 50 / 60 Hz
- Material Pricing Group
- 64
- Maximum operating pressure
- 6 bar
- Measuring cell
- P/R - pH or redox (ORP) only
- Motor
- without cleaning motor
- Motor version
- without cleaning motor
- Mounted on
- Wall mounting
- Power 1
- 15 VA
- Preassembled
- YES
- Pressure retention valve
- without pressure-retention valve
- Product family
- Conex DIA-1-A
- Product number Alldos
- 314-170-10035
- Range pH
- no pH electrode
- Rated voltage
- x 115/120 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Redox range
- +/- 2000 mV mV
- Sens.interface
- without (only for panel installation versions)
- Temp. sensor
- with Pt100
- Type key
- DIA-1-A
- Valve
- without pressure-retention valve
- Version
- without cleaning motor
Dimensional Drawing
