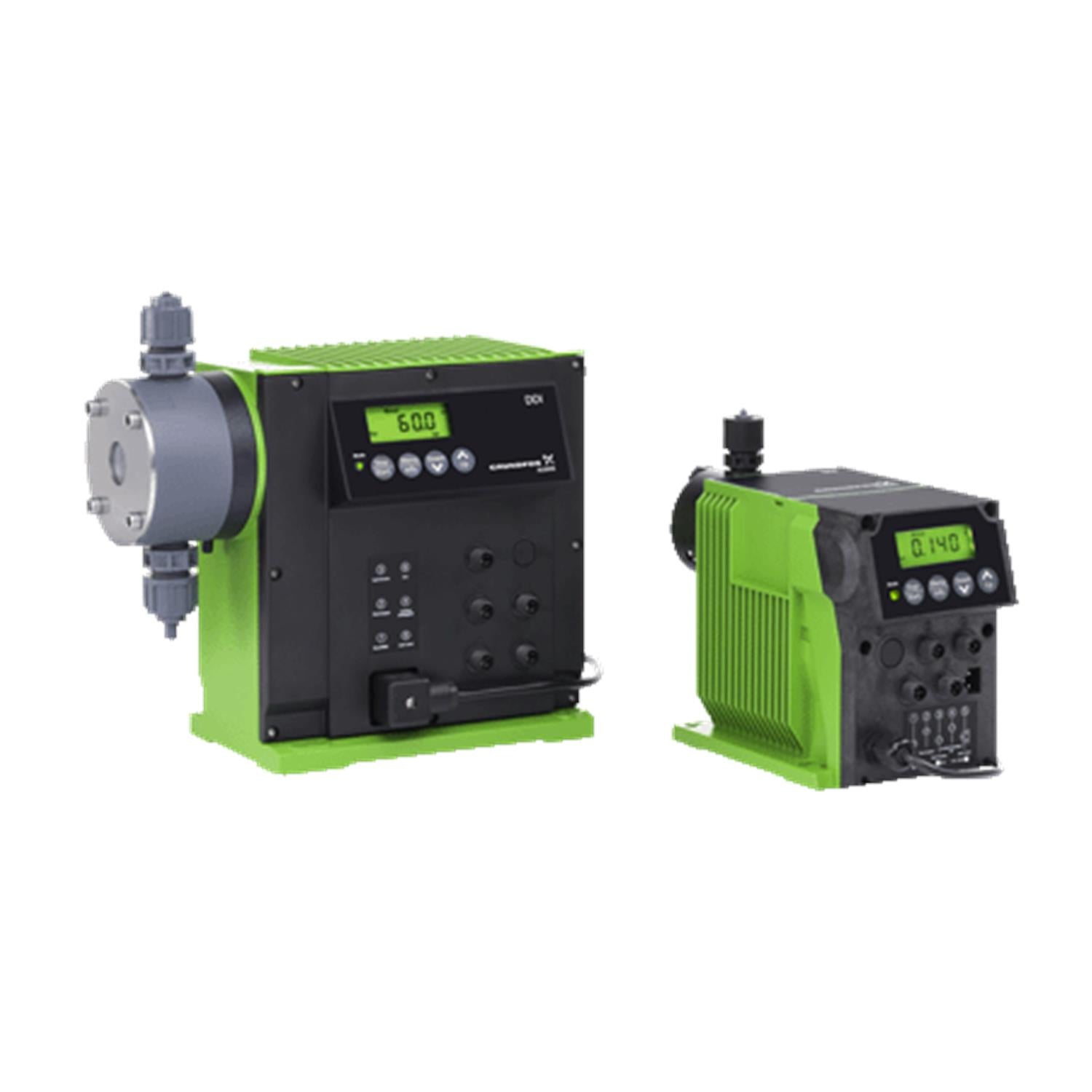

Image shown may not be actual product
Grundfos 96694396 - DDI 222 60-10
Grundfos 96694396 - DDI 222 60-10
Grundfos 96694396 - DDI 222 60-10
Grundfos 96694396 - DDI 222 60-10

Grundfos 96694396 - DDI 222 60-10

This item ships free!
GRUNDFOSSKU: 96694396
Contact for price
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96694396 - DDI 222 60-10 This product is manufactured by Grundfos for various industrial applications. For more information on specifications and applications please chat or call our team.

EAN 5700837343145
Applications Dosing & Disinfection
Material Pricing Group 60
Density 62.29 lb/ft³
Maximum operating pressure 10 bar
Selected liquid temperature 68 °F
Rated voltage 1 x 100-240 V 50/60 Hz V
Pumped liquid Water
Power input - P1 0.05 kW
Pump outlet Tube, 9/12 mm
Pump inlet Tube, 9/12 mm
Mains frequency 50 / 60 Hz
4-20 mA control Input for analog 0/4-20 mA control integrated
Enclosure class (IEC 34-5) IP 65
Pulse control Input for pulse control integrated
Level control Input for dual-level sensor or external start/stop
Control panel SIDE
Type of cable plug SCHUKO
Length of cable 1.5 m
Other in/output NO
Control variant AF
Flow and pressure monitoring Double diaphragm system with diff. pressure switch
Approvals CE
Max. capacity 1 60 l/h
Power 1 0.05 kW
Housing Polypropylene
Flow rate adjustment Input for pulse control
Gasket EPDM
Grundfos Alldos PN 222-60D-10302
Valve ball Ceramic
Valve Standard
Capacity 60 l/h
Pump housing Polypropylene
Adjustment Input for pulse control

Motor Curves

Dimensional Drawing

×
