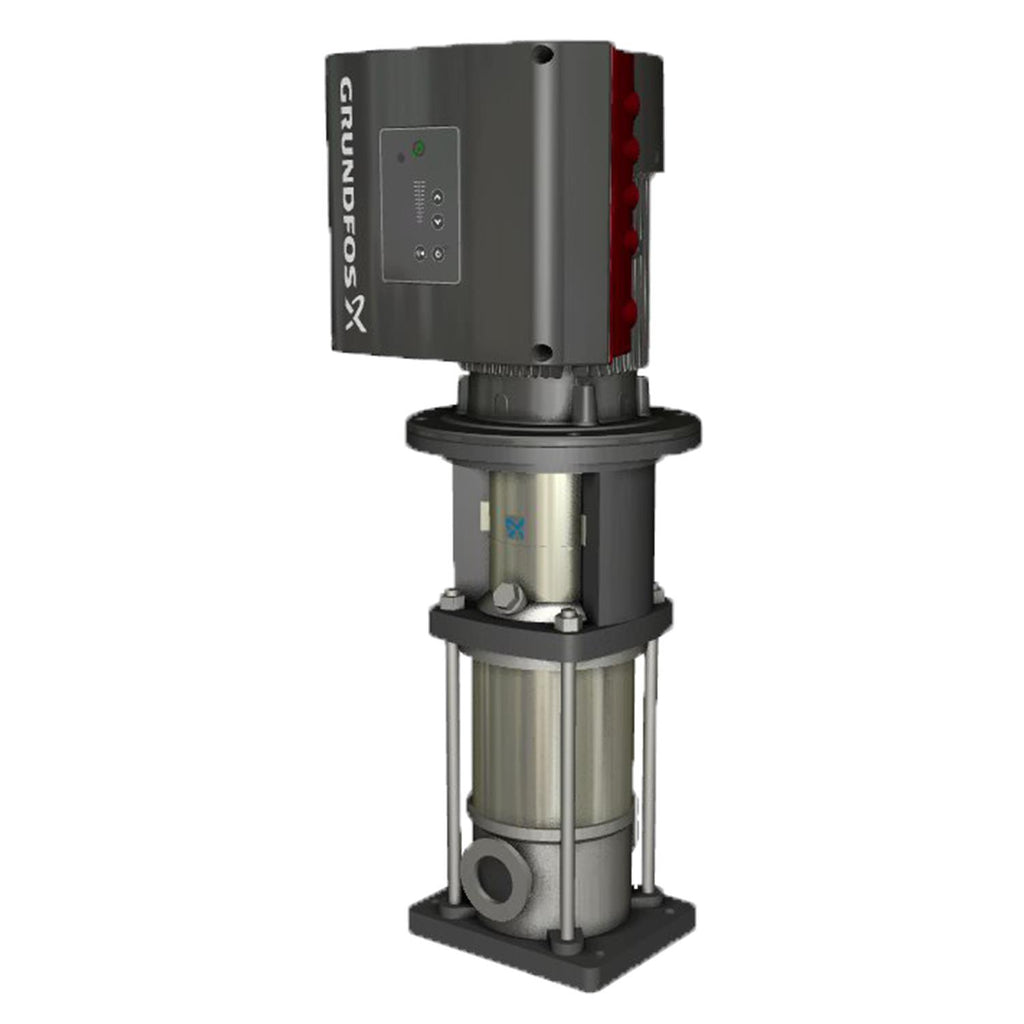

Grundfos 98664646 - CRNE 5-5 P-CA-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 98664646

Price:
Sale price$7,556.94
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos CRNE 5-5 P-CA-A-E-HQQE is a vertical, inline multistage stainless steel pump designed for industrial and commercial fluid handling where pressure boosting and reliable circulation are required. Operators and service technicians use this model in systems that demand compact high-pressure performance.

Key features

  • Vertical, inline multistage stainless steel construction for compact footprint and corrosion resistance
  • Centrifugal, high-pressure design suitable for boosted water supply and process systems
  • Service-friendly configuration that simplifies maintenance and reduces downtime

Applications

Typical uses include pressure boosting, HVAC circulation, industrial process water, boiler feed, and other high-pressure inline pumping duties where multistage performance is needed.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98664646

EAN 5711499187794
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499196
Connect code CA
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 64.4 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 164 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.869
Motor standard NEMA
Motor type 80B
Net weight 53.4 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.99
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3450 rpm
Pump version P
Pumped liquid Water
Rated current 6.70-5.60 A
Rated flow 30.4 US gpm
Rated head 115.2 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 5
Standard NEMA
Type 80B
Type of connection FlexiClamp
Version P

Motor Curves

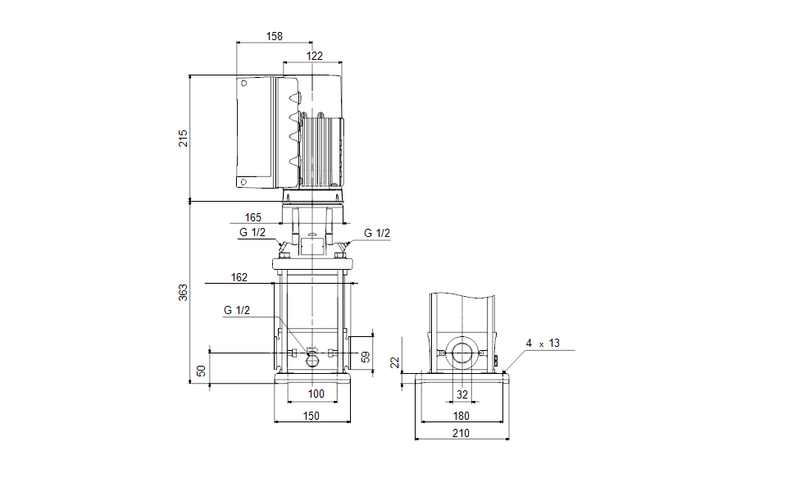

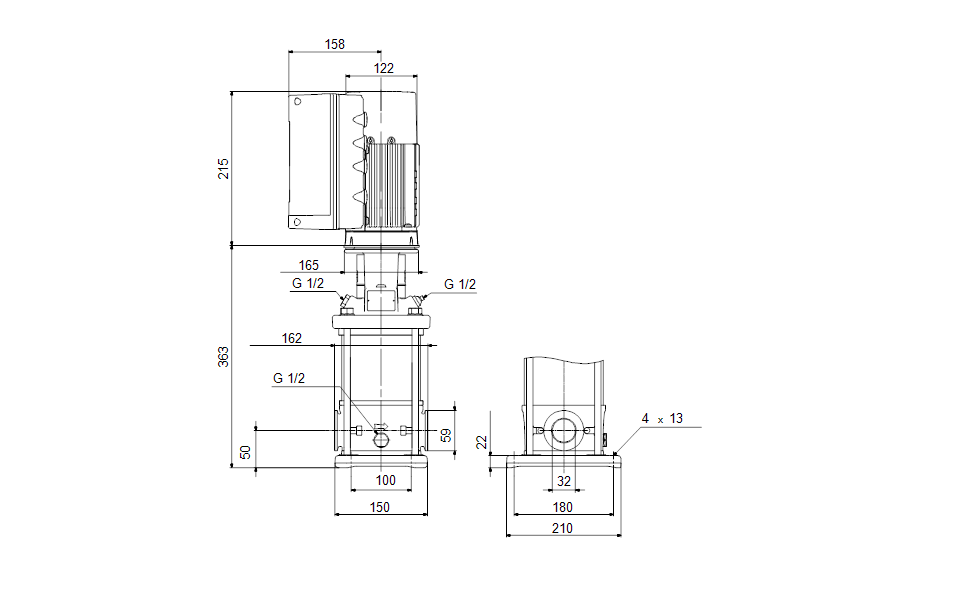

Dimensional Drawing

DWiring Diagram
