Grundfos 98497091 - CRNE 5-4 HN --- | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 98497091

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98497091 CRNE 5-4 HN is a vertical, inline, multistage stainless steel pump suited for industrial and commercial fluid handling tasks where reliable centrifugal performance is required.

Key features

  • Stainless steel construction for corrosion resistance and durability
  • Multistage inline design for higher pressure in a compact footprint
  • Suitable for booster and centrifugal system integration to maintain steady flow and pressure

Applications

Typical uses include HVAC and chilled water systems, pressure boosting, industrial process circulation, and other general-purpose centrifugal pump duties where a vertical multistage pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98497091

EAN 5711496139154
Approvals on nameplate ANSI/NSF61
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98499285
Connect code GA
Connection CLASS 150
Control panel Standard
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Function Module FM300 - Advanced
Gross weight 170.0 lb
IE efficiency 0.896
IE Efficiency class IE5
Impeller Stainless steel
Impellers 4
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code G
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.896
Motor standard NEMA
Motor type 80B
Net weight 142.0 lb
Power (P2) required by pump 1.1 kW
Power factor 1 0.84
Pressure rating for connection CLASS 150
Pump 1.1 kW
Pump speed on which pump data are based 3466 rpm
Pump version HN
Pumped liquid Water
Rated current 2.05 A
Rated flow 30.8 US gpm
Rated head 95.48 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Sales region USA
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 1.5 inch
Size of outlet connection 1 inch
Stages 4
Standard NEMA
Type 80B
Version HN

Motor Curves

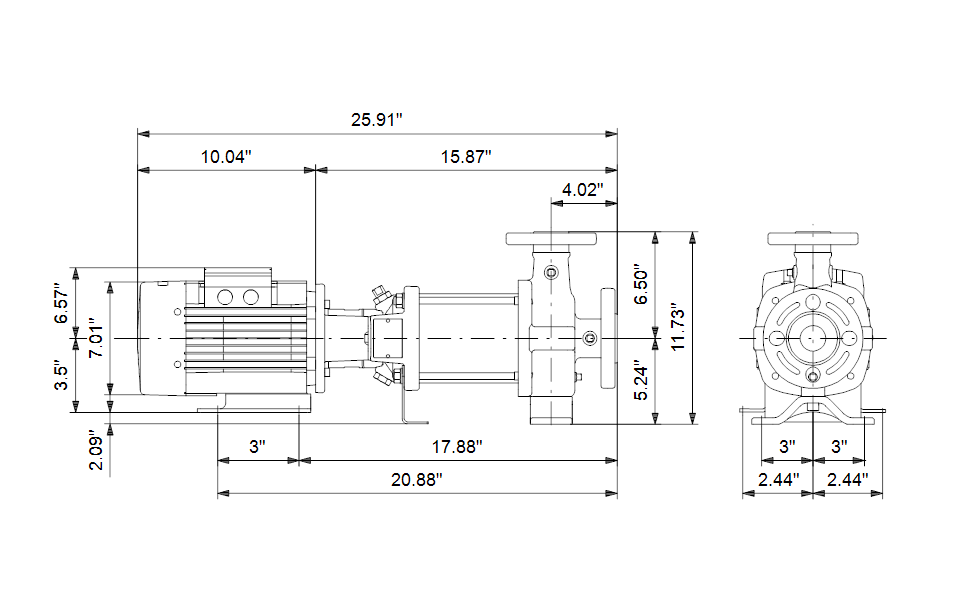

Dimensional Drawing

DWiring Diagram
