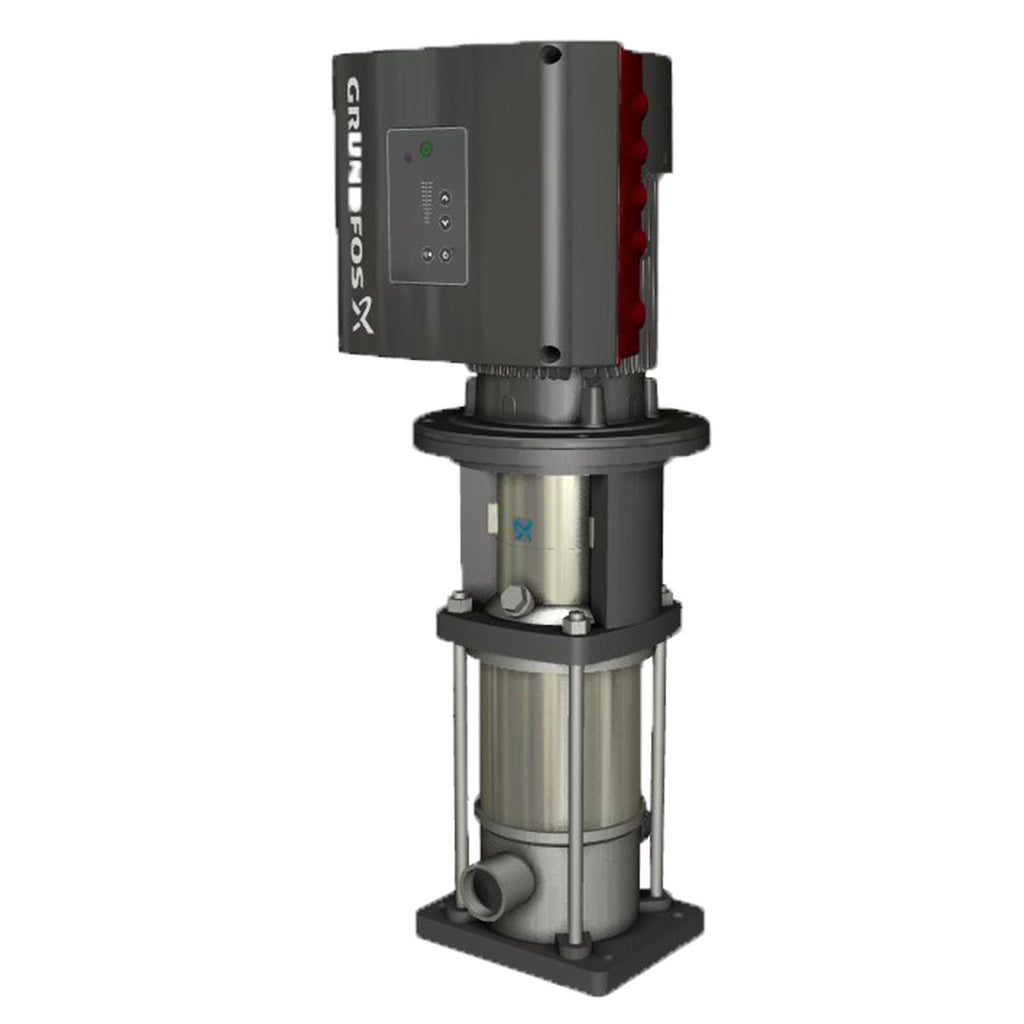

Grundfos 99389404 - CRNE 5-24 A-P-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99389404

Price:
Sale price$16,663.89
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99389404 CRNE 5-24 A-P-A-E-HQQE is a vertical, inline multistage centrifugal pump in stainless steel for industrial fluid handling. It fits systems requiring compact, high-pressure pumping and is used by service technicians and plant maintenance teams.

Key features

  • Stainless steel construction for corrosion resistance and sanitary compatibility
  • Vertical multistage, inline design suitable for high-pressure centrifugal service
  • Compact footprint provides reliable pressure boost and space-saving installation

Applications

Typical uses include booster stations, process circulation, high-pressure cleaning, and industrial water transfer where durable, multistage inline pumping is needed.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99389404

EAN 5713828325020
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074136
Connect code P
Connection PN 50
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 252.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 779.9 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Net weight 140.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.91-0.89
Pressure rating for connection PN 50
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version A
Pumped liquid Water
Rated current 9.10-8.50 A
Rated flow 30.4 US gpm
Rated head 578.1 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 24
Standard NEMA
Type 132E
Type of connection PJE
Version A

Motor Curves

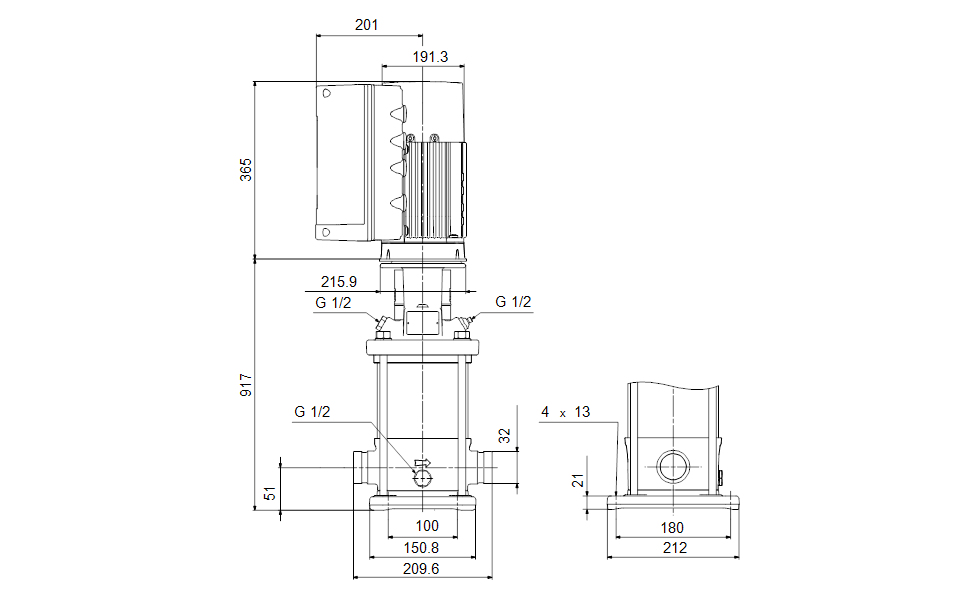

Dimensional Drawing

DWiring Diagram
