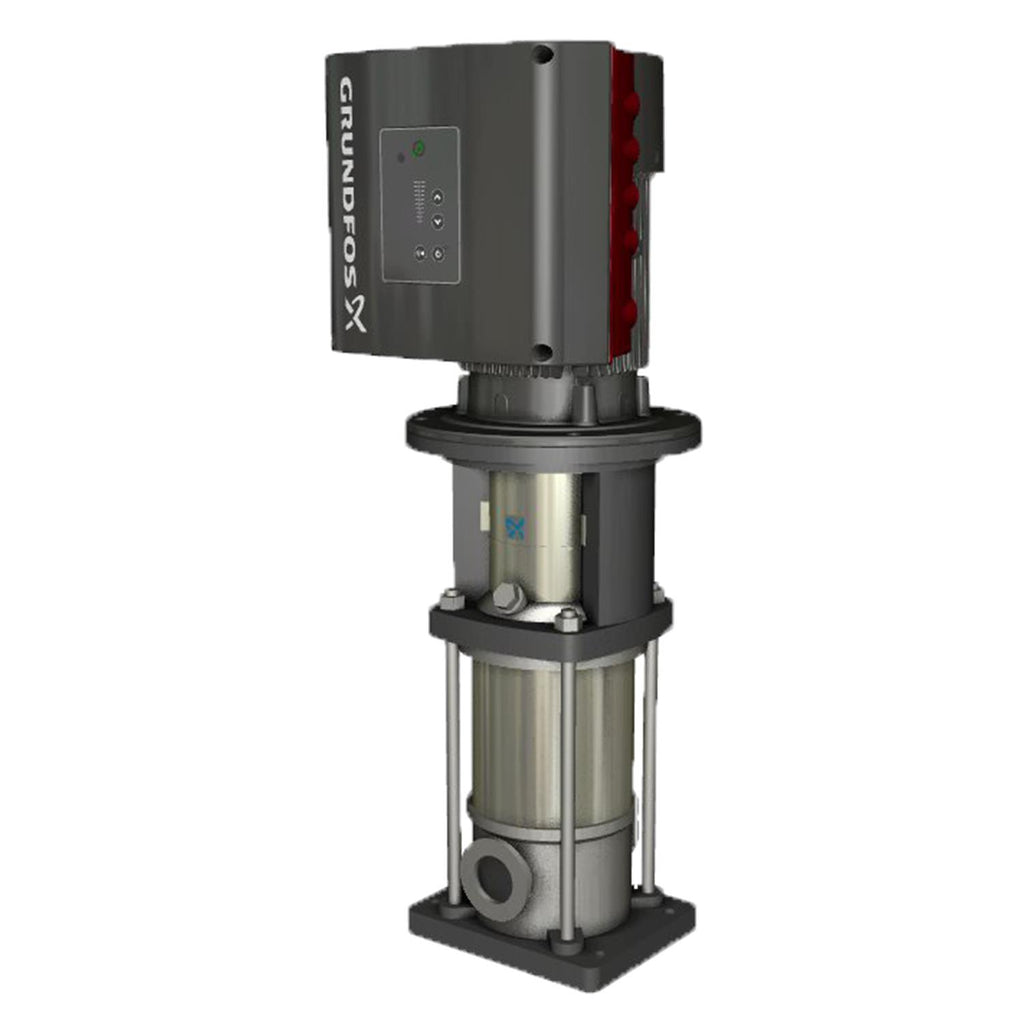

Grundfos 99335878 - CRNE 3-9 A-CA-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99335878

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99335878 CRNE 3-9 A-CA-A-E-HQQE is a stainless steel, vertical, inline multistage centrifugal pump designed for industrial and commercial fluid handling. It suits users needing high-pressure, space-efficient pumping solutions.

Key features

  • Stainless steel construction for corrosion resistance and durability
  • Designed as a vertical, inline multistage centrifugal unit for high-pressure applications
  • Compact, serviceable design that supports reliable performance and easier maintenance

Applications

Typical uses include high-pressure water supply, boiler feed, HVAC boosting, and general industrial process systems where inline, vertical multistage performance is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99335878

EAN 5713827428494
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498948
Connect code CA
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 70.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 30
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 280.9 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.896
Motor standard NEMA
Motor type 80B
Net weight 59.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.84
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3466 rpm
Pump version A
Pumped liquid Water
Rated current 2.05 A
Rated flow 15.4 US gpm
Rated head 206.7 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 9
Standard NEMA
Type 80B
Type of connection FlexiClamp
Version A

Motor Curves

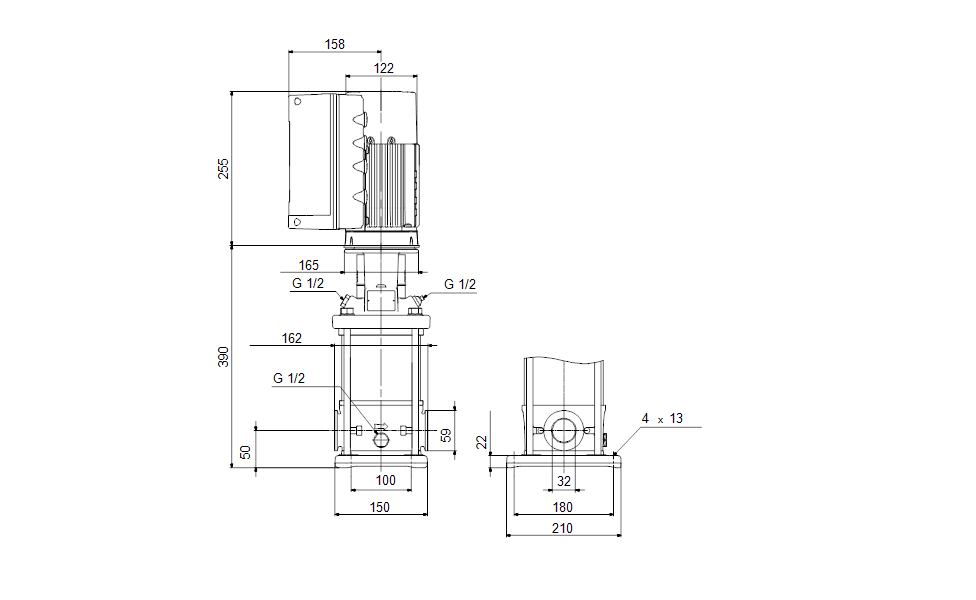

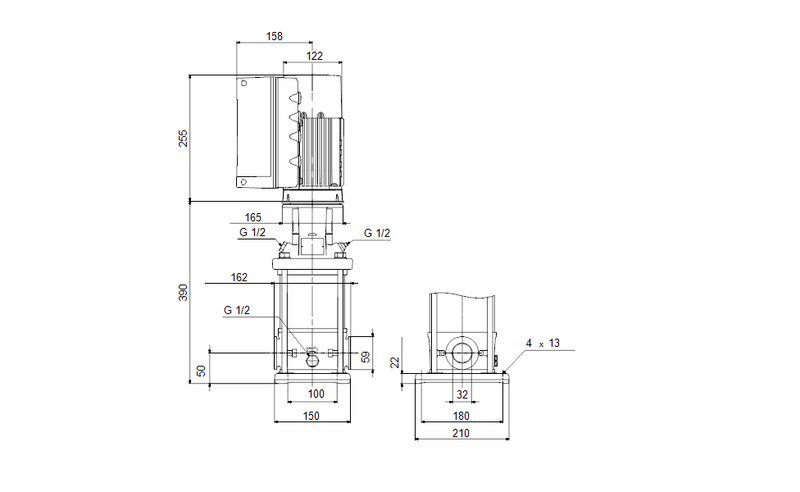

Dimensional Drawing

DWiring Diagram
