Grundfos 98497081 - CRNE 3-11 HN --- | Horizontal | End Suction

GRUNDFOSSKU: 98497081

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

⚠ Discontinued Product This model has been discontinued by Grundfos. Stock may be limited. Contact PumpStop to confirm availability or discuss a replacement model.
Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark
CRNE 3-11 HN --- · Vertical Multistage Centrifugal Pump — All Stainless Variable Speed
CRNE2HP200-240V1-Phase60 HzIE5IP55Stainless steel

The Grundfos 98497081 (CRNE 3-11 HN ---) is a Vertical Multistage Centrifugal Pump — All Stainless Variable Speed. All stainless steel construction with integrated variable frequency drive. Variable speed and full stainless for demanding chemical or food-grade applications. Nominal performance: 15.4US gpm at 252.3ft. Rated 200-240V, 1-Phase, 60 Hz.

Power
2HP
Voltage
200-240V
Phase
1-Phase
Max Flow
15.4US gpm
Max Head
252.3ft
Max Pressure
232.06psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Variable Speed Plus All Stainless

CRNE combines IE5 variable speed with 316 stainless steel wetted construction — the full specification for demanding chemical, food, and pharmaceutical pressure systems.

IE5 Permanent Magnet Motor

Highest efficiency class motor reduces operating cost. Especially effective in pressure systems that spend most runtime below maximum flow.

Integrated Drive — No Cabinet Required

VFD is inside the pump head. Eliminates separate drive panel, reduces installation footprint, and simplifies commissioning.

All Stainless Steel Wetted Path

Every surface in contact with the fluid is EN 1.4401 (316) stainless. Suitable for chlorinated water, mild acids, cleaning agents, and process chemicals.

iSOLUTIONS Connectivity

Supports MODBUS, PROFIBUS, BACnet, and Grundfos GO for full BMS integration and remote performance monitoring.

Cartridge Seal — No Adjustment

Factory-set cartridge seal. No field adjustment on installation. Seal variants available for water, chemical, and high-temperature service.

Model Information — CRNE 3-11 HN ---
Series: CRNE
Model Code: CRNE 3-11 HN ---
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: CLASS 150
Technical Specifications
Model Number 98497081
Product Series CRNE
Series Description Vertical Multistage Centrifugal Pump — All Stainless Variable Speed
Power 2HP
Voltage 200-240V
Phase 1-Phase
Frequency 60 Hz
Motor Speed 360-4000rpm
Pump Speed 3499rpm
Full Load Current 9,1-7,6A
Motor Type 90C
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 87,4%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 15.4US gpm
Nominal Head 252.3ft
Max Operating Pressure 232.06psi
Max Fluid Temperature 248°F
Max Ambient Temperature 122°F
Inlet Connection 1.5inch
Outlet Connection 1inch
Pipe Pressure Rating CLASS 150
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 200-240V, 1-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRNE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRNE Series
✓ Product Data Sheet — CRNE 3-11 HN ---
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711496139055
Approvals on nameplate ANSI/NSF61
Bearing 1 SIC
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498936
Connect code GA
Connection CLASS 150
Control panel Standard
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Function Module FM300 - Advanced
Gross weight 181.0 lb
IE efficiency 0.874
IE Efficiency class IE5
Impeller Stainless steel
Impellers 11
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code G
Material Pricing Group 6
Max pressure at stated temp 232 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum operating pressure 16 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.874
Motor standard NEMA
Motor type 90C
Net weight 154.0 lb
Power (P2) required by pump 1.5 kW
Power factor 1 0.99
Pressure rating for connection CLASS 150
Pump 1.5 kW
Pump speed on which pump data are based 3499 rpm
Pump version HN
Pumped liquid Water
Rated current 9.10-7.60 A
Rated flow 15.4 US gpm
Rated head 252.3 ft
Rated power - P2 1.5 kW
Rated speed 360-4000 rpm
Rated voltage 1 x 200-240 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Sales region USA
Selected liquid temperature 68 °F
Service factor 1
Size of inlet connection 1.5 inch
Size of outlet connection 1 inch
Stages 11
Standard NEMA
Type 90C
Version HN

Motor Curves

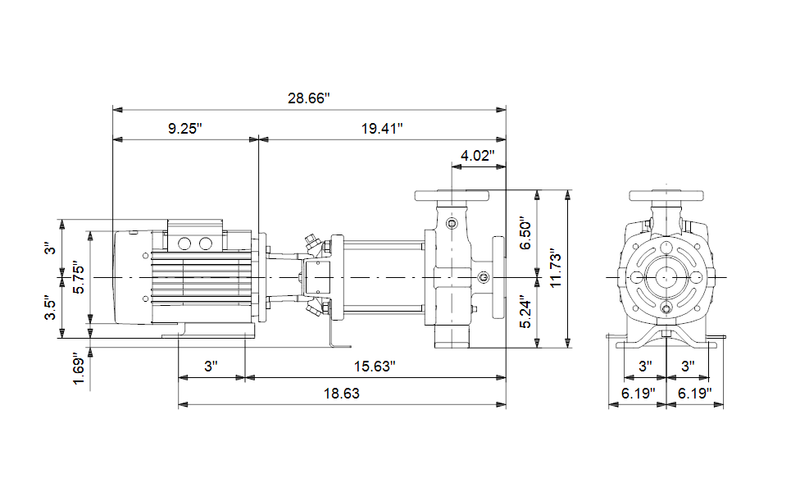

Dimensional Drawing

DWiring Diagram
