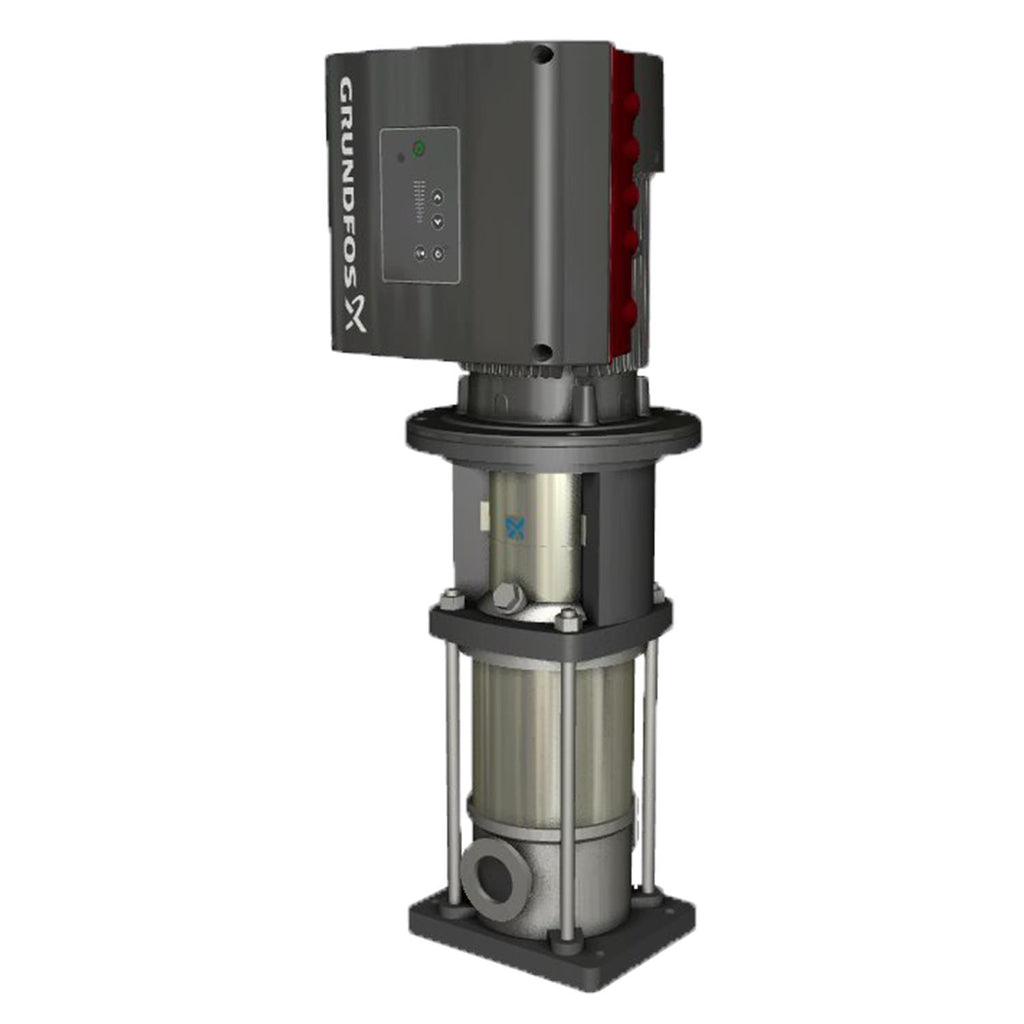

Grundfos 99380321 - CRNE 15-4 A-CX-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99380321

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99380321 - CRNE 15-4 A-CX-A-E-HQQE is a vertical, multistage inline stainless steel pump suited for industrial fluid handling. It fits systems requiring compact high-pressure centrifugal performance for process, water supply, and booster applications.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Multistage inline, vertical configuration for compact high-pressure delivery
  • Stainless steel construction helps resist corrosion and supports long service life

Applications

Typical uses include process water transfer, pressure boosting, boiler feed, and industrial circulation where compact, reliable high-pressure pumping is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99380321

EAN 5713828169020
Actual impeller diameter 4.13 in
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99074199
Connect code CX
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 4.13 in
DOE Pump Energy Index VL 0.4
Enclosure class (IEC 34-5) IP55
Flange size for motor 213TC
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 179.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 266.4 ft
Maximum operating pressure 25 bar
Model A
Motor 213TC
Motor efficiency at full load 1 0.924
Motor standard NEMA
Motor type 132E
Net weight 163.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.91-0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 3467 rpm
Pump version A
Pumped liquid Water
Rated current 9.10-8.50 A
Rated flow 90.3 US gpm
Rated head 206 ft
Rated power - P2 5.5 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 4
Standard NEMA
Type 132E
Type of connection TriClamp
Version A

Motor Curves

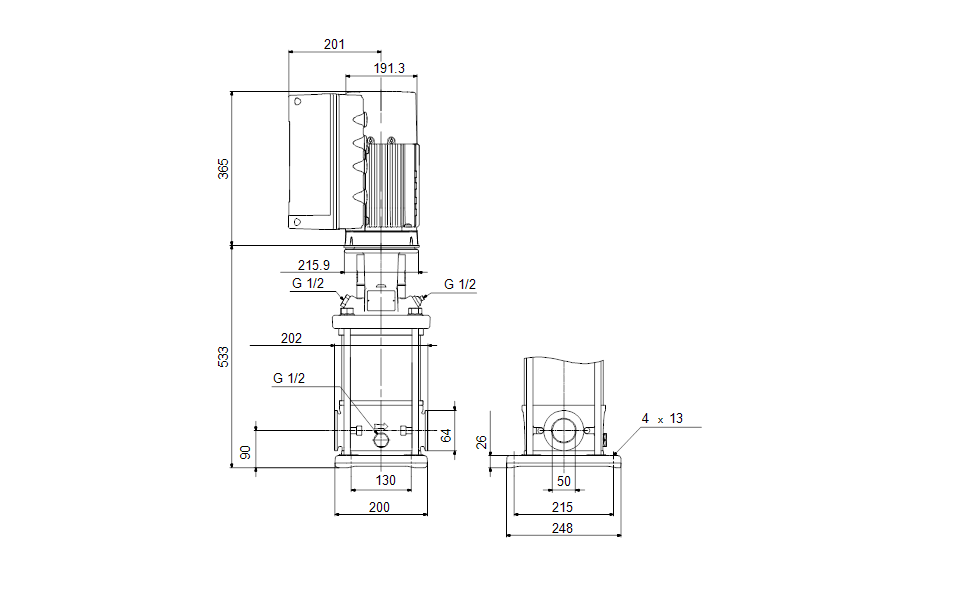

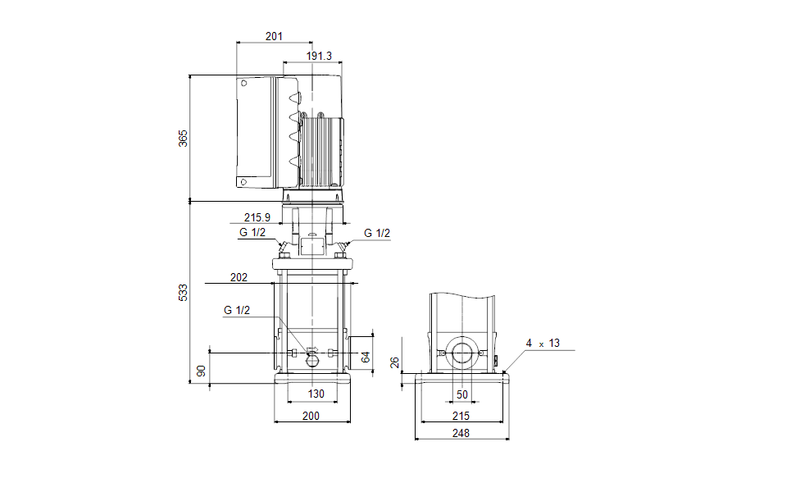

Dimensional Drawing

DWiring Diagram
