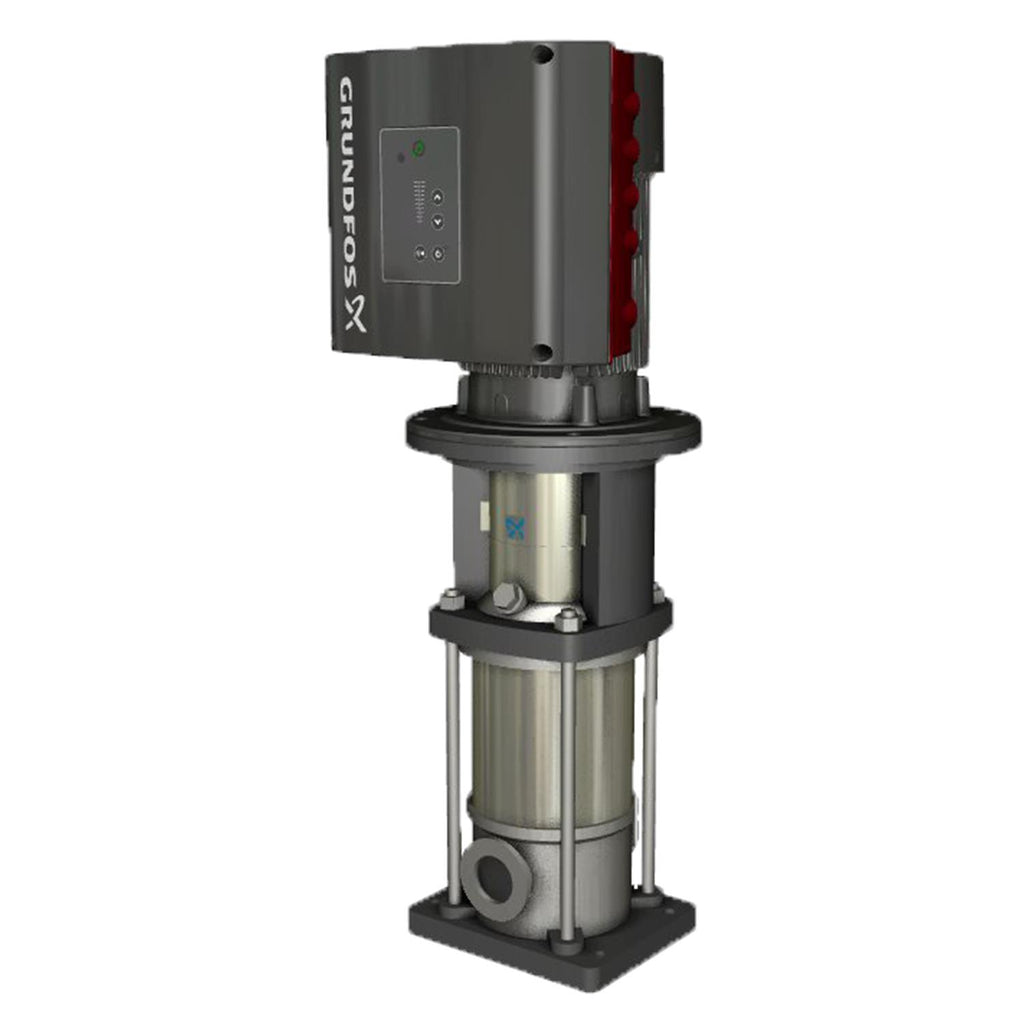

Grundfos 98895265 - CRNE 10-2 N-CX-A-V-HQQV | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 98895265

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 98895265 - CRNE 10-2 N-CX-A-V-HQQV is a vertical, inline multistage stainless steel pump suited for industrial and commercial systems. It fits applications requiring high-pressure centrifugal performance for facility engineers and service technicians.

Key features

  • Manufactured by Grundfos for various industrial applications
  • Designed as a vertical, inline multistage centrifugal pump per the model naming
  • Provides reliable high-pressure pumping for boosting and process circulation

Applications

Typical uses include high-pressure water boosting, process circulation, boiler feed support, and general industrial fluid transfer where a vertical multistage inline centrifugal pump is appropriate.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98895265

EAN 5712603107684
Actual impeller diameter 3.66 in
Approvals CURUS
Built-in motor protection ELEC
Code for rubber V
Code for shaft seal HQQV
Config. file no 98500704
Connect code CX
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 3.66 in
DOE Pump Energy Index VL 0.41
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 97.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 31
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 122 °F
Maximum head 95.81 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.896
Motor standard NEMA
Motor type 80B
Net weight 81.6 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.84
Pressure rating for connection PN 25
Pressure sensor Y
Pump 1.1 kW
Pump speed on which pump data are based 3466 rpm
Pump version N
Pumped liquid Water
Rated current 2.05 A
Rated flow 53.3 US gpm
Rated head 72.51 ft
Rated power - P2 1.1 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 50
Size of outlet connection DN 50
Stages 2
Standard NEMA
Type 80B
Type of connection TriClamp
Version N

Motor Curves

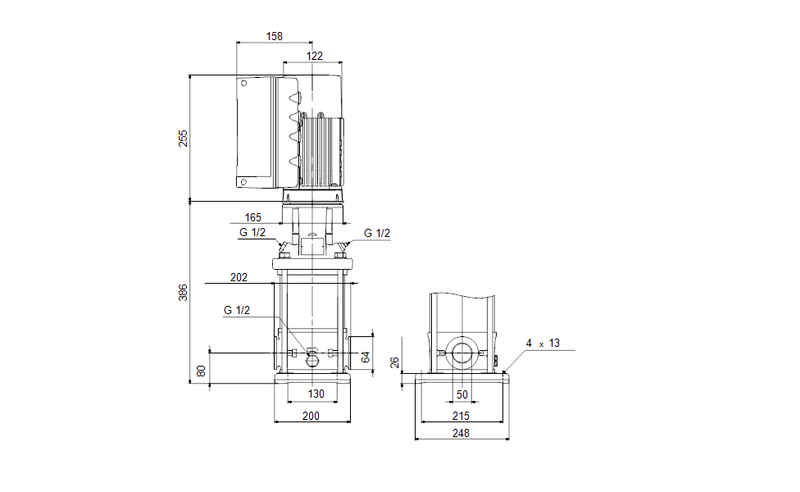

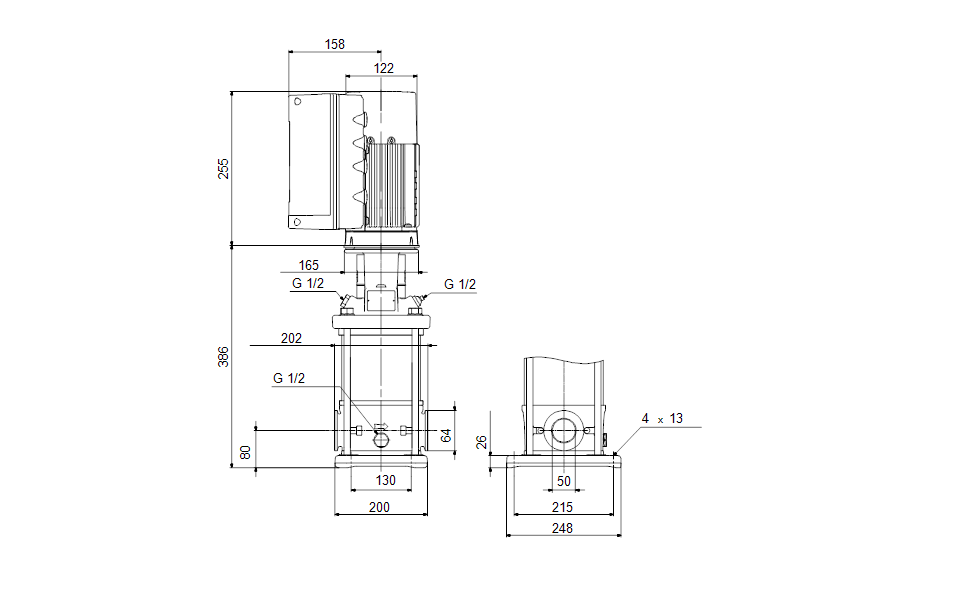

Dimensional Drawing

DWiring Diagram
