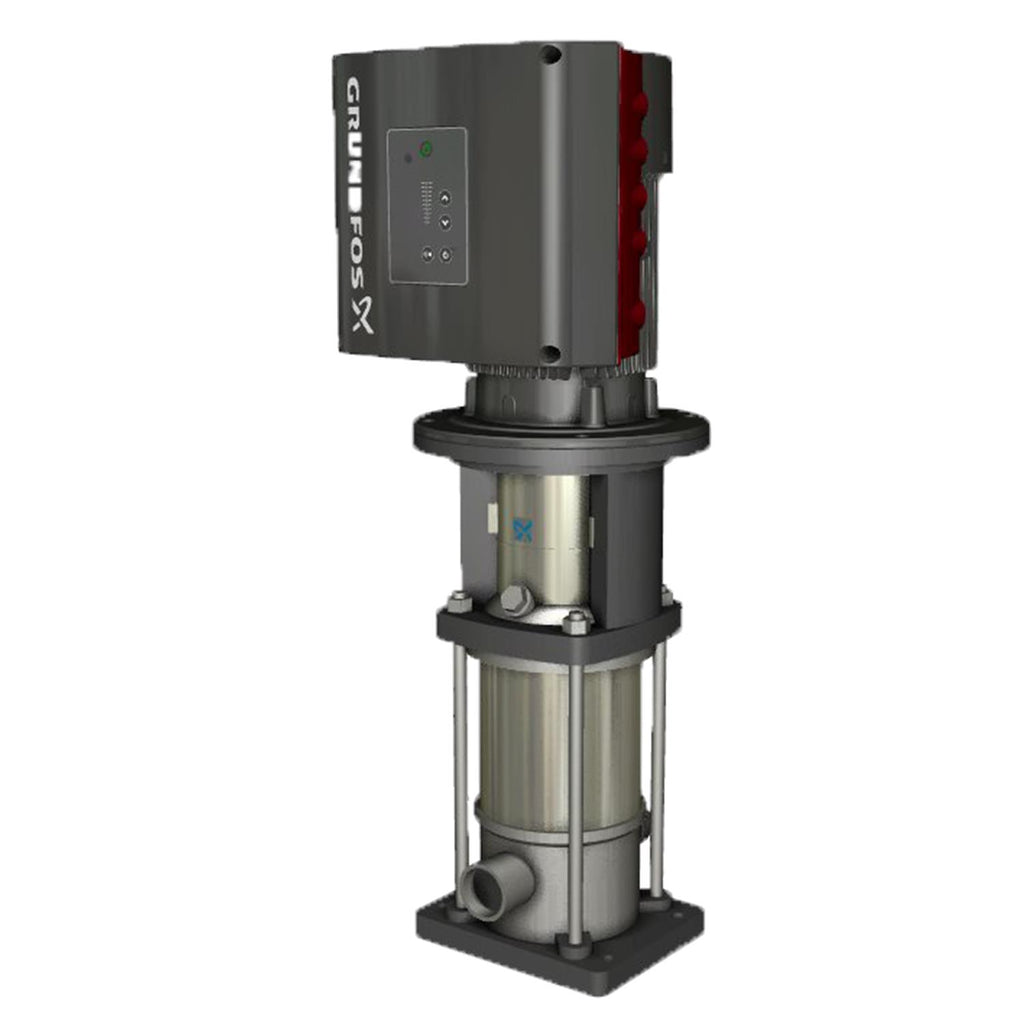

Grundfos 92560643 - CRNE 1-9 N-P-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92560643

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 92560643 CRNE 1-9 N-P-A-E-HQQE is a vertical, multistage inline stainless steel pump designed for industrial and commercial fluid handling where compact, high-pressure performance is required.

Key features

  • Vertical, inline multistage stainless steel construction for corrosion resistance and compact footprint
  • Designed for high-pressure centrifugal service and in-line installation suitable for tight mechanical layouts
  • Delivers reliable pressure and flow control for general process, transfer, and boosting applications

Applications

Suitable for boiler feed, pressure boosting, water transfer, process systems, and other industrial centrifugal pump uses where a vertical, multistage inline pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92560643

EAN 5715116277684
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498542
Connect code P
Connection PN 50
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 68.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 260.5 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.864
Motor standard NEMA
Motor type 80A
Net weight 57.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.73
Pressure rating for connection PN 50
Pressure sensor Y
Pump 0.75 kW
Pump speed on which pump data are based 3484 rpm
Pump version N
Pumped liquid Water
Rated current 1.65 A
Rated flow 9.69 US gpm
Rated head 190.6 ft
Rated power - P2 0.75 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 9
Standard NEMA
Type 80A
Type of connection PJE
Version N

Motor Curves

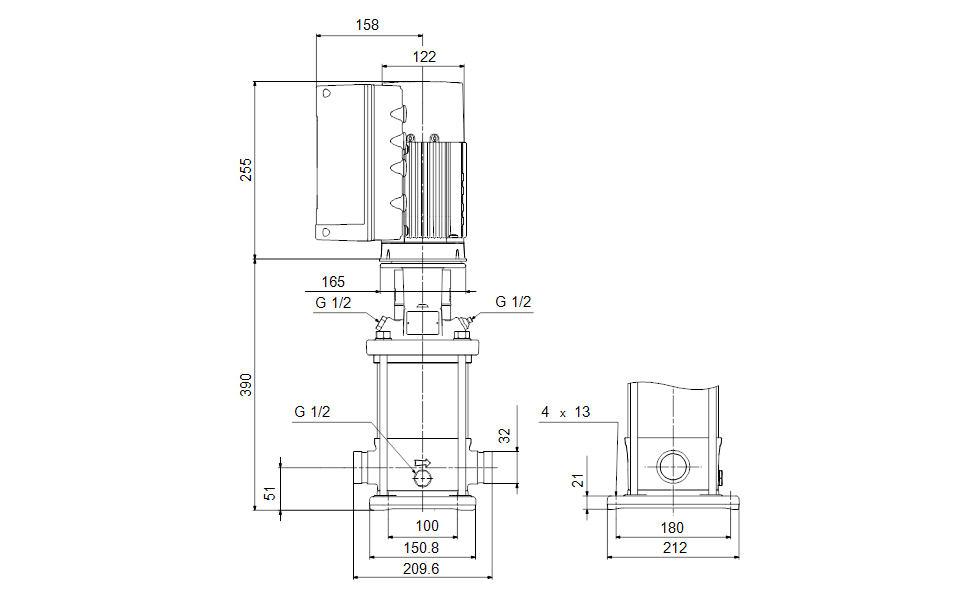

Dimensional Drawing

DWiring Diagram
