Grundfos 92560641 - CRNE 1-6 N-P-A-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 92560641

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

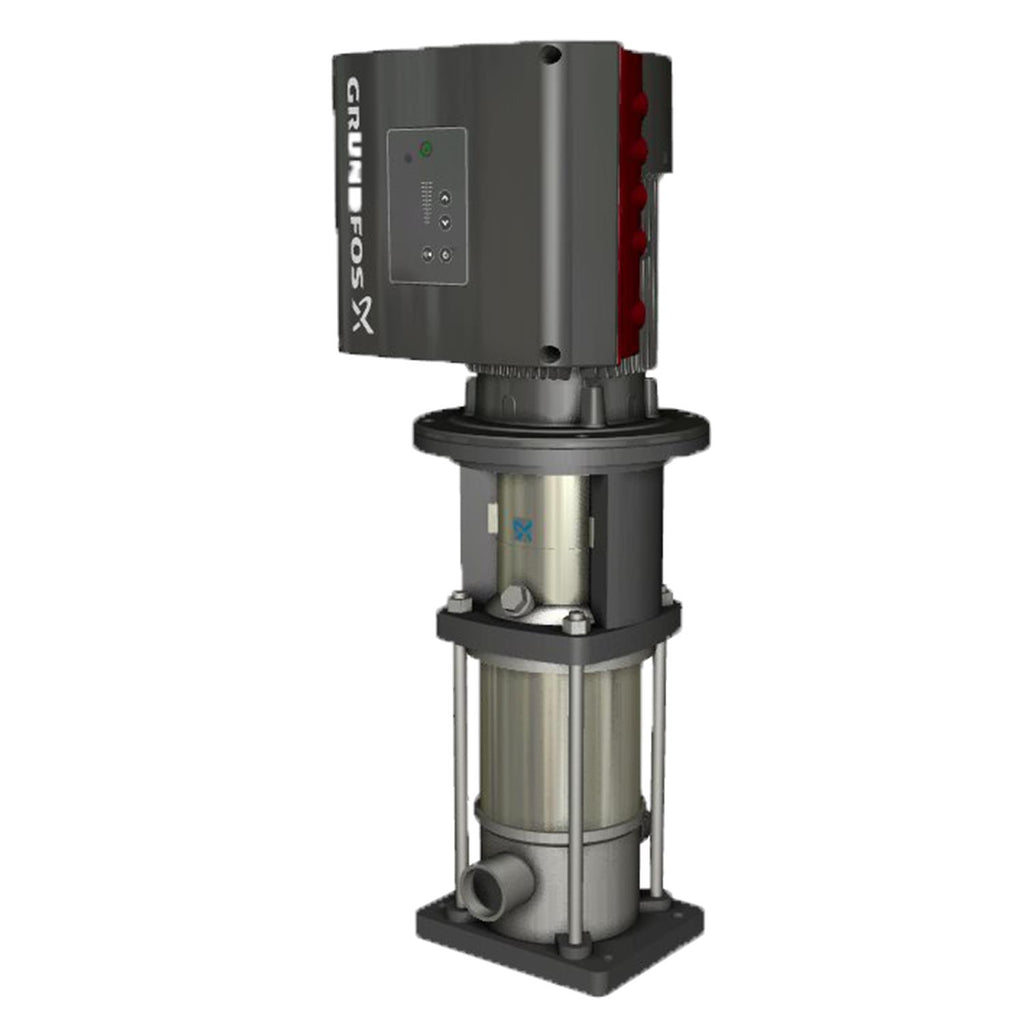

Grundfos 92560641 - CRNE 1-6 N-P-A-E-HQQE is a vertical, inline multistage stainless steel centrifugal pump for industrial and commercial fluid handling. It suits technicians and maintenance teams replacing or servicing high-pressure in-line pump systems.

Key features

  • Vertical, multistage inline configuration for staged pressure boost
  • Service Special listing and shop tags indicate common replacement or repair use
  • Durable stainless steel construction for corrosion resistance and long service life

Applications

Typical uses include high-pressure water transfer, boiler feed, industrial process circulation, and other in-line multistage pumping tasks where compact vertical installation is required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92560641

EAN 5715116277646
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498534
Connect code P
Connection PN 50
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 65.3 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 176.8 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.857
Motor standard NEMA
Motor type 71A
Net weight 54.3 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.55 kW
Power factor 1 0.68
Pressure rating for connection PN 50
Pressure sensor Y
Pump 0.55 kW
Pump speed on which pump data are based 3439 rpm
Pump version N
Pumped liquid Water
Rated current 1.35 A
Rated flow 9.69 US gpm
Rated head 133.9 ft
Rated power - P2 0.55 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 6
Standard NEMA
Type 71A
Type of connection PJE
Version N

Motor Curves

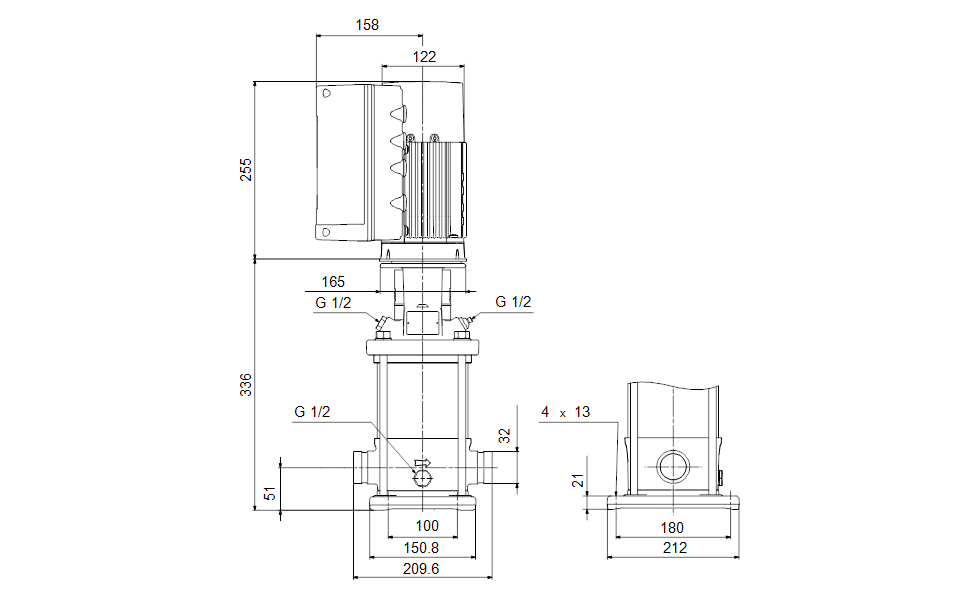

Dimensional Drawing

DWiring Diagram
