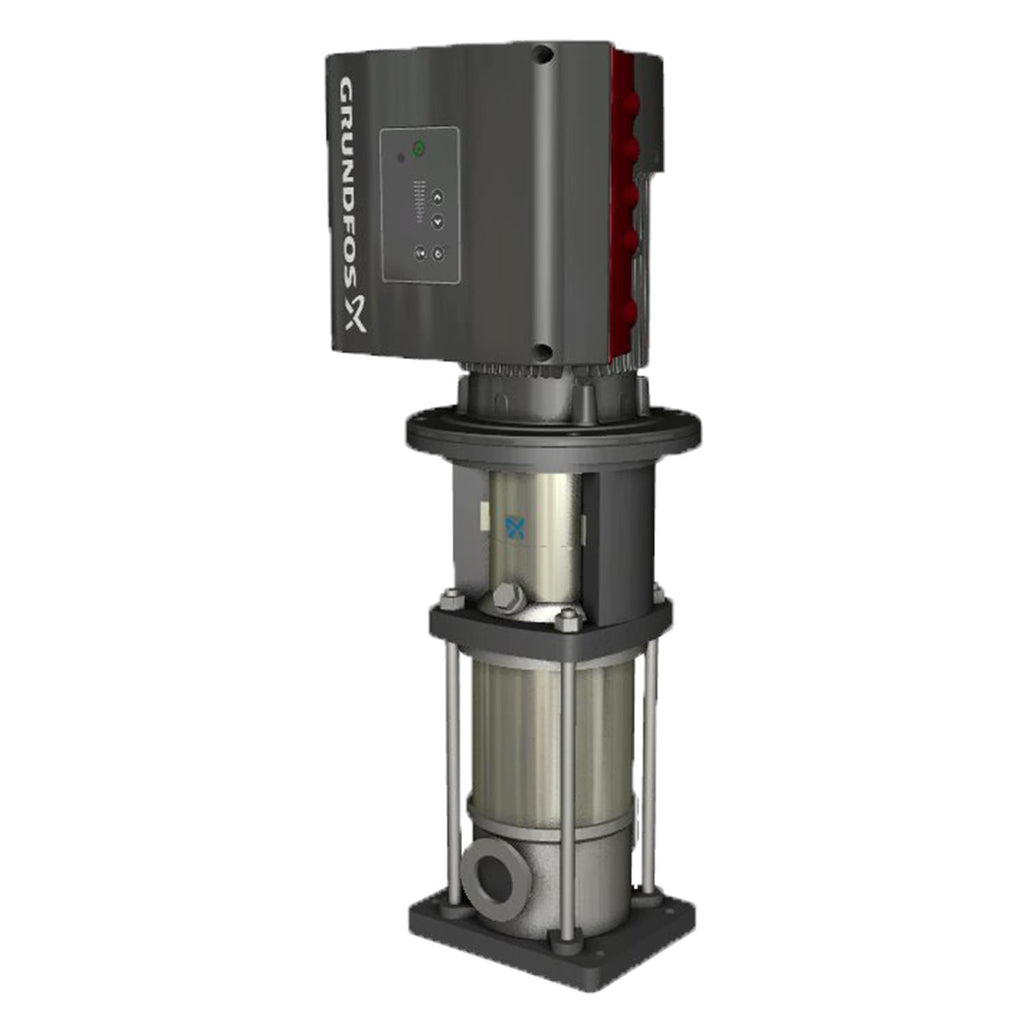

Grundfos 99384849 - CRNE 1-5 B-CX-T-E-HQQE | Vertical | Multistage | Inline | Stainless Steel

GRUNDFOSSKU: 99384849

Price:
Sale price$7,019.44
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99384849 - CRNE 1-5 B-CX-T-E-HQQE is a vertical, inline multistage stainless steel centrifugal pump designed for industrial fluid transfer and high-pressure applications used by service technicians and plant maintenance teams.

Key features

  • Vertical multistage inline design for compact, space-saving installations
  • Built for high-pressure centrifugal service and handling demanding duty cycles
  • Stainless steel construction providing corrosion resistance and long service life

Applications

Suitable for boiler feed, high-pressure transfer, process water systems, and general industrial pumping where compact, multistage inline pumps are required.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99384849

EAN 5713828245373
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498499
Connect code CX
Connection PN 25
Control panel Graphical
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 63.7 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 144.7 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at full load 1 0.864
Motor standard NEMA
Motor type 80A
Net weight 52.7 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 0.75 kW
Power factor 1 0.73
Pressure rating for connection PN 25
Pressure sensor N
Pump 0.75 kW
Pump speed on which pump data are based 3485 rpm
Pump version B
Pumped liquid Water
Rated current 1.65 A
Rated flow 9.69 US gpm
Rated head 106.3 ft
Rated power - P2 0.75 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.25
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 5
Standard NEMA
Type 80A
Type of connection TriClamp
Version B

Motor Curves

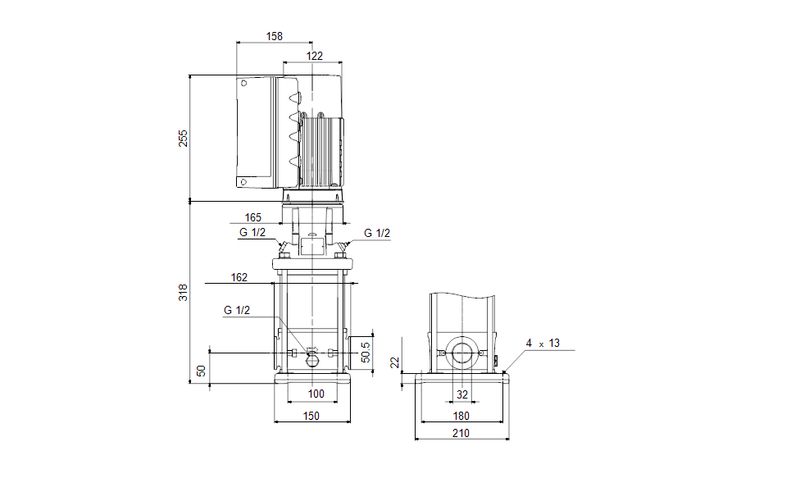

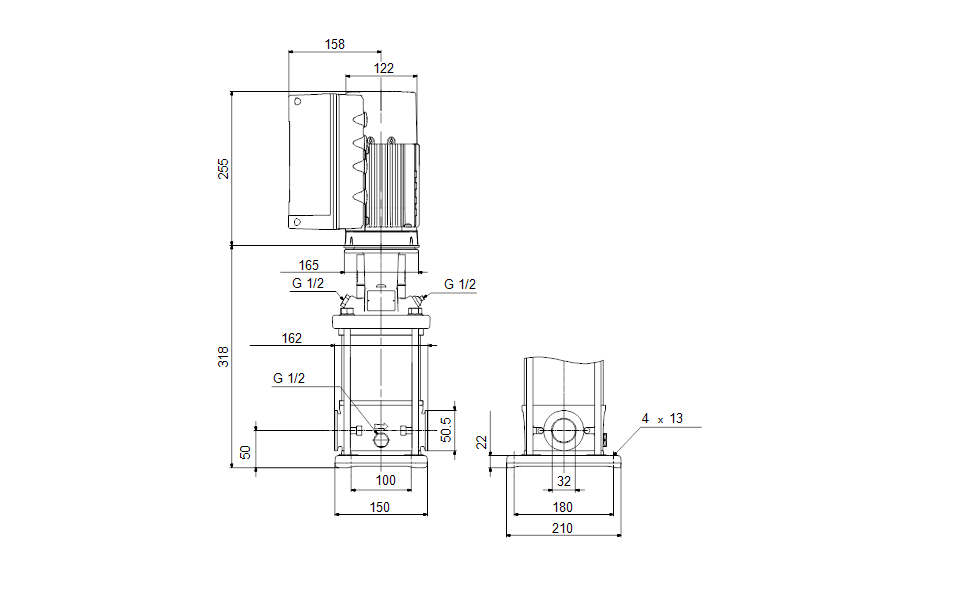

Dimensional Drawing

DWiring Diagram
