Grundfos 98452696 - CRNE 1-25 A-FGJ-H-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 98452696

Contact for price
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

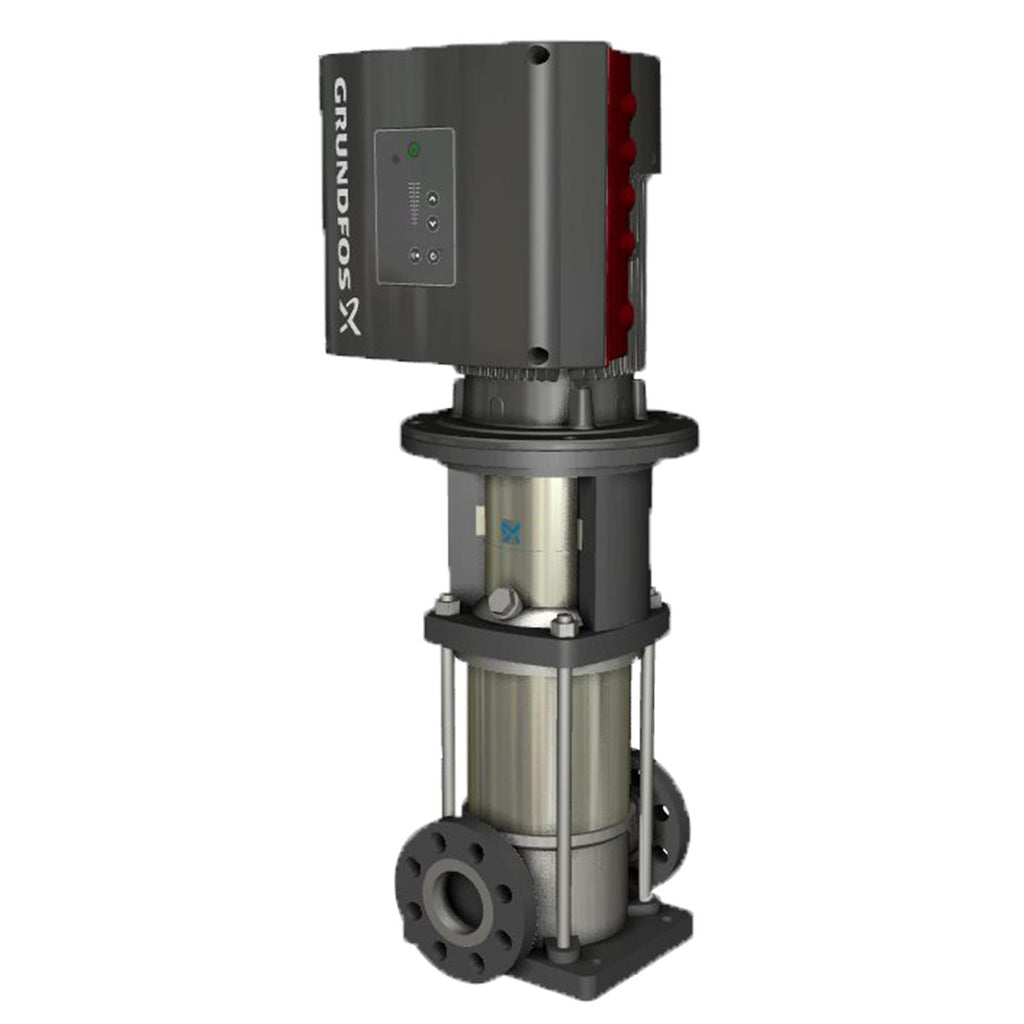

CRNE 1-25 A-FGJ-H-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless Variable Speed
CRNE3HP380-500V3.0-Phase60 HzIE5IP55Stainless steel

The Grundfos 98452696 (CRNE 1-25 A-FGJ-H-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless Variable Speed. All stainless steel construction with integrated variable frequency drive. Variable speed and full stainless for demanding chemical or food-grade applications. Nominal performance: 9.42US gpm at 572.8ft. Rated 380-500V, 3.0-Phase, 60 Hz.

Power
3HP
Voltage
380-500V
Phase
3.0-Phase
Max Flow
9.42US gpm
Max Head
572.8ft
Max Pressure
362.59psi
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Ultra-Premium Efficiency
IE5 motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product

Variable Speed Plus All Stainless

CRNE combines IE5 variable speed with 316 stainless steel wetted construction — the full specification for demanding chemical, food, and pharmaceutical pressure systems.

IE5 Permanent Magnet Motor

Highest efficiency class motor reduces operating cost. Especially effective in pressure systems that spend most runtime below maximum flow.

Integrated Drive — No Cabinet Required

VFD is inside the pump head. Eliminates separate drive panel, reduces installation footprint, and simplifies commissioning.

All Stainless Steel Wetted Path

Every surface in contact with the fluid is EN 1.4401 (316) stainless. Suitable for chlorinated water, mild acids, cleaning agents, and process chemicals.

iSOLUTIONS Connectivity

Supports MODBUS, PROFIBUS, BACnet, and Grundfos GO for full BMS integration and remote performance monitoring.

Cartridge Seal — No Adjustment

Factory-set cartridge seal. No field adjustment on installation. Seal variants available for water, chemical, and high-temperature service.

Model Information — CRNE 1-25 A-FGJ-H-E-HQQE
Series: CRNE
Model Code: CRNE 1-25 A-FGJ-H-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Flange Rating: PN 25
Technical Specifications
Model Number 98452696
Product Series CRNE
Series Description Vertical Multistage Centrifugal Pump — All Stainless Variable Speed
Power 3HP
Voltage 380-500V
Phase 3.0-Phase
Frequency 60 Hz
Motor Speed 360-4000rpm
Pump Speed 3519rpm
Full Load Current 4,15-3,4A
Motor Type 90LD
Motor Protection ELEC
Motor Efficiency Class IE5
Motor Efficiency 90.1%
Insulation Class F
Protection Class (IP) IP55
Nominal Flow 9.42US gpm
Nominal Head 572.8ft
Max Operating Pressure 362.59psi
Max Fluid Temperature 248°F
Max Ambient Temperature 122°F
Inlet Connection DN 25/32
Outlet Connection DN 25/32
Pipe Pressure Rating PN 25
Pipe Standard DIN / ANSI / JIS
Impeller Material Stainless steel
Housing Material Stainless steel
Shaft Seal HQQE
Approvals / Certifications CE, UKCA, SEPRO, RCM
Important Notices
Electrical Verify supply voltage, phase, and frequency match nameplate before installation: 380-500V, 3.0-Phase, 60 Hz.
Temperature limits Do not exceed max fluid temperature 248°F or max ambient temperature 122°F. Exceeding limits damages seals and motor insulation.
Dry running Do not run dry. CRNE pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations.
Maintenance Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation.
Documentation
✓ Installation and Operating Manual (IOM) — CRNE Series
✓ Product Data Sheet — CRNE 1-25 A-FGJ-H-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
EAN 5711495297008
Approvals CE
Approvals for drinking water WRAS
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 98498400
Connect code FGJ
Connection PN 25
Control panel Standard
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange rating inlet 300 lb
Flange size for motor FT115
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 99.9 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code H
Material Pricing Group 31
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 737.6 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.7
Model A
Motor FT115
Motor efficiency at full load 1 0.901
Motor standard IEC
Motor type 90LD
Net weight 84.1 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 2.2 kW
Power factor 1 0.93-0.87
Pressure rating for connection PN 25
Pressure sensor N
Pump 2.2 kW
Pump speed on which pump data are based 3501 rpm
Pump version A
Pumped liquid Water
Rated current 4.15-3.40 A
Rated flow 9.69 US gpm
Rated head 558.8 ft
Rated power - P2 2.2 kW
Rated speed 360-4000 rpm
Rated voltage 3 x 380-500 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 25
Standard IEC
Type 90LD
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

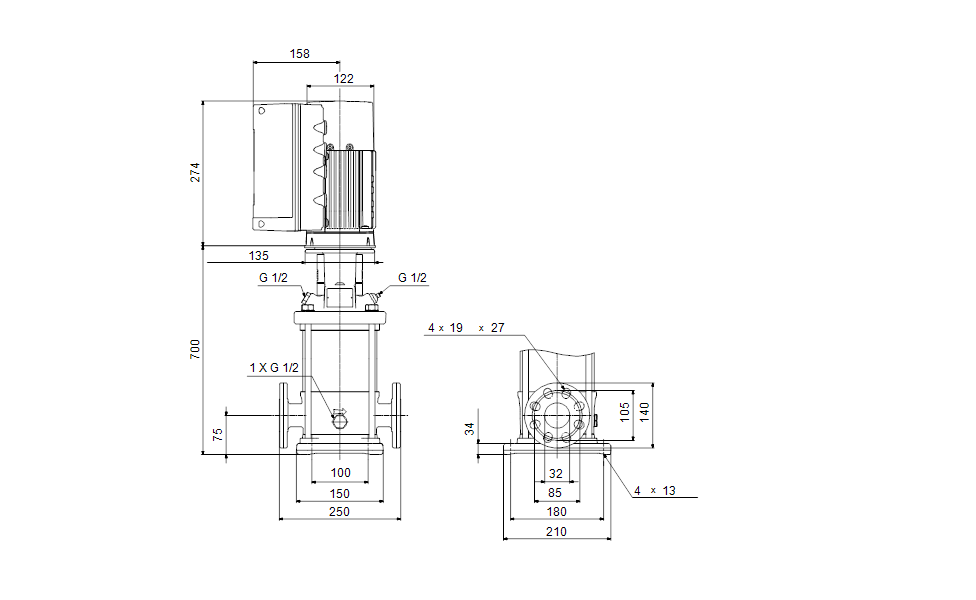

Dimensional Drawing

DWiring Diagram
