Grundfos 99472695 - CRNE 1-23 Q-P-T-E-HQQE | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99472695

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

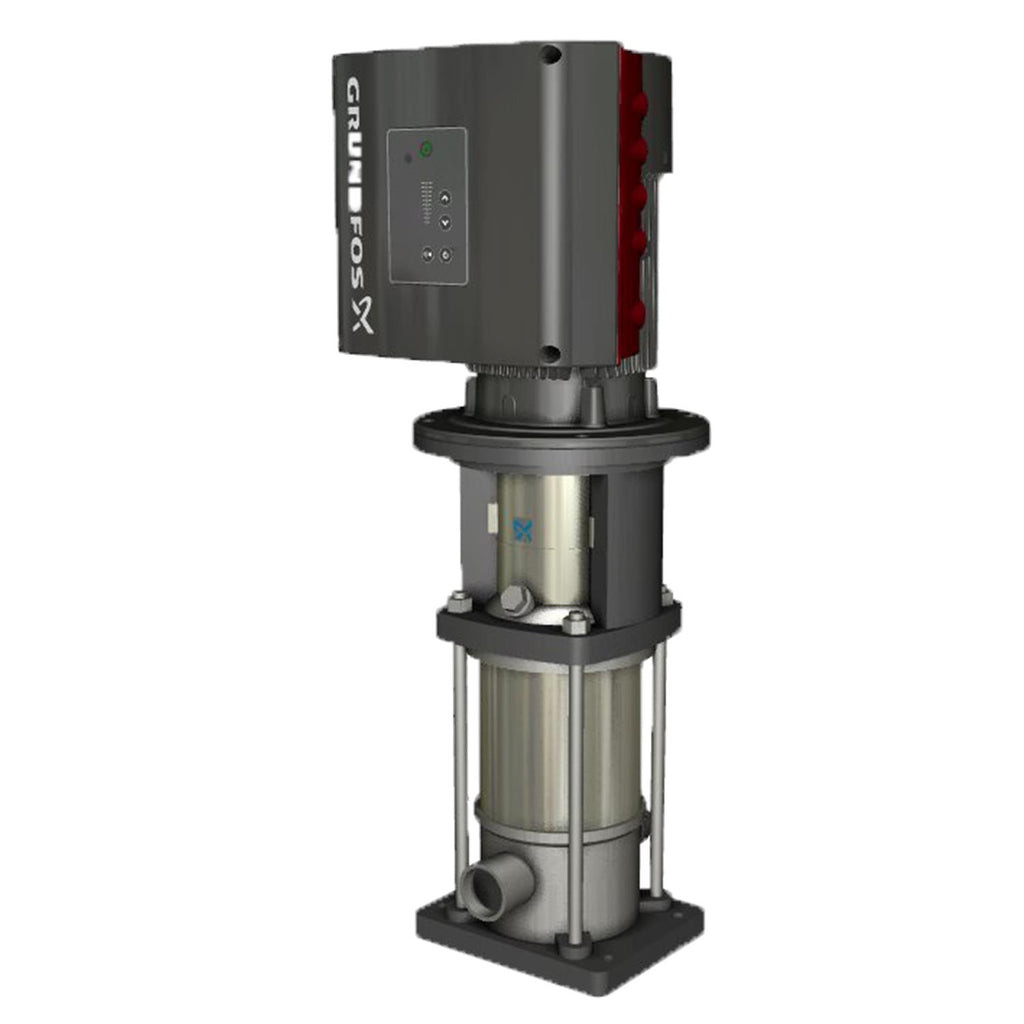

CRNE 1-23 Q-P-T-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings. The pump is fitted with a 3-phase, fan-cooled, permanent-magnet, synchronous motor. The motor efficiency is classified as IE5 in accordance with IEC 60034-30-2. The motor includes a frequency converter and PI controller in the motor terminal box. This enables continuously variable control of the motor speed, which again enables adaptation of the performance to a given requirement. The terminal box has a number of inputs and outputs enabling the motor to be used in advanced applications where many inputs and outputs are required: two dedicated digital inputs
three analog inputs, 0(4)-20 mA, 0-5 V, 0-10 V, 0. 5-3. 5 V
5 V voltage supply to potentiometer and sensor
one analog output, 0-10 V, 0(4)-20 mA
two configurable digital inputs or open-collector outputs
two Pt100/Pt1000 inputs
LiqTec, dry-running protection sensor input
Grundfos Digital Sensor input and output
24 V voltage supply for sensors
two signal-relay outputs (potential-free contacts)
GENIbus connection
interface for Grundfos CIM fieldbus module.

EAN 5713829681675
Approvals CE
Built-in motor protection ELEC
Code for rubber E
Code for shaft seal HQQE
Config. file no 99080696
Connect code P
Connection PJE
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Frequency converter Built-in
Function Module FM300 - Advanced
Gross weight 139.0 lb
IE Efficiency class IE5
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code T
Material Pricing Group 31
Max pressure at stated temp 725 psi / 250 °F
Maximum ambient temperature 122 °F
Maximum head 1451 ft
Maximum operating pressure 50 bar
Model A
Motor efficiency at full load 1 0.902
Motor standard NEMA
Motor type 132E
Net weight 128.0 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 5.5 kW
Power factor 1 0.91-0.89
Pressure sensor N
Pump 5.5 kW
Pump speed on which pump data are based 5200 rpm
Pump version Q
Pumped liquid Water
Rated current 9.40-8.60 A
Rated flow 15.4 US gpm
Rated head 989.5 ft
Rated power - P2 5.5 kW
Rated speed 480-5900 rpm
Rated voltage 3 x 440-480 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Stages 23
Standard NEMA
Type 132E
Type of connection PJE
Version Q

Motor Curves

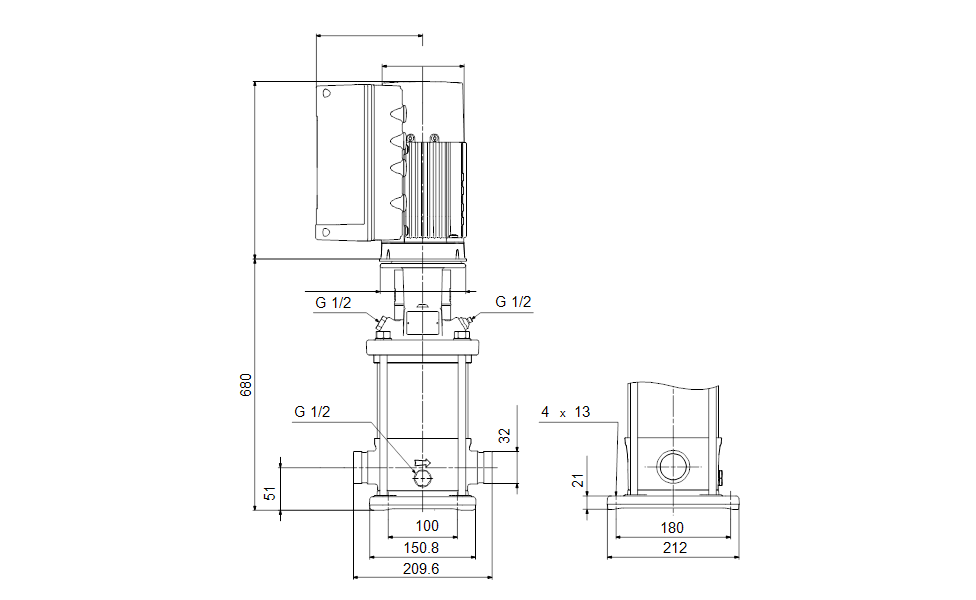

Dimensional Drawing
