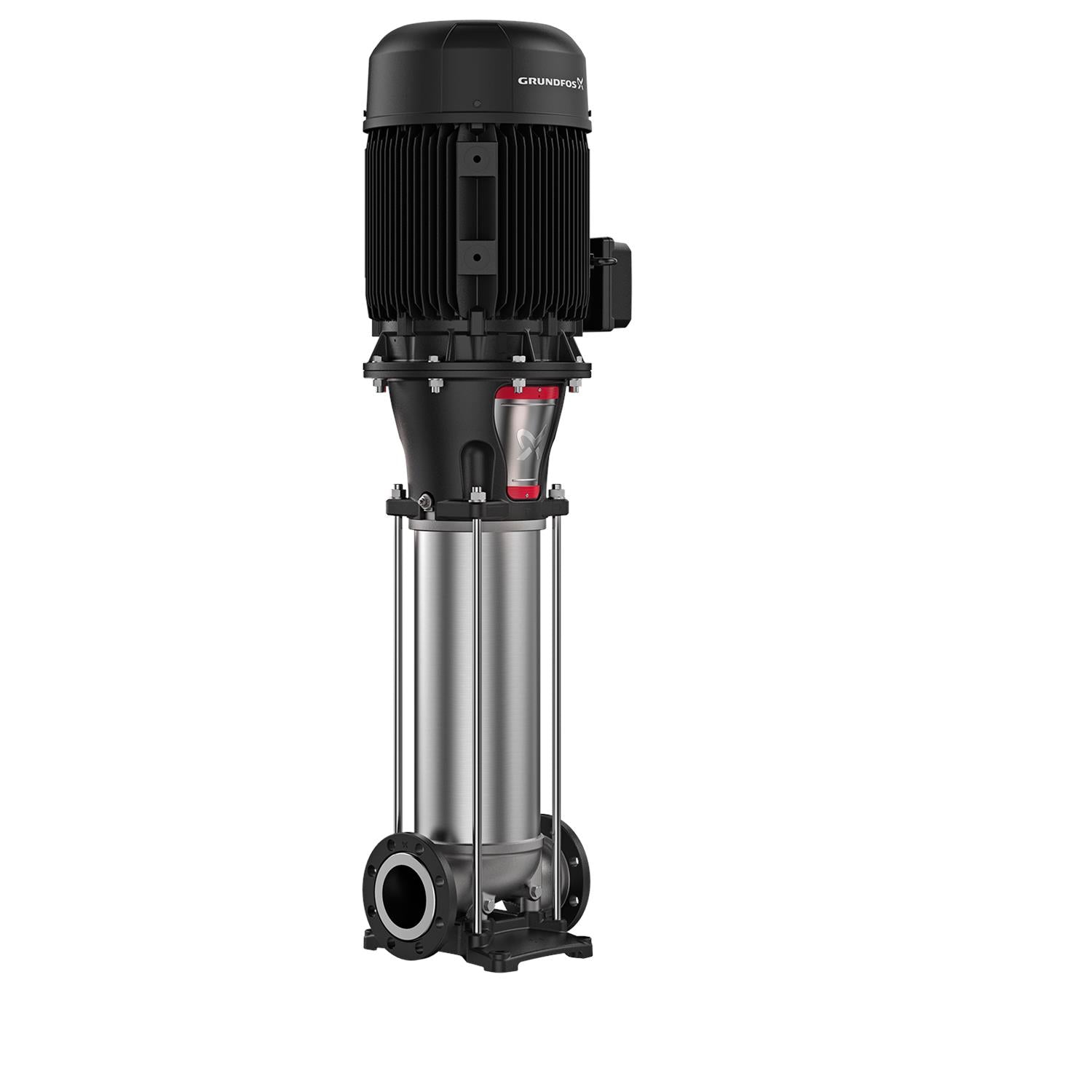

Grundfos 99505245 - CRN 95-5-2 A-G-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $12,225.82
GRUNDFOSSKU: 99505245

Price:
Sale price$16,339.18 Regular price$28,565.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 99505245 - CRN 95-5-2 A-G-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 99505245 - CRN 95-5-2 A-G-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure water transfer and circulation tasks.

With its robust construction and advanced design, the CRN series is suitable for both commercial and industrial environments. This model features multiple stages to enhance pressure capabilities, ensuring optimal flow rates and energy efficiency.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help!

EAN 5713830185537
Applications Industrial applications
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection ANSI
Connection 2 300 lb
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.92
Flange size for motor 365TSC
Flange standard ANSI
Frequency 60 HZ
Frequency converter NONE
Gross weight 573.0 lb
Impeller Stainless steel
Impellers 5
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material certified according to European standards
Material code A
Material Pricing Group 33
Max pressure at stated temp 363 psi / 194 °F
Maximum head 668.7 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 365TSC
Motor standard NEMA
n rpm 3550rpm
Net weight 315.0 lb
Number of reduced-diameter impellers 2
Power (P2) required by pump 75 HP
Pressure rating 300 lb
Pressure rating for connection 300 lb
Product family CRN 95
Pump 75 HP
Pump housing Stainless steel
Pump inlet 4
Pump outlet 4
Pump version A
Pumped liquid Water
Rated flow 500 US gpm
Rated flow 2 500 US gpm
Rated head 485.3 ft
Rated head 2 485.3 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Stages 5
Standard NEMA
Support bearing Graflon
Thrust handling device N
Type of connection ANSI
Version A

Motor Curves

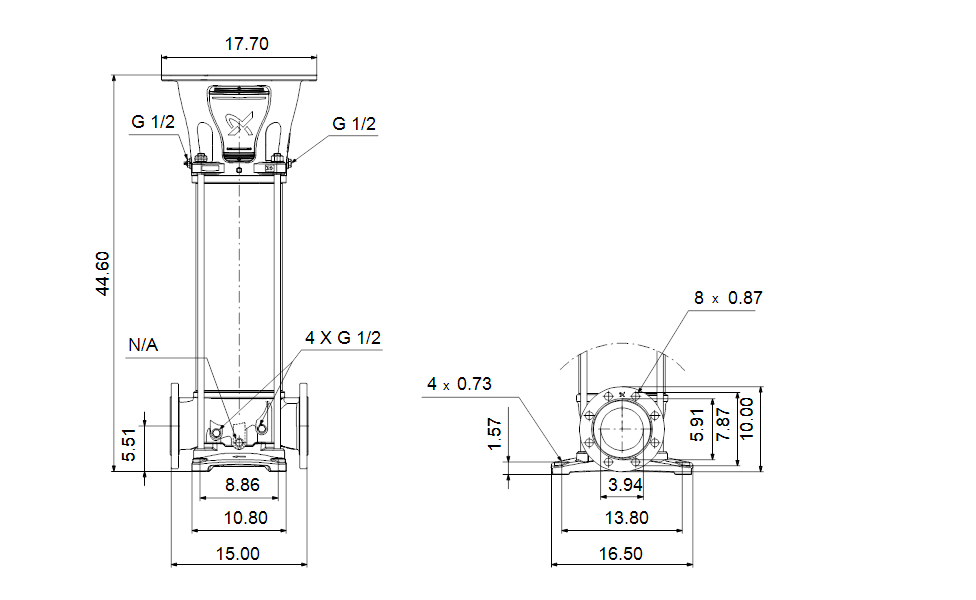

Dimensional Drawing
