Grundfos 99145110 - CRN 95-3-2 A-P-A-V-HQQV | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 99145110

Price:
Sale price$40,348.61
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 99145110 - CRN 95-3-2 A-P-A-V-HQQV is a vertical multistage centrifugal pump suited for industrial and commercial fluid transfer where high pressure and compact vertical installation are required.

Key features

  • Designed for industrial applications and rugged service environments
  • Vertical, multistage in-line centrifugal configuration for high-pressure delivery
  • Provides steady, efficient pressure boost and space-saving vertical footprint

Applications

Typical uses include boiler feed, high-pressure water supply, process water transfer, RO feed systems, and general industrial pressure boosting where a vertical multistage pump is specified.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 99145110

EAN 5712607591229
Applications Industrial applications
Actual impeller diameter 6.07 in
Approvals for drinking water NSF/ANSI 372
Bearing 1 WC/WC
Bearing 2 Graflon
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code P
Connection 1000 psi
Cooling TEFC
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 6.07 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP54
Flange size for motor 324TSC
Frequency converter NONE
Full load SF current 102/51 A
Gross weight 1020.0 lb
IE efficiency IE3 93
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 2
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 60 Hz
Material certified according to European standards
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 369.8 ft
Maximum operating pressure 25 bar
Model A
Motor 324TSC
Motor efficiency at full load 1 0.936
Motor standard NEMA
Motor type BALDOR
Net weight 756.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
Power (P2) required by pump 30 kW
Power factor 1 0.86
Pressure rating for connection 1000 psi
Product family CRN 95
Pump 30 kW
Pump speed on which pump data are based 3538 rpm
Pump version A
Pumped liquid Water
Rated current 90/45 A
Rated flow 500 US gpm
Rated head 258.2 ft
Rated power - P2 30 kW
Rated speed 3540 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection 4 inch
Size of outlet connection 4 inch
Stages 3
Standard NEMA
Support bearing Graflon
Thrust handling device N
Type BALDOR
Type of connection PJE
Version A

Motor Curves

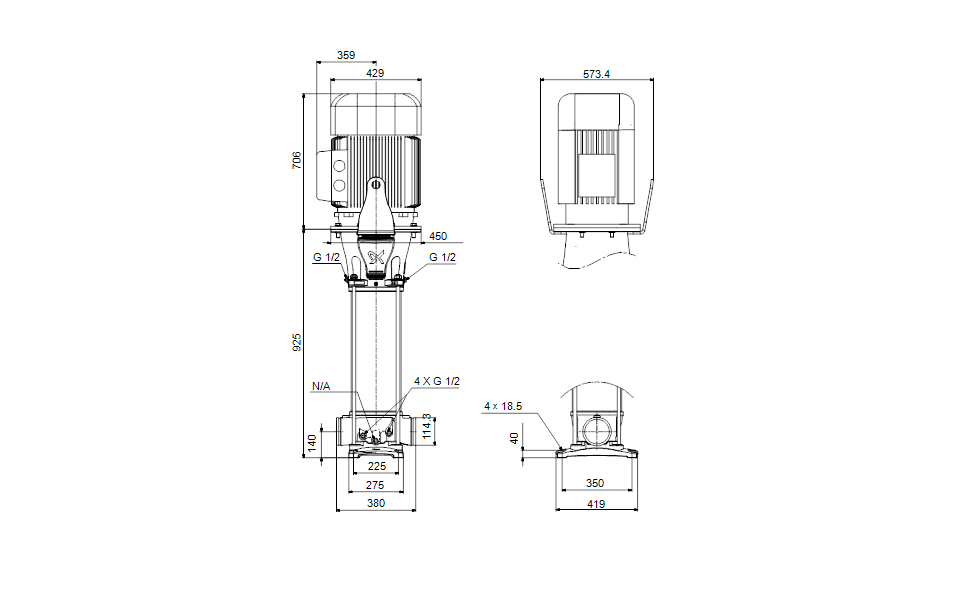

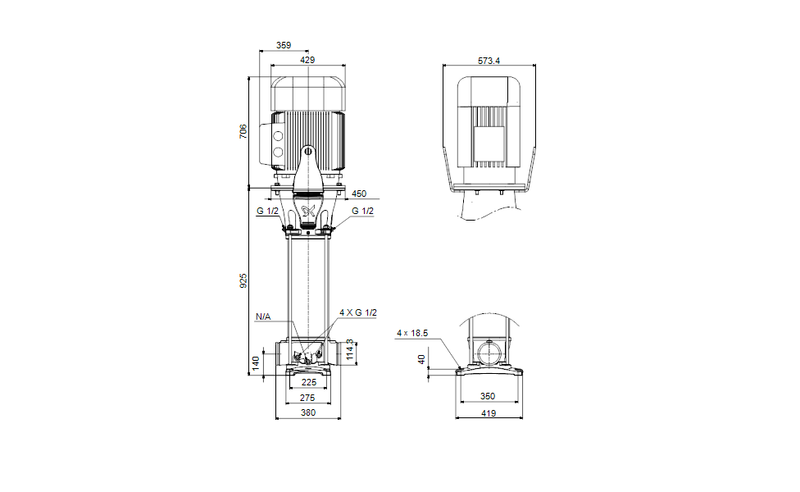

Dimensional Drawing

DWiring Diagram
