Description

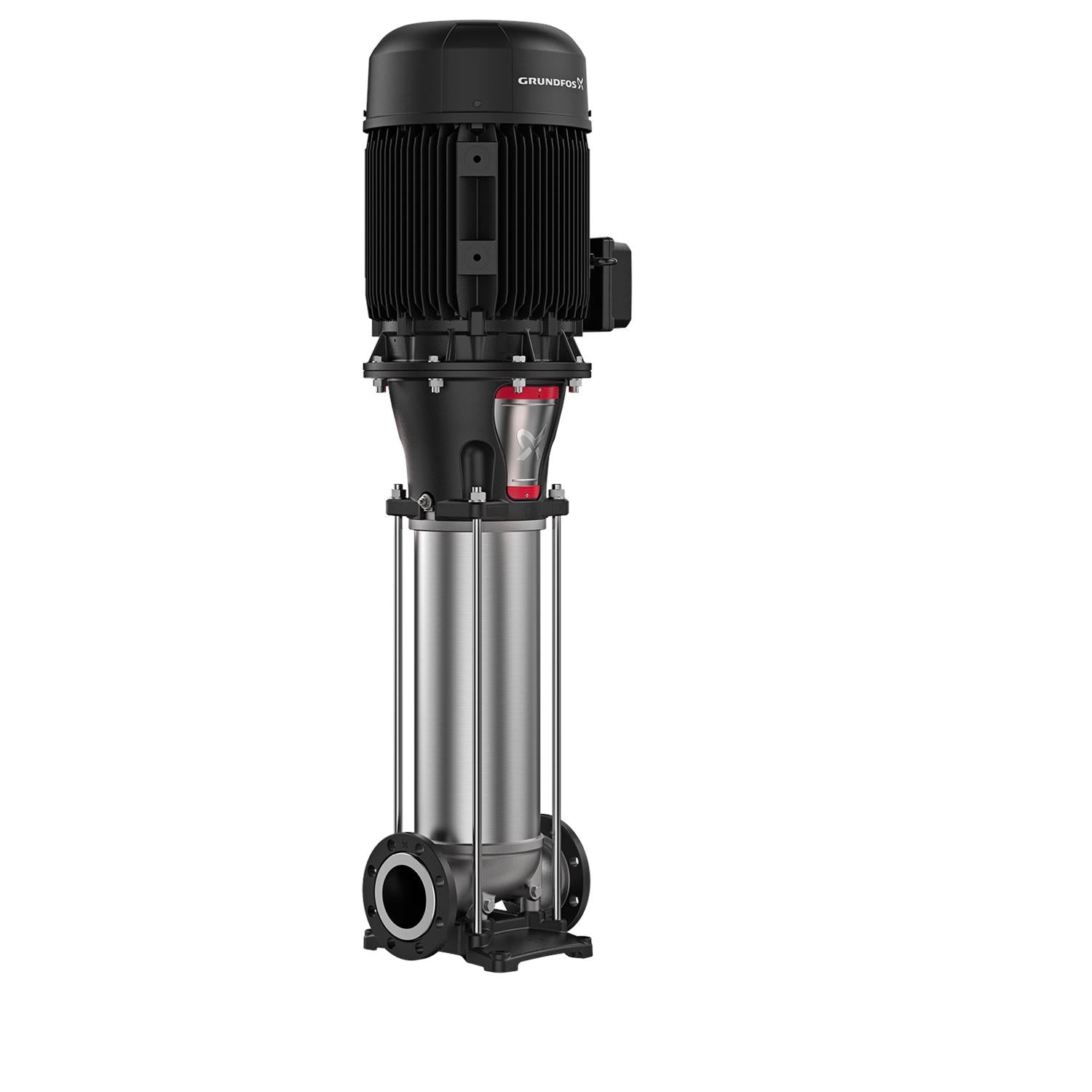

CRN 95-3-1 A-G-A-V-HQQV | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges.
EAN
5713830184868
Applications
Industrial applications
Material Pricing Group
33
Code for rubber
V
Material code
A
Density
62.29 lb/ft³
Max pressure at stated temp
232 psi / 194 °F
Maximum operating pressure
232.06 psi
Support bearing
Graflon
Selected liquid temperature
68 °F
Type of connection
ANSI
Bearing 1
WC/WC
Pressure rating
150 lb
Flange size for motor
326TSC
Pumped liquid
Water
Pump outlet
4
Pump inlet
4
Connect code
G
Liquid temperature range
-4 .. 194 °F
Net weight
278.0 lb
Gross weight
536.0 lb
Power (P2) required by pump
50 HP
Pressure rating for connection
150 lb
Frequency converter
NONE
DOE Pump Energy Index CL
0.92
Stages
3
Rated flow
500 US gpm
Flange standard
ANSI
Model
A
Version
A
Diameter
6.07 in
Motor
326TSC
Rubber
V
Maximum head
408.5 ft
Approvals for drinking water
NSF/ANSI 372
Motor standard
NEMA
Material certified according to
European standards
Thrust handling device
N
Rated head
294.6 ft
Actual impeller diameter
6.07 in
Curve tolerance
ISO9906:2012 3B
Impellers
3
Connection
ANSI
Impeller
Stainless steel
Code for shaft seal
HQQV
Pump housing
Stainless steel
Number of reduced-diameter impellers
1
Pump
50 HP
Low NPSH
N
Standard
NEMA
Pump version
A
Motor Curves

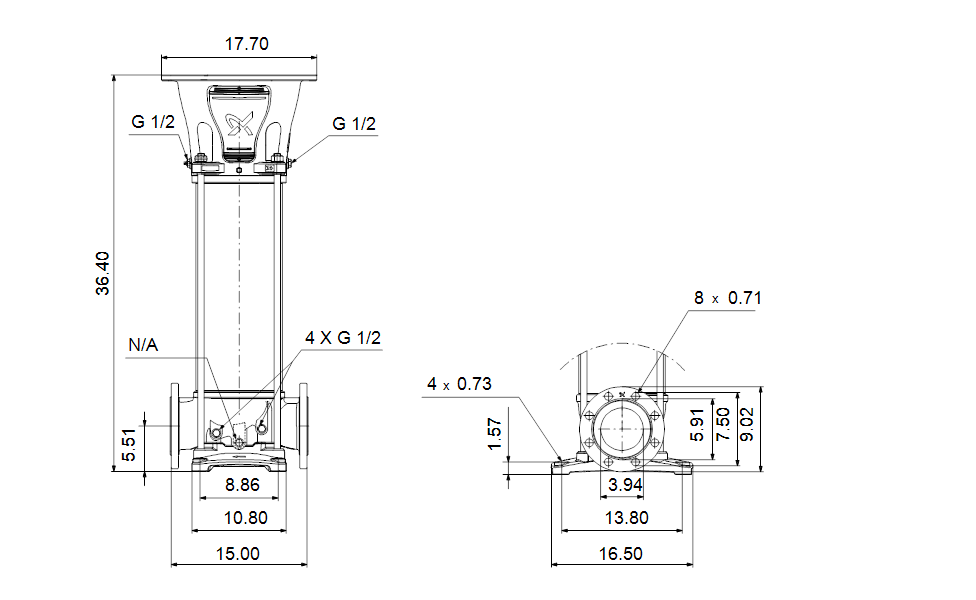

Dimensional Drawing
