Grundfos 99400206 - CRN 95-2-2 A-P-A-E-HQQE
Grundfos 99400206 - CRN 95-2-2 A-P-A-E-HQQE
Grundfos 99400206 - CRN 95-2-2 A-P-A-E-HQQE
Grundfos 99400206 - CRN 95-2-2 A-P-A-E-HQQE

Grundfos 99400206 - CRN 95-2-2 A-P-A-E-HQQE

Save $9,037.92
GRUNDFOSSKU: 99400206
Price:
$9,791.08 $18,829.00
Delivery date to be confirmed on Sales Order
Chat or Call for most up to date lead times. (781) 281-8905

Description

CRN 95-2-2 A-P-A-E-HQQE | Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. The Grundfos cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via PJE (Victaulic®) couplings.

EAN 5713828495549
Applications Industrial applications
Material Pricing Group 33
Code for rubber E
Material code A
Density 62.29 lb/ft³
Max pressure at stated temp 363 psi / 250 °F
Maximum operating pressure 362.59 psi
Support bearing Graflon
Selected liquid temperature 68 °F
Type of connection PJE
Bearing 1 WC/WC
Pressure rating 1000 psi
Flange size for motor 284TC
Pumped liquid Water
Pump outlet 4
Pump inlet 4
Connect code P
Liquid temperature range -4 .. 248 °F
Net weight 238.0 lb
Gross weight 496.0 lb
Power (P2) required by pump 25 HP
Pressure rating for connection 1000 psi
Frequency converter NONE
DOE Pump Energy Index CL 0.92
Stages 2
Rated flow 500 US gpm
Flange standard PJE
Model A
Version A
Diameter 6.07 in
Motor 284TC
Rubber E
Maximum head 232 ft
Approvals for drinking water NSF/ANSI 61,NSF/ANSI 372
Motor standard NEMA
Material certified according to European standards
Thrust handling device N
Rated head 153.2 ft
Actual impeller diameter 6.07 in
Curve tolerance ISO9906:2012 3B
Impellers 2
Connection PJE
Impeller Stainless steel
Code for shaft seal HQQE
Pump housing Stainless steel
Number of reduced-diameter impellers 2
Pump 25 HP
Low NPSH N
Standard NEMA
Pump version A

Motor Curves

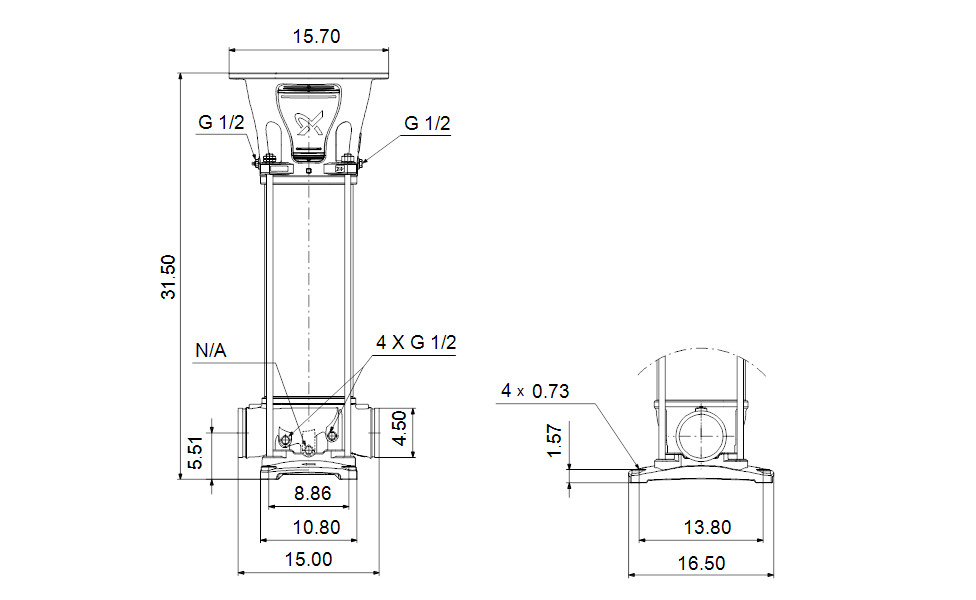

Dimensional Drawing
