EAN
5712607590246
Applications
Industrial applications
Actual impeller diameter
6.07 in
Approvals
CE
Approvals for drinking water
NSF/ANSI 61,NSF/ANSI 372
Bearing 1
WC/WC
Built-in motor protection
PTC
Code for rubber
E
Code for shaft seal
HQQE
Connect code
G
Connection
ANSI
Connection 2
150 lb
Cooling
TEFC
Curve tolerance
ISO9906:2012 3B
Density
62.29 lb/ft³
Diameter
6.07 in
DOE Pump Energy Index CL
0.93
Enclosure class (IEC 34-5)
55 Dust/Jetting
Eta 1/1
90.5-91.0%
Flange size for motor
254TC
Frequency
60 HZ
Frequency converter
NONE
Full load SF current
43-39,0/19,6 A
Gross weight
701.0 lb
IE Eff. Class
NEMA Premium / IE3 60Hz
IE efficiency
classNEMA Premium / IE3 60Hz
IE Efficiency class
NEMA Premium / IE3 60Hz
Impeller
Stainless steel
Impellers
1
Insulation
F
Insulation class (IEC 85)
F
Liquid max temp
120°C
Liquid temperature range
-4 .. 248 °F
Low NPSH
N
Material certified according to
European standards
Material code
A
Material Pricing Group
6
Max pressure at stated temp
232 psi / 250 °F
Maximum ambient temperature
104 °F
Maximum head
119.1 ft
Maximum operating pressure
232.06 psi
Maximum permissible operating pressure
16bar
Model
A
Motor
254TC
Motor efficiency at 1/2 load
93.0-92.5 %
Motor efficiency at 3/4 load
92.0-92.5 %
Motor efficiency at full load 1
90.5-91.0 %
Motor protec
PTC
Motor standard
NEMA
Motor type
160AA
n rpm
3490-3530rpm
Net weight
439.0 lb
Number of poles
2
Number of reduced-diameter impellers
1
P2 HP
15 HP
P2 kW
11kW
Phase
3
Power (P2) required by pump
15 HP
Power factor 1
0.91-0.89
Pressure rating
150 lb
Pressure rating for connection
150 lb

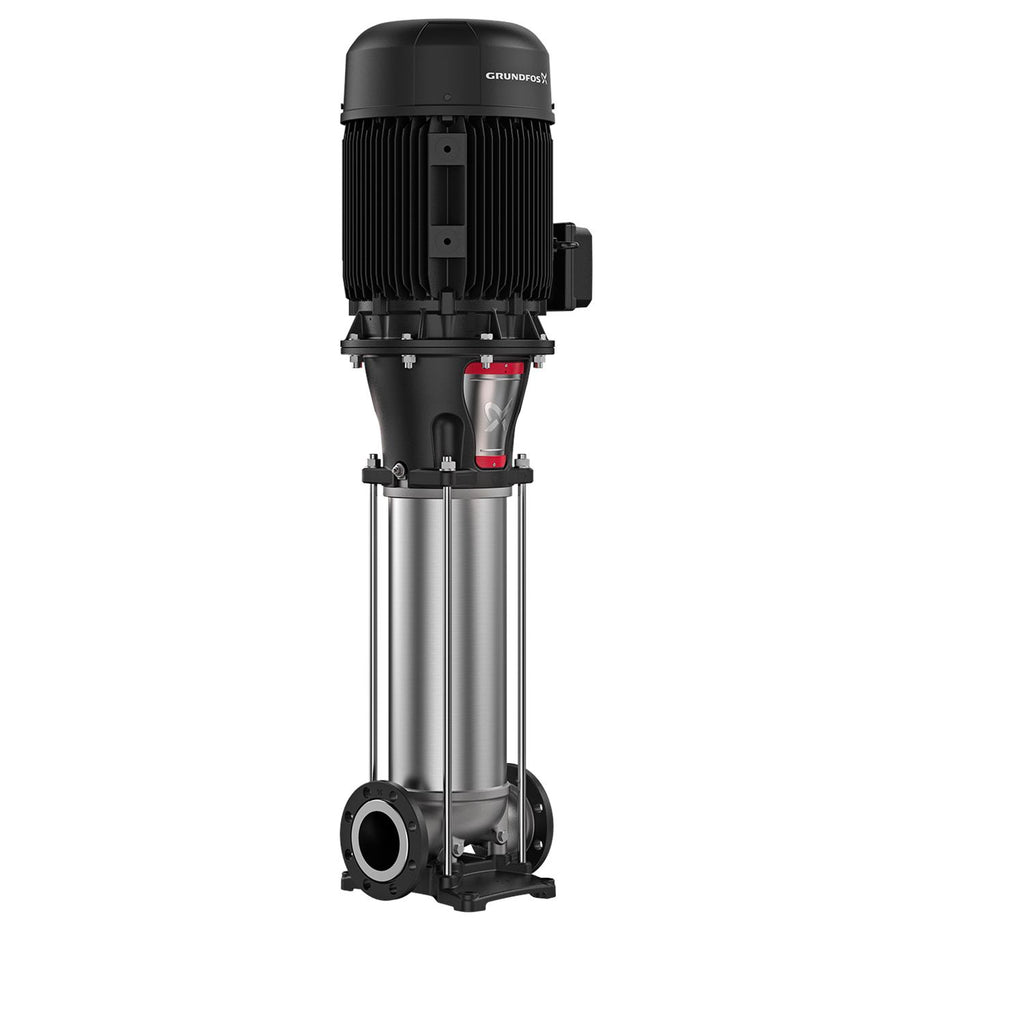

Product family
CRN 95
Pump
15 HP
Pump housing
Stainless steel
Pump inlet
4
Pump outlet
4
Pump version
A
Pumped liquid
Water
Rated current
37,5-34,0/17,0 A
Rated flow
500 US gpm
Rated flow 2
500 US gpm
Rated head
76.78 ft
Rated head 2
76.78 ft
Rated power - P2
15 HP
Rated speed
3490-3530 rpm

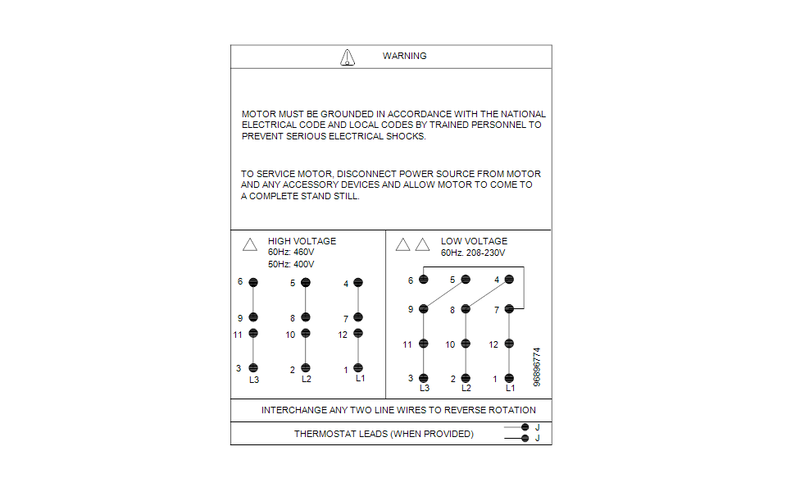

Rated voltage
3 x 208-230DD/460D V
Real Time
Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber
E
Selected liquid temperature
68 °F
Service factor
1.15
Shaft seal
HQQE
Stages
1
Standard
NEMA
Starting current
680-900 %
Support bearing
Graflon
Thrust handling device
N
Type
160AA
Type of connection
ANSI
Version
A
