Grundfos 97737646 - CRN 64-5-2 H-G40-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $11,270.95
GRUNDFOSSKU: 97737646

Price:
Sale price$15,063.05 Regular price$26,334.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97737646 - CRN 64-5-2 H-G40-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model features a robust construction and advanced design, making it suitable for various fluid handling tasks. It is categorized under horizontal multistage centrifugal pumps, ensuring optimal flow rates and pressure capabilities. The CRN series is known for its versatility and durability, making it an ideal choice for both booster and end suction applications.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team. We are here to help you find the perfect solution for your pumping needs.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G40
Connection PN 40
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 435.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 248°F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Maximum head 584.3 ft
Maximum operating pressure 435.11 psi
Model B
Motor 324TC
Motor standard NEMA
n rpm 3550rpm
Net weight 247.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 40
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 467.5 ft
Rubber E
Sales region USA
Shaft Product name:CRN 64-5-2 H-G40-A-E-HQQE
Shaft seal HQQE
Stages 5
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

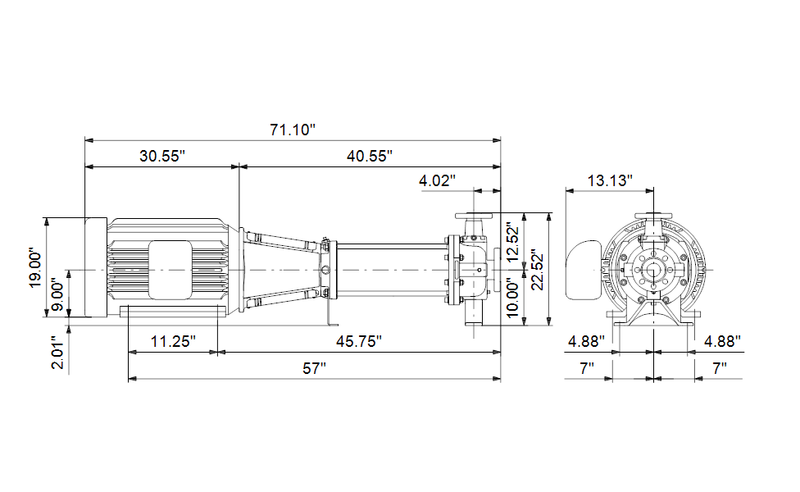

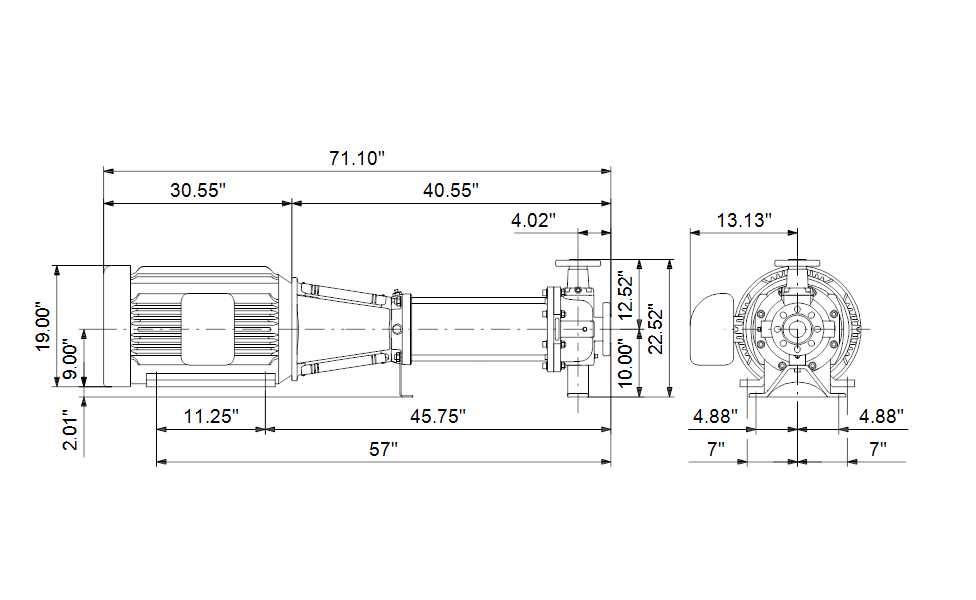

Dimensional Drawing
