Grundfos 97737703 - CRN 64-4 H-G40-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $10,361.88
GRUNDFOSSKU: 97737703

Price:
Sale price$13,848.12 Regular price$24,210.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97737703 - CRN 64-4 H-G40-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97737703 - CRN 64-4 H-G40-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting water pressure and handling various fluid transfer tasks.

With its robust construction and advanced design, the CRN 64-4 model ensures optimal flow rates and energy efficiency. This pump is part of the Grundfos Centrifugal Pumps range, which includes both single and multi-stage options, catering to diverse operational needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97737703. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G40
Connection PN 40
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 425.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 557.4 ft
Maximum operating pressure 435.11 psi
Model B
Motor 324TC
Motor standard NEMA
n rpm 3550rpm
Net weight 237.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 40
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 408.8 ft
Rubber V
Sales region USA
Shaft Product name:CRN 64-4 H-G40-A-V-HQQV
Shaft seal HQQV
Stages 4
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

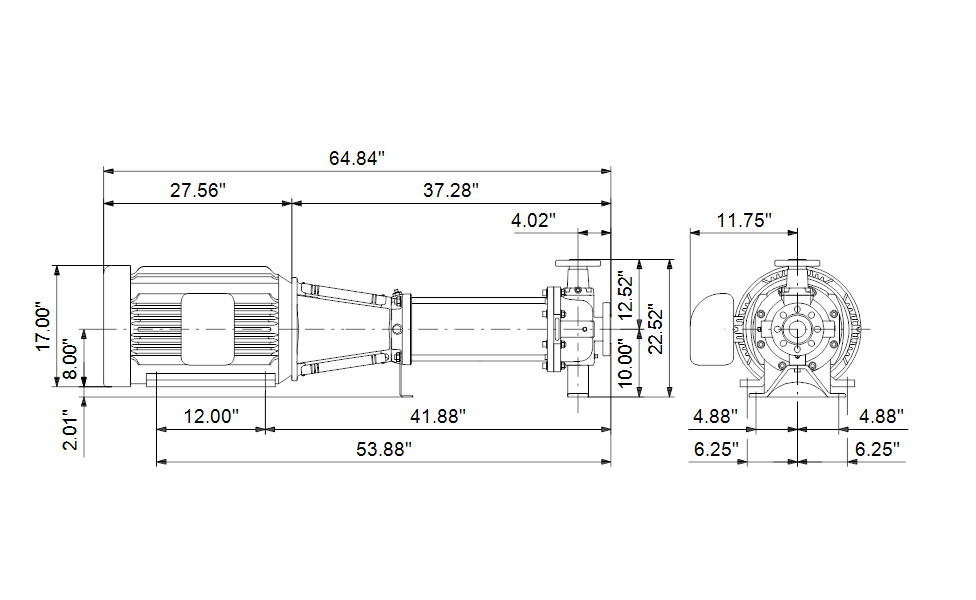

Dimensional Drawing
