Grundfos 97737512 - CRN 64-4 H-G60-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $10,220.64
GRUNDFOSSKU: 97737512

Price:
Sale price$13,659.36 Regular price$23,880.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97737512 - CRN 64-4 H-G60-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered for efficiency and reliability, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other demanding environments.

This model features a robust construction and advanced design, ensuring optimal performance and longevity. It is categorized under Grundfos Centrifugal Pumps, specifically within the Multi-Stage and Horizontal Multistage types, making it versatile for various pumping needs.

At Pump-Stop, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU that matches the Grundfos 97737512. If you encounter any difficulties in identifying the correct item, our team is here to help you navigate your options.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G60
Connection PN 40
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 378.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 248°F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Maximum head 557.4 ft
Maximum operating pressure 435.11 psi
Model B
Motor 324TC
Motor standard NEMA
n rpm 3550rpm
Net weight 217.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 40
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 408.8 ft
Rubber E
Sales region USA
Shaft Product name:CRN 64-4 H-G60-A-E-HQQE
Shaft seal HQQE
Stages 4
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

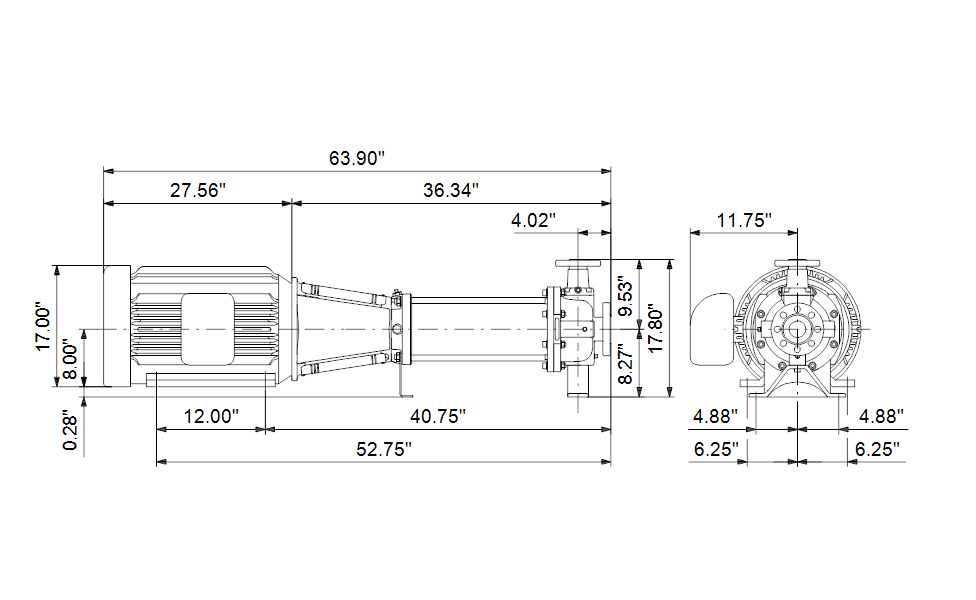

Dimensional Drawing
