Grundfos 97737511 - CRN 64-4-1 H-G60-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $10,220.64
GRUNDFOSSKU: 97737511

Price:
Sale price$13,659.36 Regular price$23,880.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97737511 - CRN 64-4-1 H-G60-A-E-HQQE Vertical Multistage Centrifugal Pump

The Grundfos 97737511 - CRN 64-4-1 H-G60-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for boosting pressure and transferring fluids in demanding environments.

This model features a robust construction and advanced design, ensuring durability and longevity. It is categorized under various types including Booster, Centrifugal, End Suction, Horizontal Multistage, and Multi Stage, making it versatile for different operational needs.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches to ensure compatibility.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone. We are here to help you find the perfect solution for your pumping needs!

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code G60
Connection PN 40
Curve tolerance ISO9906:2012 3B
Flange rating inlet 300 lb
Flange size for motor 324TC
Frequency converter NONE
Gross weight 378.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 248°F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Maximum head 502.6 ft
Maximum operating pressure 435.11 psi
Model B
Motor 324TC
Motor standard NEMA
n rpm 3550rpm
Net weight 217.0 lb
Number of reduced-diameter impellers 1
Pressure rating for connection PN 40
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 386.8 ft
Rubber E
Sales region USA
Shaft Product name:CRN 64-4-1 H-G60-A-E-HQQE
Shaft seal HQQE
Stages 4
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

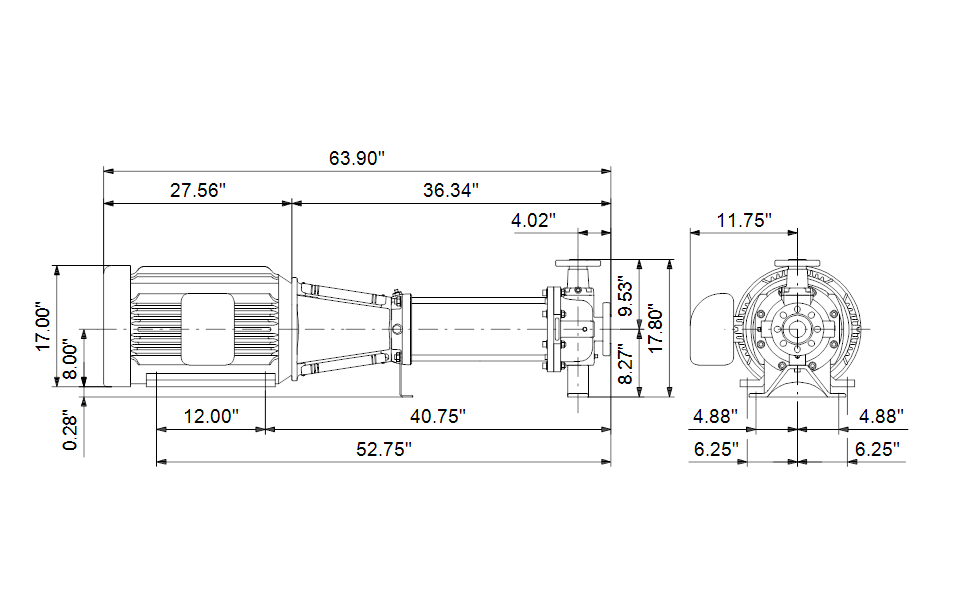

Dimensional Drawing
