Grundfos 99918371 - CRN 64-3-2 A-G-A-V-HQQV | Multistage | Centrifugal | Vertical | Inline

Save $11,044.11
GRUNDFOSSKU: 99918371

Price:
Sale price$14,759.89 Regular price$25,804.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 64-3-2 A-G-A-V-HQQV Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. A cartridge shaft seal ensures high reliability, safe handling, and easy access and service. Power transmission is via a rigid split coupling. Pipe connection is via ANSI flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5715114132381
Applications Industrial applications
Actual impeller diameter 5.59 in
Approvals CURUS
Bearing 1 SIC
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code G
Connection ANSI
Connection 2 PN 16
Cooling IC 01
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 5.59 in
DOE Pump Energy Index CL 0.93
Enclosure class (IEC 34-5) IP23
Eta 1/1 0.917
Flange rating inlet 150 lb
Flange size for motor 284TC
Frequency 60 HZ
Frequency converter NONE
Full load SF current 87.5/43.8 A
Gross weight 508.0 lb
IE Eff. Class IE3 / NEMA Premium
IE efficiency IE3 91,7%
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 3
Insulation F
Insulation class (IEC 85) F
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 232 psi / 194 °F
Maximum ambient temperature 104 °F
Maximum head 331.7 ft
Maximum operating pressure 232.06 psi
Maximum permissible operating pressure 16bar
Model B
Motor 284TC
Motor efficiency at 1/2 load 0.902
Motor efficiency at 3/4 load 0.917
Motor efficiency at full load 1 0.917
Motor protec NONE
Motor standard NEMA
Motor type WEG
n rpm 3550rpm
Net weight 490.0 lb
Number of poles 2
Number of reduced-diameter impellers 2
P2 HP 30 HP
P2 kW 22kW
Phase 3
Power (P2) required by pump 30 HP
Power factor 1 0.86
Pressure rating PN 16
Pressure rating for connection PN 16
Product family CRN 64
Pump 30 HP
Pump housing Stainless steel
Pump inlet 4
Pump outlet 4
Pump version A
Pumped liquid Water
Rated current 70/35 A
Rated flow 339 US gpm
Rated flow 2 339 US gpm
Rated head 249.4 ft
Rated head 2 249.4 ft
Rated power - P2 30 HP
Rated speed 3550 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Service factor 1.25
Shaft seal HQQV
Stages 3
Standard NEMA
Starting current 6.3
Support bearing Graflon
Type WEG
Type of connection ANSI
Version A

Motor Curves

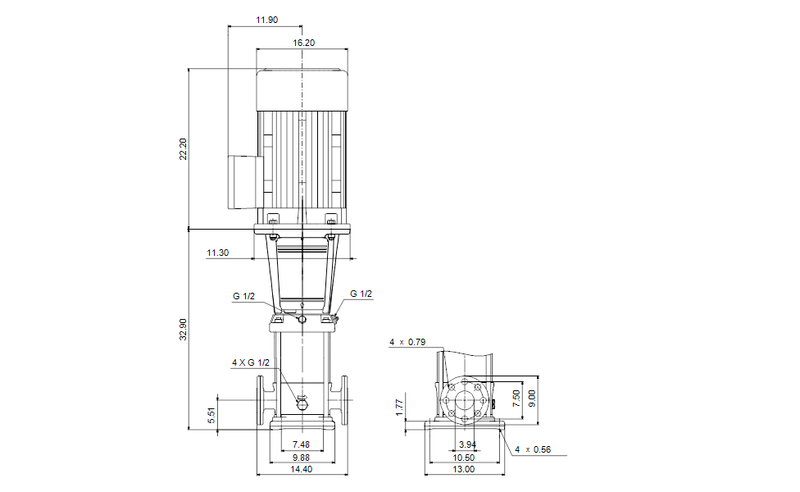

Dimensional Drawing

DWiring Diagram
