Grundfos 97736799 - CRN 64-2-2 H-G30-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $6,718.74
GRUNDFOSSKU: 97736799

Price:
Sale price$8,979.26 Regular price$15,698.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97736799 - CRN 64-2-2 H-G30-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model features a robust construction and advanced design, making it suitable for various fluid handling tasks. It is categorized under Grundfos Centrifugal Pumps, specifically within the Multi-Stage and Horizontal Multistage types. The CRN series is known for its versatility and efficiency, making it an ideal choice for boosting pressure in water supply systems, HVAC applications, and other industrial processes.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and feel free to call us if you are having trouble locating the right item.

Ensure optimal performance and reliability with the Grundfos 97736799 - CRN 64-2-2 H-G30-A-V-HQQV pump, a trusted solution for your industrial pumping needs.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G30
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 370.0 lb
Impeller Stainless steel
Impellers 2
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 192.9 ft
Maximum operating pressure 232.06 psi
Model B
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 182.0 lb
Number of reduced-diameter impellers 2
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 141.1 ft
Rubber V
Sales region USA
Shaft Product name:CRN 64-2-2 H-G30-A-V-HQQV
Shaft seal HQQV
Stages 2
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

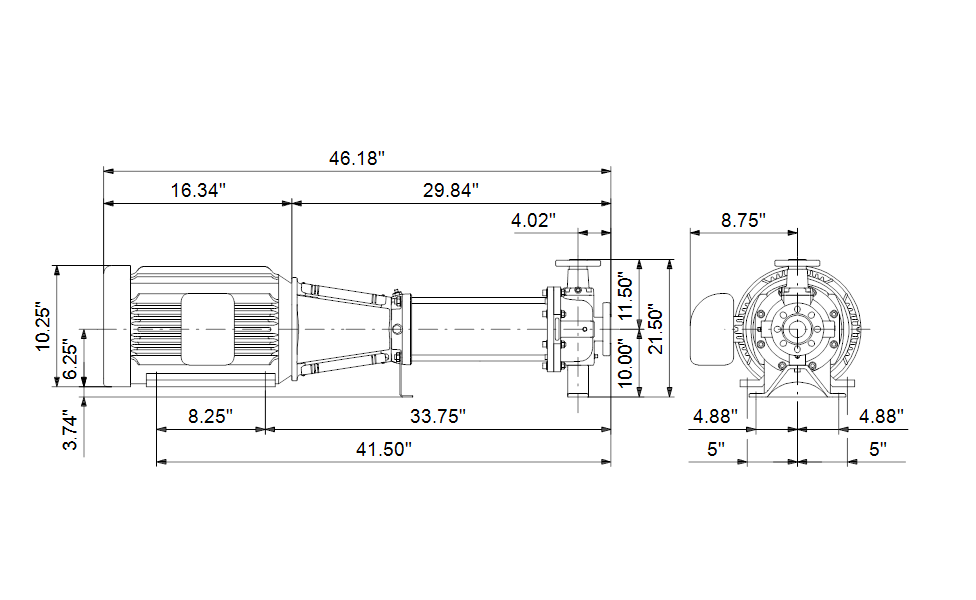

Dimensional Drawing
