Description
The Grundfos 96416072 (CRN 64-2-2) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided.
All Stainless Steel Construction
Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.
Corrosion-Resistant for Aggressive Fluids
316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.
Cartridge Mechanical Seal
Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.
Dual Flange Standard — DIN, ANSI, JIS
CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.
3-A and FDA-Compliant Options
Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.
Wide Pressure Range
CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.
| Model Number | 96416072 |
| Product Series | CRN |
| Series Description | Vertical Multistage Centrifugal Pump — All Stainless |
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation. |
| Temperature limits | Do not exceed max fluid temperature per nameplate. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
- EAN
- 5700390658496
- Code for rubber
- V
- Code for shaft seal
- KUBV
- Connect code
- G
- Connection
- 150 Lb.
- Density
- 62.29 lb/ft³
- Flange size for motor
- 254TC
- Gross weight
- 205.0 lb
- Impeller
- Stainless steel
- Impellers
- 2
- Liquid temperature range
- 32 .. 194 °F
- Low NPSH
- N
- Material code
- GI
- Material Pricing Group
- 6
- Max pressure at stated temp
- 232 psi / 194 °F
- Model
- A
- Motor
- 254TC
- Number of reduced-diameter impellers
- 2
- Power (P2) required by pump
- 11 kW
- Pressure rating for connection
- 150 Lb.
- Pump
- 11 kW
- Pump speed on which pump data are based
- 3450 rpm
- Pump version
- U
- Pumped liquid
- Water
- Rated flow
- 339 US gpm
- Rated head
- 125 ft
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- V
- Sales region
- Namreg
- Selected liquid temperature
- 68 °F
- Size of inlet connection
- 4" inch
- Size of outlet connection
- 4" inch
- Stages
- 2
- Type of connection
- ANSI
- Version
- U

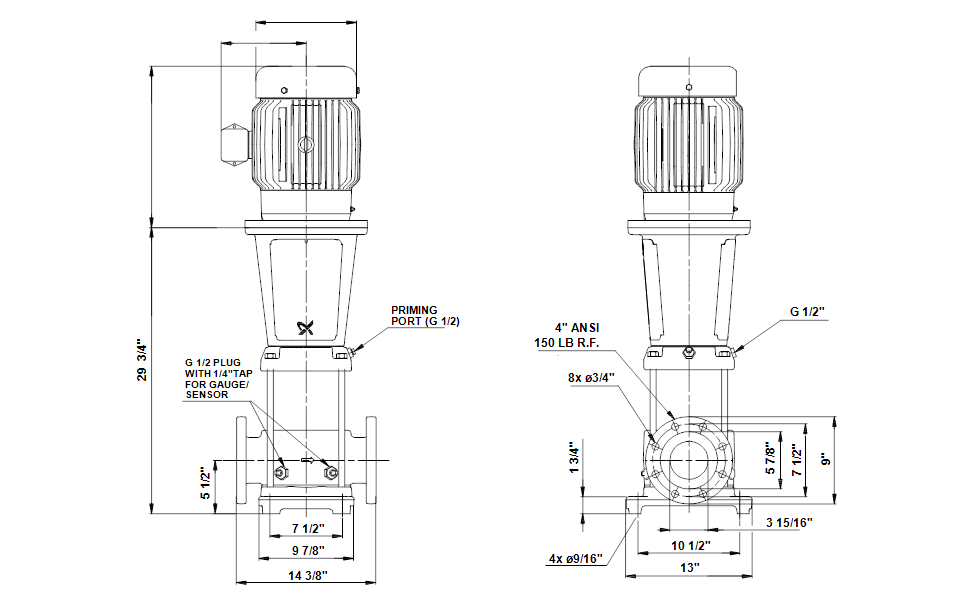

Dimensional Drawing
