Grundfos 97737939 - CRN 64-1 H-G44-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $4,903.17
GRUNDFOSSKU: 97737939

Price:
Sale price$6,552.83 Regular price$11,456.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97737939 - CRN 64-1 H-G44-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 97737939 - CRN 64-1 H-G44-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, a leader in pump technology, this model ensures reliable operation and efficiency in demanding environments.

This centrifugal pump is ideal for boosting pressure, transferring liquids, and various other applications where consistent performance is crucial. With its robust construction and advanced design, the CRN series is built to handle a wide range of fluids, making it a versatile choice for your pumping needs.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to reach out to our knowledgeable team at (781) 281-8905.

Before purchasing, we recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you encounter any difficulties in locating the right item, our team is here to help you find the perfect solution.

Approvals on nameplate CE
Bearing 1 Graflon
Code for rubber V
Code for shaft seal HQQV
Connect code G44
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 254TC
Frequency converter NONE
Gross weight 349.0 lb
Impeller Stainless steel
Impellers 0
Liquid max temp 194°F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Maximum head 147 ft
Maximum operating pressure 232.06 psi
Model B
Motor 254TC
Motor standard NEMA
n rpm 3444rpm
Net weight 189.0 lb
Number of reduced-diameter impellers 0
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 100.4 ft
Rubber V
Sales region USA
Shaft Product name:CRN 64-1 H-G44-A-V-HQQV
Shaft seal HQQV
Stages 1
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

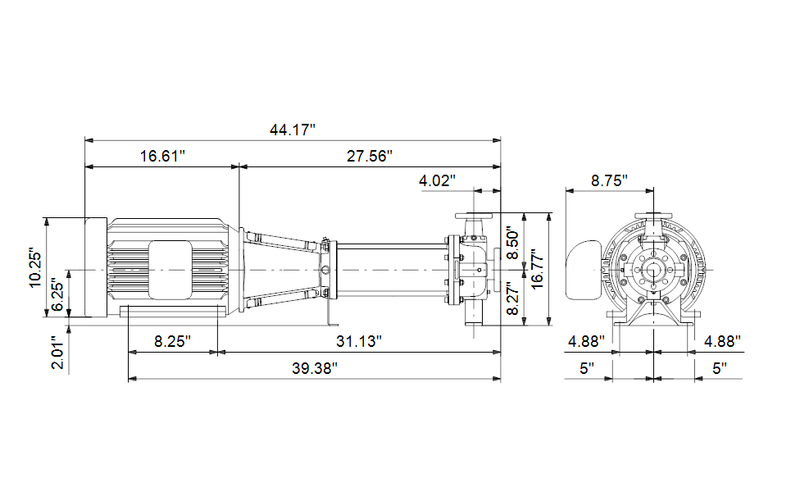

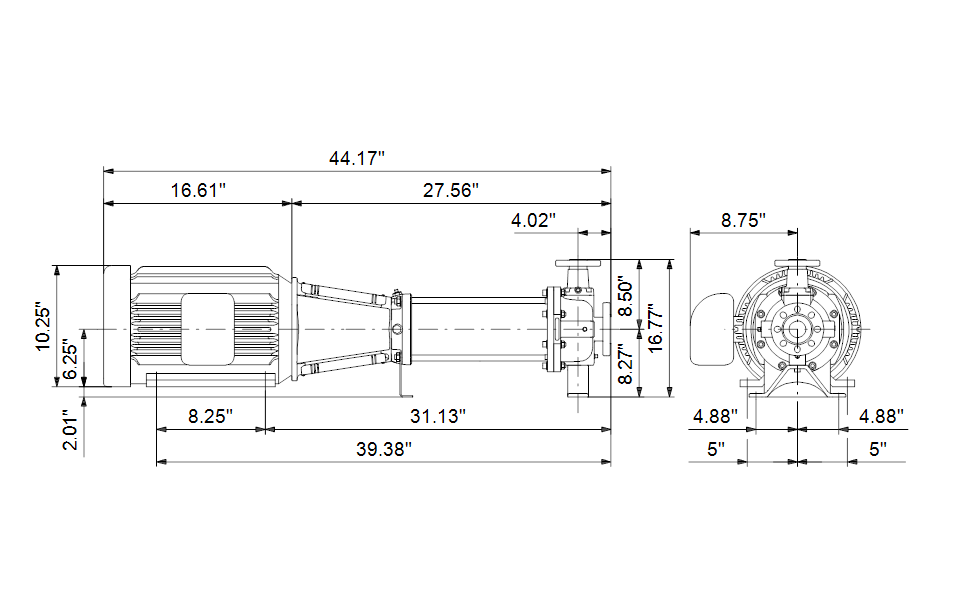

Dimensional Drawing
