Grundfos 97735512 - CRN 64-1-1 H-GC-A-E-HQQE | Vertical | Multistage | Centrifugal

Save $4,717.42
GRUNDFOSSKU: 97735512

Price:
Sale price$6,304.58 Regular price$11,022.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 97735512 - CRN 64-1-1 H-GC-A-E-HQQE is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model is part of the CRN series, known for its robust construction and versatility. It is ideal for applications requiring high pressure and flow rates, making it suitable for booster systems, water supply, and various industrial processes. The CRN 64-1-1 H-GC-A-E-HQQE features a compact design, ensuring easy installation and maintenance.

At Pump-Stop.com, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and our team is here to help if you're having trouble locating the right item.

Explore our extensive range of Grundfos centrifugal pumps, including single and multi-stage options, and discover the perfect solution for your needs.

Approvals on nameplate CE,NSF/ANSI 61
Bearing 1 Graflon
Code for rubber E
Code for shaft seal HQQE
Connect code GC
Connection PN 16
Curve tolerance ISO9906:2012 3B
Flange rating inlet 150 lb
Flange size for motor 213TC
Frequency converter NONE
Gross weight 184.0 lb
Impeller Stainless steel
Impellers 1
Liquid max temp 248°F
Liquid temperature range -40 .. 248 °F
Low NPSH N
Material code A
Maximum head 101.4 ft
Maximum operating pressure 232.06 psi
Model B
Motor 213TC
Motor standard NEMA
n rpm 3467rpm
Net weight 84.2 lb
Number of reduced-diameter impellers 1
Pressure rating for connection PN 16
Pressure sensor N
Pump Y
Pump version H
Rated flow 337 US gpm
Rated head 69.23 ft
Rubber E
Sales region USA
Shaft Product name:CRN 64-1-1 H-GC-A-E-HQQE
Shaft seal HQQE
Stages 1
Standard NEMA
Support bearing Graflon
Version H

Motor Curves

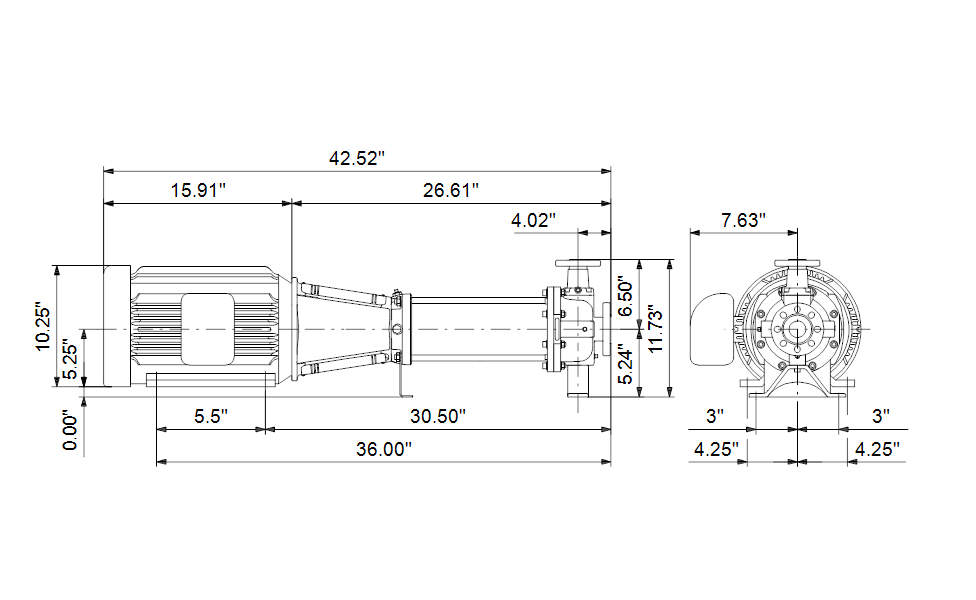

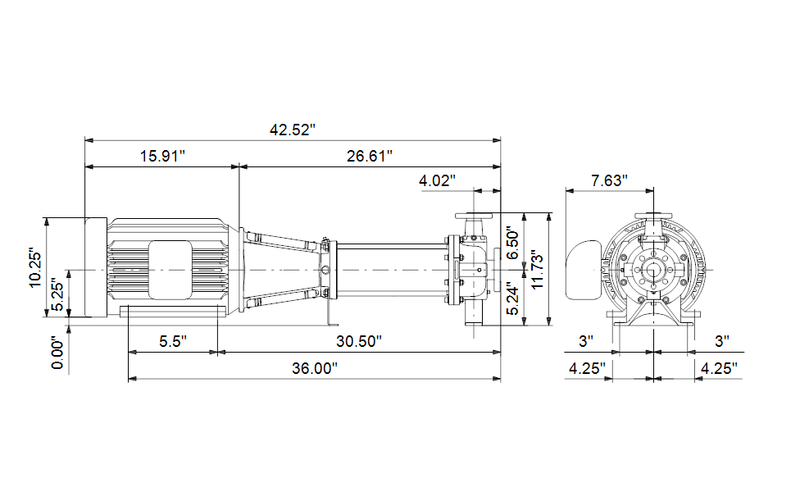

Dimensional Drawing
