Grundfos 98161267 - CRN 5-8 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $2,194.08
GRUNDFOSSKU: 98161267

Price:
Sale price$2,376.92 Regular price$4,571.00
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 98161267 - CRN 5-8 A-FGJ-A-V-HQQV Vertical Multistage Centrifugal Pump

The Grundfos 98161267 - CRN 5-8 A-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by Grundfos, this pump is engineered to deliver reliable and efficient performance, making it an ideal choice for high-pressure systems.

With its robust construction and advanced design, the CRN 5-8 A-FGJ-A-V-HQQV model is perfect for applications requiring consistent flow and pressure. This pump is part of the Grundfos Centrifugal Pumps range, specifically categorized under Service Special, High Pressure, and Vertical Multistage types.

At Pump-Stop, we are your preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU that matches, and our team is here to help if you're having trouble locating the right item.

For more information on specifications and applications, feel free to reach out to our knowledgeable team via chat or phone.

EAN 5710629592927
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FT100
Frequency converter NONE
Gross weight 70.4 lb
IE Efficiency class IE3
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 194 °F
Low NPSH N
Mains frequency 50 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum ambient temperature 140 °F
Maximum head 185.4 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT100
Motor efficiency at 1/2 load 85.4-82.8 %
Motor efficiency at 3/4 load 84.6-84.0 %
Motor efficiency at full load 1 82.7-82.7 %
Motor standard IEC
Motor type 80CA
Net weight 64.1 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.83-0.76
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 2853 rpm
Pump version A
Pumped liquid Water
Rated current 4.35/2.50 A
Rated flow 25.5 US gpm
Rated head 132.2 ft
Rated power - P2 1.1 kW
Rated speed 2840-2870 rpm
Rated voltage 3 x 220-240D/380-415Y V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 8
Standard IEC
Starting current 450-500 %
Type 80CA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

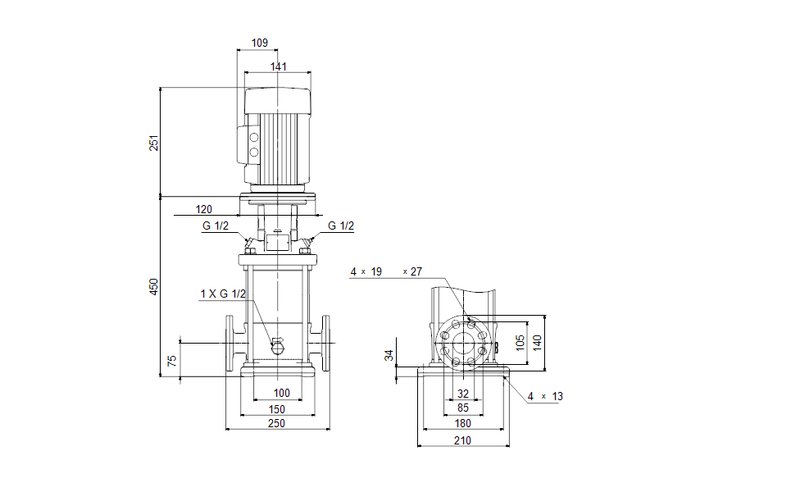

Dimensional Drawing

DWiring Diagram
