Grundfos 92580078 - CRN 5-6 A-CX-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 92580078

Price:
Sale price$6,152.78
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

Grundfos 92580078 is a vertical, multistage centrifugal pump assembly suited for industrial and commercial fluid-handling systems. The CRN 5-6 configuration supports technicians and maintenance teams replacing high-pressure inline pumps.

Key features

  • Vertical multistage centrifugal design for compact, stacked impeller performance
  • Configured for high-pressure inline service and multi-stage applications
  • Provides steady, reliable pressurized flow to support system stability and longevity

Applications

Typical uses include boiler feed, water transfer, pressure boosting, and other industrial high-pressure or in-line multistage applications where space-saving vertical installation is preferred.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 92580078

EAN 5715116578651
Approvals CURUS
Approvals for drinking water NSF/ANSI 61
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code CX
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) IP55
Flange size for motor 56C
Frequency converter NONE
Gross weight 86.8 lb
IE efficiency IE3 85
IE Efficiency class IE3 / NEMA Premium
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 104 °F
Maximum head 203.8 ft
Maximum operating pressure 25 bar
Model A
Motor 56C
Motor efficiency at 1/2 load 0.825
Motor efficiency at 3/4 load 0.855
Motor efficiency at full load 1 0.855
Motor standard NEMA
Motor type WEG
Net weight 75.8 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.5 kW
Power factor 1 0.89
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.5 kW
Pump speed on which pump data are based 3452 rpm
Pump version A
Pumped liquid Water
Rated current 4.94/2.47 A
Rated flow 30.4 US gpm
Rated head 147.6 ft
Rated power - P2 1.5 kW
Rated speed 3520 rpm
Rated voltage 3 x 230/460 V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Service factor 1.15
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 6
Standard NEMA
Starting current 9.9
Type WEG
Type of connection TriClamp
Version A

Motor Curves

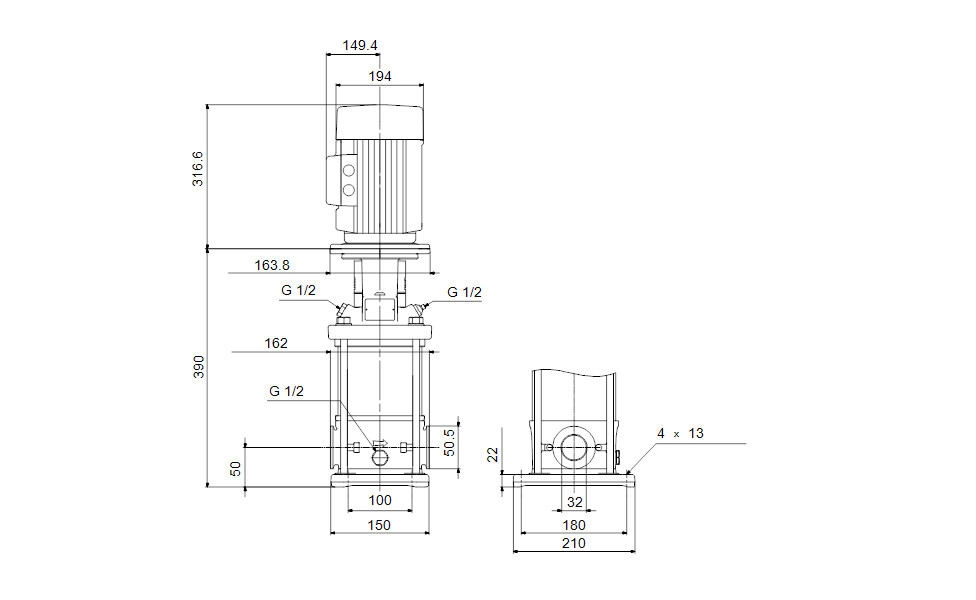

Dimensional Drawing

DWiring Diagram
