Grundfos 98810587 - CRN 5-4 A-P-A-E-HQQE | Vertical | Multistage | Centrifugal

GRUNDFOSSKU: 98810587

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Overview

The Grundfos 98810587 (CRN 5-4 A-P-A-E-HQQE) is a vertical multistage centrifugal pump designed for industrial fluid handling and service-repair use. Its compact vertical design fits inline and high-pressure systems commonly maintained by facilities and service technicians.

Key features

  • Manufactured by Grundfos for industrial and service applications
  • Multistage, vertical centrifugal configuration suited to high-pressure, in-line installations
  • Provides reliable pressure boosting and efficient staged pumping for extended duty cycles

Applications

Ideal for pressure boosting, HVAC, water supply, irrigation, and other industrial or commercial applications requiring compact high-pressure multistage pumps.

Compatibility note: Match the exact model or SKU before ordering. For help, call (781) 281-8905. Pump-Stop is the preferred source for replacement pumps and parts.

SKU: 98810587

EAN 5712601683562
Approvals EAC
Approvals for drinking water WRAS
Built-in motor protection NONE
Code for rubber E
Code for shaft seal HQQE
Connect code P
Connection PN 50
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange size for motor FT100
Frequency converter NONE
Gross weight 56.0 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 135.5 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT100
Motor efficiency at 1/2 load 86.4-85.5 %
Motor efficiency at 3/4 load 86.0-86.5 %
Motor efficiency at full load 1 82.5-84.0 %
Motor standard IEC
Motor type 80CA
Net weight 49.9 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.88-0.80
Pressure rating for connection PN 50
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3463 rpm
Pump version A
Pumped liquid Water
Rated current 2.40-2.30 A
Rated flow 30.4 US gpm
Rated head 93.18 ft
Rated power - P2 1.1 kW
Rated speed 3420-3470 rpm
Rated voltage 3 x 380-440D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 32
Size of outlet connection DN 32
Stages 4
Standard IEC
Starting current 430-500 %
Type 80CA
Type of connection PJE
Version A

Motor Curves

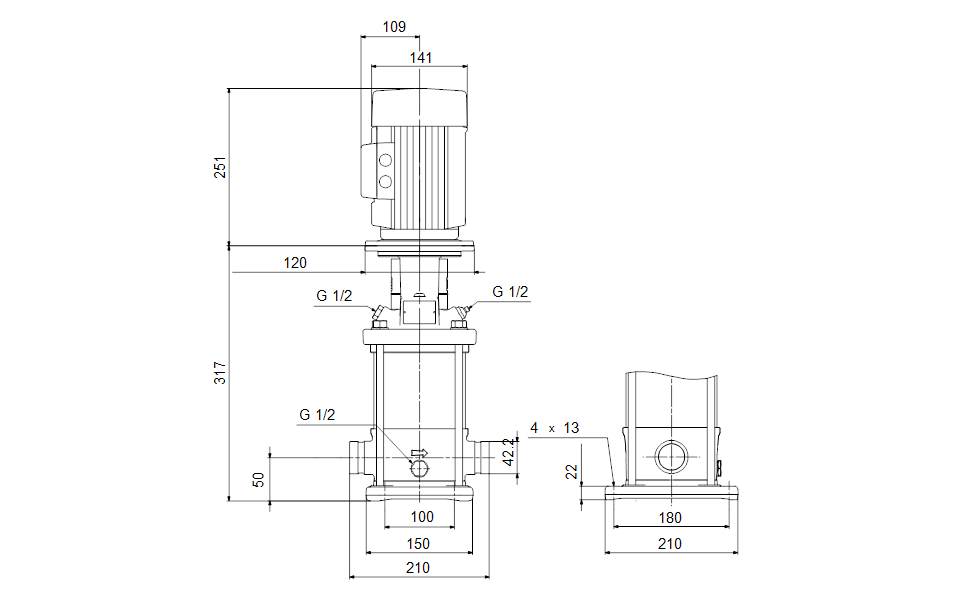

Dimensional Drawing

DWiring Diagram
