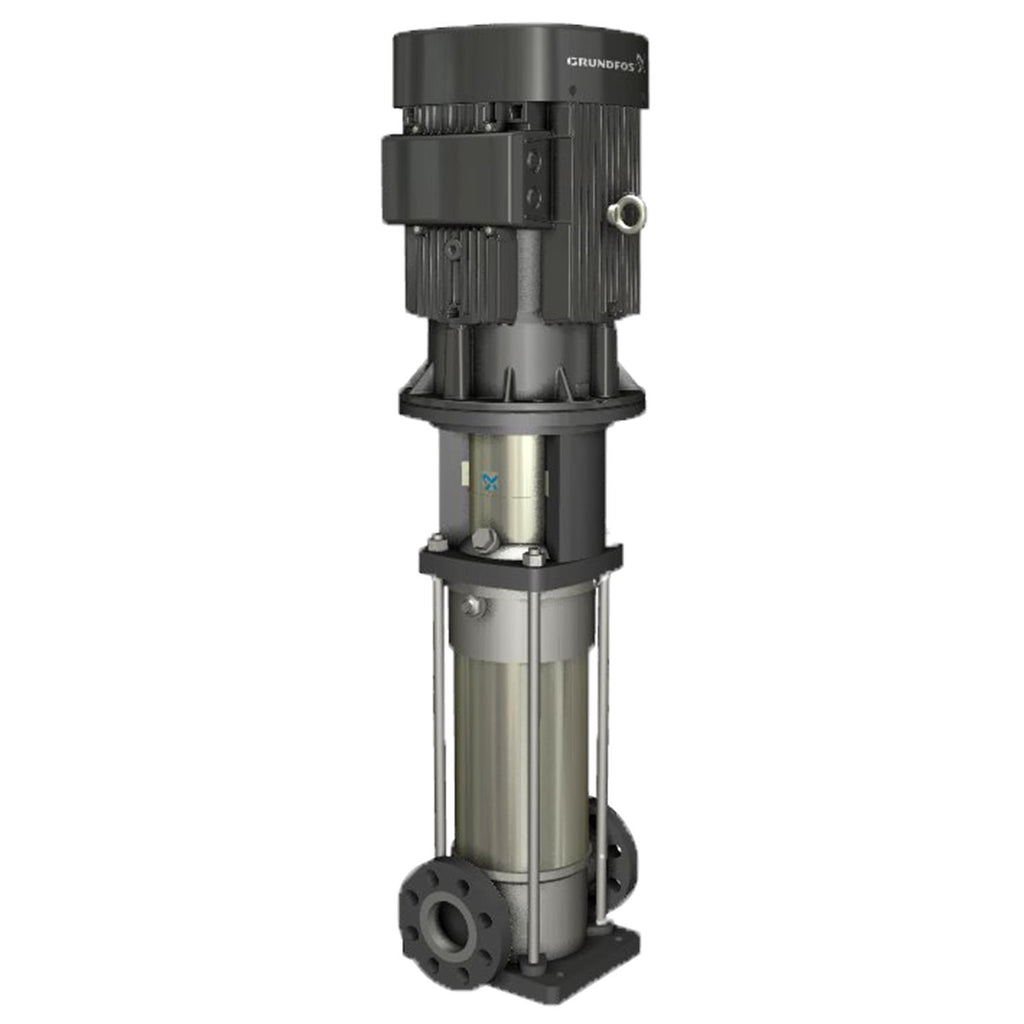

Grundfos 99225884 - CRN 5-3 M-FGJ-A-E | Multistage | Centrifugal | Vertical | Inline

GRUNDFOSSKU: 99225884

Contact for price
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

CRN 5-3 M-FGJ-A-E Vertical, multistage centrifugal pump with inlet and outlet ports on same the level (inline). Pump materials in contact with the liquid are in high-grade stainless steel. Pipe connection is via combined DIN-ANSI-JIS flanges. The pump is fitted with a 3-phase, fan-cooled asynchronous motor.

EAN 5712609022783
Approvals CE
Built-in motor protection NONE
Code for rubber E
Connect code FGJ
Connection PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Enclosure class (IEC 34-5) 55 Dust/Jetting
Flange rating inlet 300 lb
Flange size for motor FT100
Frequency converter NONE
Gross weight 97.6 lb
IE Efficiency class NEMA Premium / IE3 60Hz
Impeller Stainless steel
Impellers 0
Insulation class (IEC 85) F
Liquid temperature range -4 .. 248 °F
Low NPSH N
Mains frequency 60 Hz
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 250 °F
Maximum ambient temperature 140 °F
Maximum head 106 ft
Maximum operating pressure 25 bar
Minimum efficiency index, MEI ≥ 0.57
Model A
Motor FT100
Motor efficiency at 1/2 load 86.2-85.5 %
Motor efficiency at 3/4 load 86.1-86.5 %
Motor efficiency at full load 1 84.0-84.0 %
Motor standard IEC
Motor type 80C
Net weight 71.3 lb
Number of poles 2
Number of reduced-diameter impellers 0
Power (P2) required by pump 1.1 kW
Power factor 1 0.86-0.80
Pressure rating for connection PN 25
Pressure sensor N
Pump 1.1 kW
Pump speed on which pump data are based 3463 rpm
Pump version M
Pumped liquid Water
Rated current 2.40-2.30 A
Rated flow 30.4 US gpm
Rated head 72.84 ft
Rated power - P2 1.1 kW
Rated speed 3430-3470 rpm
Rated voltage 3 x 400-440D V
Real Time Delivery date to be confirmed on Sales Order  Update with real time availability and Net price
Rubber E
Selected liquid temperature 68 °F
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 3
Standard IEC
Starting current 440-500 %
Type 80C
Type of connection DIN / ANSI / JIS
Version M

Motor Curves

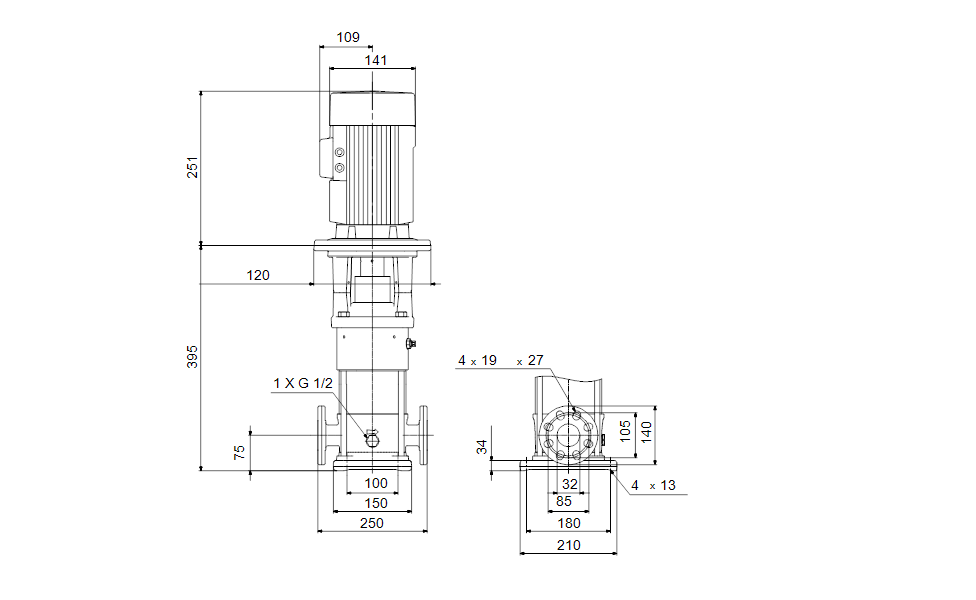

Dimensional Drawing
