Grundfos 96085087 - CRN 5-3 A-FGJ-A-V-HQQV | Vertical | Multistage | Centrifugal

Save $1,081.98
GRUNDFOSSKU: 96085087

Price:
Sale price$1,446.02 Regular price$2,528.00
Delivery date to be confirmed on Sales Order
or Call for most up to date lead times. (781) 281-8905

Description

Grundfos 96085087 - CRN 5-3 A-FGJ-A-V-HQQV is a high-performance vertical multistage centrifugal pump designed for a variety of industrial applications. Manufactured by the renowned vendor Grundfos, this pump is engineered to deliver reliable and efficient performance in demanding environments.

This model is part of the CRN series, known for its durability and versatility. It is ideal for high-pressure applications and is suitable for both single and multi-stage setups. The CRN 5-3 A-FGJ-A-V-HQQV is specifically designed to handle a wide range of fluids, making it a perfect choice for various industrial processes.

At Pump-Stop.com, we pride ourselves on being the preferred source for replacement pumps and parts. If you have questions or need assistance in finding the right pump for your application, please don't hesitate to call us at (781) 281-8905. We recommend checking your current pump for the exact part number or SKU to ensure compatibility. If you're having trouble locating the right item, our knowledgeable team is here to help!

Explore our extensive range of centrifugal pumps, including high-pressure, inline, and vertical multistage options. Trust Grundfos for quality and performance in your pumping solutions.

EAN 5700395199253
Applications Industrial applications
Actual impeller diameter 2.88 in
Approvals CE
Bearing 1 SIC
Code for rubber V
Code for shaft seal HQQV
Connect code FGJ
Connection DIN / ANSI / JIS
Connection 2 DN 25/32
Connection 3 DN 25/32
Connection 4 PN 25
Curve tolerance ISO9906:2012 3B
Density 62.29 lb/ft³
Diameter 2.88 in
DOE Pump Energy Index CL 0.89
Flange rating inlet 300 lb
Flange size for motor 56C
Frequency 60 HZ
Frequency converter NONE
Gross weight 46.8 lb
Impeller Stainless steel
Impellers 3
Liquid max temp 90°C
Liquid temperature range -4 .. 194 °F
Low NPSH N
Material code A
Material Pricing Group 6
Max pressure at stated temp 363 psi / 194 °F
Maximum head 96.13 ft
Maximum operating pressure 362.59 psi
Maximum permissible operating pressure 25bar
Model A
Motor 56C
Motor standard NEMA
n rpm 3484rpm
Net weight 35.8 lb
Number of reduced-diameter impellers 0
Power (P2) required by pump 1 HP
Pressure rating PN 25
Pressure rating for connection PN 25
Product family CRN 5
Pump 1 HP
Pump housing Stainless steel
Pump inlet DN 25/32
Pump outlet DN 25/32
Pump version A
Pumped liquid Water
Rated flow 30.4 US gpm
Rated flow 2 30.4 US gpm
Rated head 65.29 ft
Rated head 2 65.29 ft
Real Time Delivery date to be confirmed on Sales Order Update with real time availability and Net price
Rubber V
Selected liquid temperature 68 °F
Shaft seal HQQV
Size of inlet connection DN 25/32
Size of outlet connection DN 25/32
Stages 3
Standard NEMA
Type of connection DIN / ANSI / JIS
Version A

Motor Curves

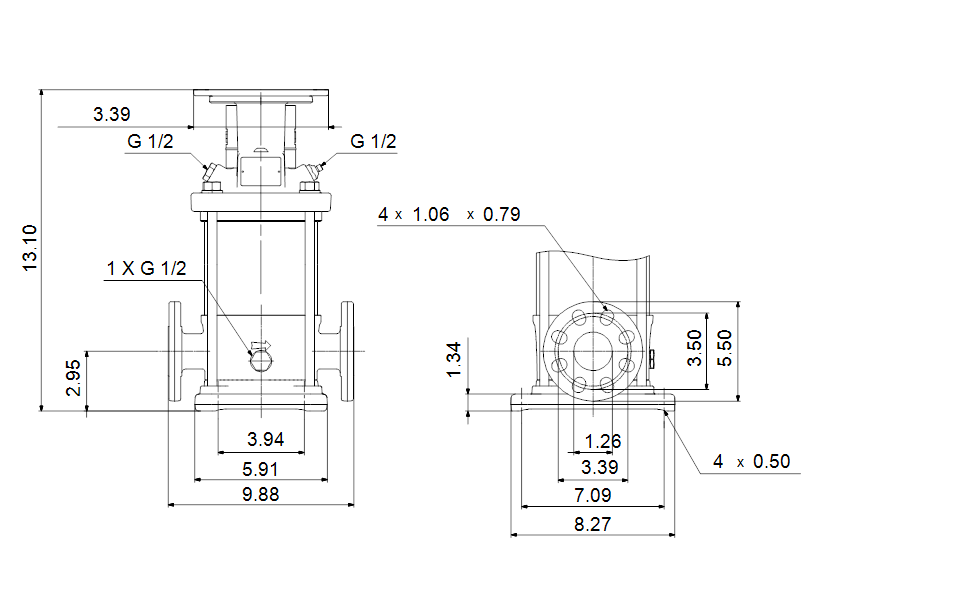

Dimensional Drawing
