Grundfos — World's Largest Pump Manufacturer · Bjerringbro, Denmark

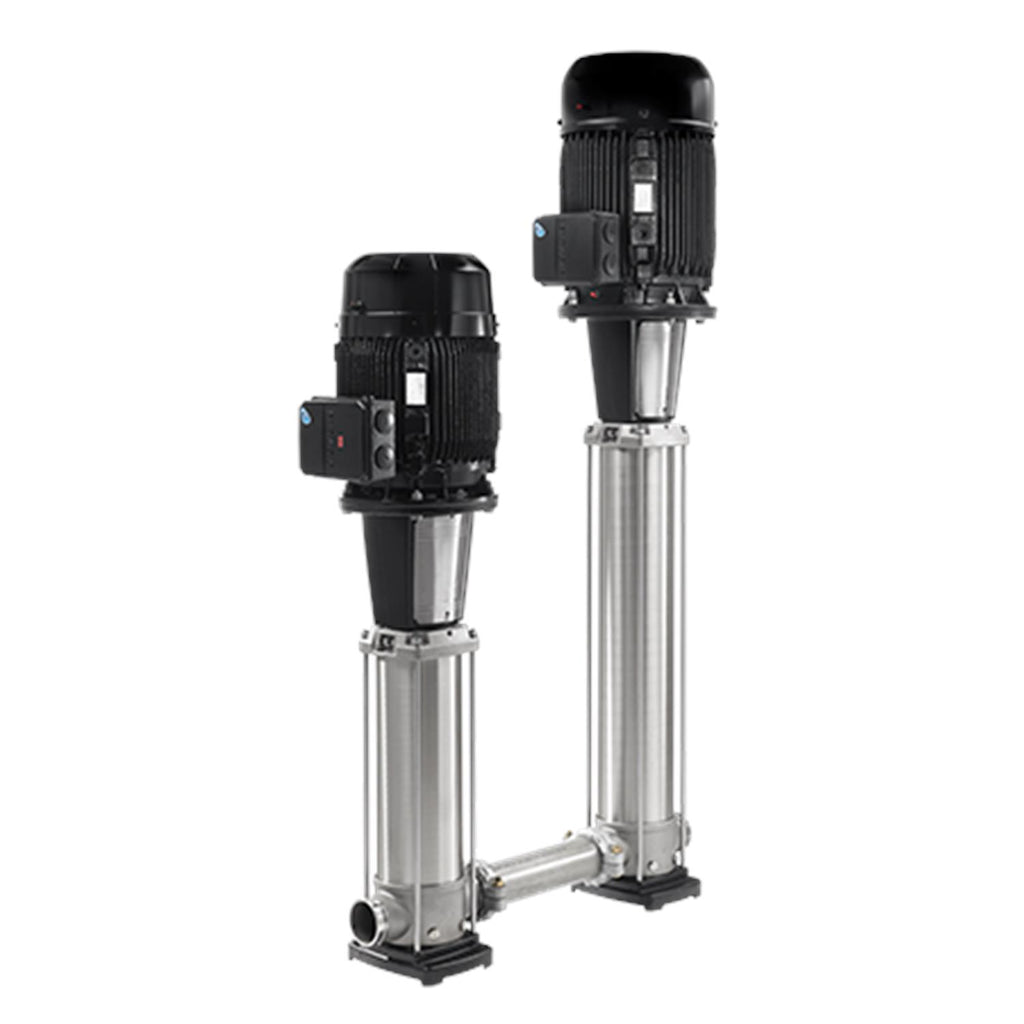

CRN 5-24 S-FGJ-A-E-HQQE · Vertical Multistage Centrifugal Pump — All Stainless
The Grundfos 97504190 (CRN 5-24 S-FGJ-A-E-HQQE) is a Vertical Multistage Centrifugal Pump — All Stainless. All wetted parts in stainless steel EN 1.4401 (316). For food, beverage, pharmaceutical, and chemical applications where iron contamination must be avoided. Nominal performance: 30.4US gpm at 602.4ft. Rated 400-480/690V, 3.0-Phase, 60 Hz. Applications include HVAC: Heating, HVAC: Air Conditioning, Plumbing: Pressure Boosting and more.
Power
10HP
Voltage
400-480/690V
Phase
3.0-Phase
Max Flow
30.4US gpm
Max Head
602.4ft
Grundfos
World's largest pump manufacturer — engineering and manufacturing in 17 countries since 1945
Industrial Grade
NEMA Premium / IE3 60Hz motor — reduces operating cost over service life
Authorized Distributor
Genuine Grundfos product — full manufacturer warranty coverage
Expert Support
Technical help available — call (781) 281-8905 or chat
Why This Product
All Stainless Steel Construction
Every wetted component — impeller, chambers, shaft, head — is stainless steel EN 1.4401 (316). No iron contact with the pumped fluid under any condition.
Corrosion-Resistant for Aggressive Fluids
316 stainless resists chlorides, mild acids, and alkaline cleaning agents. CRN is the preferred selection for food processing, pharmaceutical, and chemical dosing systems.
Cartridge Mechanical Seal
Factory-set cartridge seal eliminates field adjustment on installation. Seal options cover standard water through aggressive chemical service.
Dual Flange Standard — DIN, ANSI, JIS
CRN ships with combined DIN/ANSI/JIS flange connections. One pump fits piping standards across North American and international installations.
3-A and FDA-Compliant Options
Selected CRN configurations are 3-A certified for dairy and food processing. FDA-compliant elastomers available on request.
Wide Pressure Range
CRN series covers up to 60 bar operating pressure across pump sizes. Confirm your system maximum working pressure before selecting.
Model Information — CRN 5-24 S-FGJ-A-E-HQQE
Series: CRN
Model Code: CRN 5-24 S-FGJ-A-E-HQQE
Seal Type: Cartridge seal — H rubber bellows, QQ SiC/SiC faces, E EPDM O-ring
Impeller Material: Stainless steel
Housing Material: Stainless steel
Shaft Seal: HQQE
Technical Specifications
| Model Number | 97504190 |
| Product Series | CRN |
| Series Description | Vertical Multistage Centrifugal Pump — All Stainless |
| Power | 10HP |
| Voltage | 400-480/690V |
| Phase | 3.0-Phase |
| Frequency | 60 Hz |
| Motor Speed | 3500-3530rpm |
| Pump Speed | 3525rpm |
| Full Load Current | 13,8-12,0/8,10A |
| Motor Type | 132SB |
| Motor Protection | PTC |
| Motor Efficiency Class | NEMA Premium / IE3 60Hz |
| Motor Efficiency | 90.2-90.2% |
| Insulation Class | F |
| Protection Class (IP) | IP55 Dust/Jetting |
| Nominal Flow | 30.4US gpm |
| Nominal Head | 602.4ft |
| Max Fluid Temperature | 248°F |
| Max Ambient Temperature | 140°F |
| Nominal Pipe Bore | DN 32 |
| Pipe Standard | DIN / ANSI / JIS |
| Impeller Material | Stainless steel |
| Housing Material | Stainless steel |
| Shaft Seal | HQQE |
| Approvals / Certifications | CE, EAC, UKCA, SEPRO |
Applications
HVAC: Heating
HVAC: Air Conditioning
Plumbing: Pressure Boosting
District heating
District cooling
Machining
Wash and clean
Process liquids transfer
Industrial heating
Cooling
Industrial water supply & transfer
Industrial wastewater treatment & reuse
Industrial process water treatment
Desalination
Municipal surface water
Drinking water treatment
Municipal water transportation
Municipal solar solutions
Rotor & spray irrigation
Ground water transfer
Livestock & Wildlife Watering
Water Treatment Fertigation
Chemigation & Dosing
Pivot & Lateral Irrigation
Frost protection
Solar boosting and water supply solutions
Controls and digital groundwater management
Solar controls and digital water management
Municipal solar solutions
Agriculture solar solutions
Livestock watering with solar solutions
Community solar solutions
Important Notices
| Electrical | Verify supply voltage, phase, and frequency match nameplate before installation: 400-480/690V, 3.0-Phase, 60 Hz. |
| Temperature limits | Do not exceed max fluid temperature 248°F or max ambient temperature 140°F. Exceeding limits damages seals and motor insulation. |
| Dry running | Do not run dry. CRN pumps use the pumped fluid to lubricate the shaft seal. Dry running destroys the seal within seconds. Install dry-run protection on all automatic installations. |
| Maintenance | Refer to the Grundfos Installation and Operating Manual (IOM) for correct installation, commissioning, and maintenance. Contact PumpStop for documentation. |
Documentation
✓ Installation and Operating Manual (IOM) — CRN Series
✓ Product Data Sheet — CRN 5-24 S-FGJ-A-E-HQQE
✓ Service Manual and Spare Parts List
Need the IOM, data sheet, or spare parts list? Contact PumpStop and we'll send it over.
Before You OrderConfirm model code, voltage, phase, and frequency match your installation. For sizing help, spare parts, or documentation, call (781) 281-8905 or chat with PumpStop.
- EAN
- 5700316624642
- Applications
- Industrial applications
- Approvals
- CE
- Approvals for drinking water
- ACS
- Built-in motor protection
- PTC
- Code for rubber
- E
- Code for shaft seal
- HQQE
- Connect code
- FGJ
- Connection
- DN 32
- Curve tolerance
- ISO9906:2012 3B
- Density
- 62.29 lb/ft³
- Enclosure class (IEC 34-5)
- 55 Dust/Jetting
- Flange size for motor
- FF265
- Frequency converter
- NONE
- Gross weight
- 178.0 lb
- Housing
- Stainless steel
- IE Efficiency class
- NEMA Premium / IE3 60Hz
- Impeller
- Stainless steel
- Impellers
- 24
- Insulation class (IEC 85)
- F
- Liquid temperature range
- -4 .. 248 °F
- Low NPSH
- N
- Mains frequency
- 60 Hz
- Material code
- A
- Material Pricing Group
- 6
- Max pressure at stated temp
- 725 psi / 250 °F
- Maximum ambient temperature
- 140 °F
- Minimum efficiency index, MEI ≥
- 0.57
- Model
- A
- Motor
- FF265
- Motor efficiency at 1/2 load
- 91.1-89.7 %
- Motor efficiency at 3/4 load
- 90.9-90.7 %
- Motor efficiency at full load 1
- 90.2-90.2 %
- Motor type
- 132SB
- Net weight
- 178.0 lb
- Number of poles
- 2
- Power (P2) required by pump
- 7.5 kW
- Power factor 1
- 0.88-0.82
- Product family
- CRN 5-SF
- Pump
- 7.5 kW
- Pump housing
- Stainless steel
- Pump speed on which pump data are based
- 3525 rpm
- Pump version
- S
- Pumped liquid
- Water
- Rated current
- 13
- Rated flow
- 30.4 US gpm
- Rated head
- 602.4 ft
- Rated power - P2
- 7.5 kW
- Rated speed
- 3500-3530 rpm
- Rated voltage
- 3 x 400-480/690 V
- Real Time
- Delivery date to be confirmed on Sales Order Update with real time availability and Net price
- Rubber
- E
- Selected liquid temperature
- 68 °F
- Size of connection
- DN 32
- Stages
- 24
- Starting current
- 750-1050 %
- Type
- 132SB
- Type of connection
- DIN / ANSI / JIS
- Version
- S

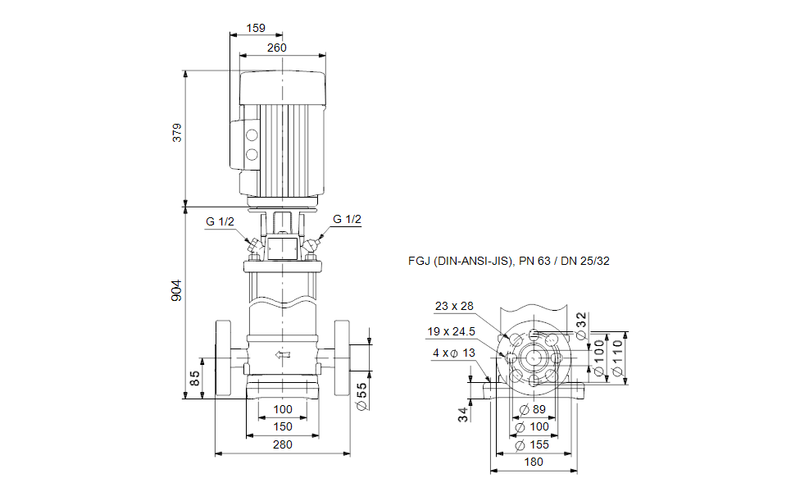

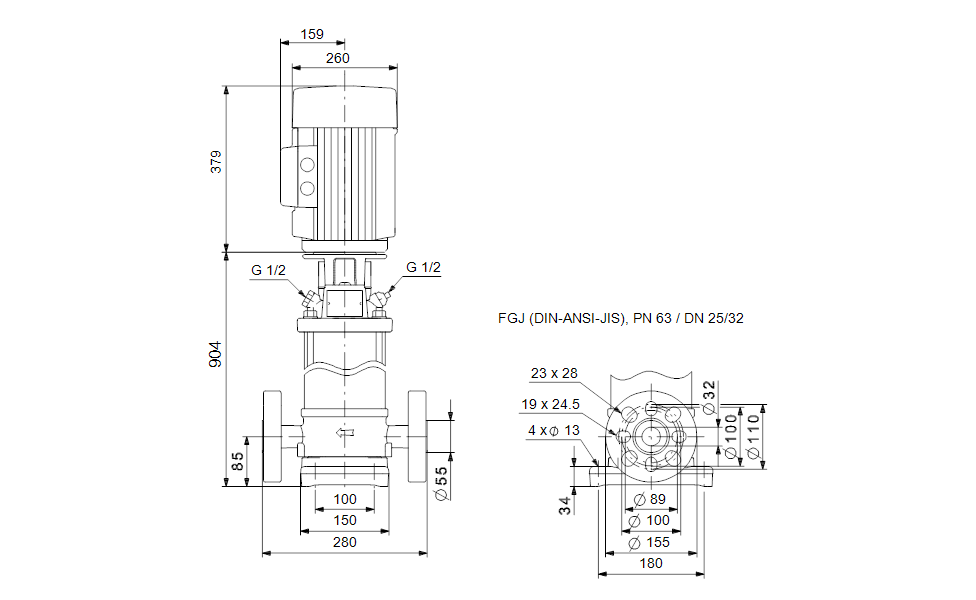

Dimensional Drawing
Wiring Diagram
